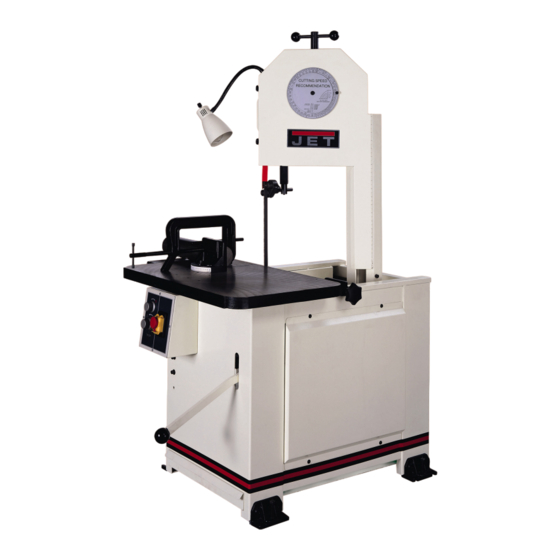

- Page 1 Operating Instructions and Parts Manual Self-Feed Vertical Band Saw Models: VSF-14-1 and VSF-14-3 WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Ph.: 888-594-5866 Fax: 800-626-9676 www.wmhtoolgroup.com Part No. 5518247 Revision A6 09/03 Copyright WMH Tool Group...
-
Page 2: Warranty And Service
Warranty and Service WMH Tool Group warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Repair Stations located throughout the United States can provide quick service or information. -
Page 3: Table Of Contents
Table of Contents Warranty and Service ..............................2 More Information ..............................2 WMH Tool Group Warranty ............................ 2 Table of Contents ................................. 3 Table of Figures ................................4 Warnings..................................5 How The VSF-14 Band Saw Operates........................7 Introduction .................................. 8 Specifications................................ -
Page 4: Table Of Figures
Table of Figures Figure 1: How the VSF-14 Band Saw Operates....................7 Figure 2: Specifications............................8 Figure 3: Component Descriptions and Locations ...................9 Figure 4: Recommended Main Power Supply Wire Sizes................11 Figure 5: Belt Speed/Position Relationship ....................12 Figure 6: Blade Tracking Adjustment ......................16 Figure 7: Guide Bearing Adjustment ......................17 Figure 8: Chip Brush and Chip Scraper Locations ..................18 Figure 9: Exploded View of the VSF-14 Saw Frame..................24... -
Page 5: Warnings
5. Do not use this band saw for other than its intended use. If used for other purposes, WMH Tool Group disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. -
Page 6: Save These Instructions
Warnings (cont.) 23. Maintain a balanced stance at all times so that you do not fall or lean against the saw blade or other moving parts. 24. Use the right tool. Don’t force a tool or attachment to do a job for which it was not designed. -
Page 7: How The Vsf-14 Band Saw Operates
How The VSF-14 Band Saw Operates Figure 1: How the VSF-14 Band Saw Operates... -
Page 8: Introduction
This machine has been designed and constructed to provide years of trouble free operation if used in accordance to instructions set forth in this manual. If there are any questions or comments, please contact either your local supplier or WMH Tool Group. WMH Tool Group can also be reached at our web site: www.wmhtoolgroup.com. -
Page 9: Description
Description Figure 3: Component Descriptions and Locations 1. CONTROL PANEL – The operating controls for the band saw are located on the base at the front of the machine. 1.1. ON/OFF SWITCH – Turns the machine on or off. 1.2. SAW FRAME RELEASE KNOB – Turning this knob counterclockwise unlocks the release lever (Item 2). -
Page 10: Installation
4. UPPER BLADE WHEEL BLADE TRACKING ADJUSTMENT (See Blade Tracking Adjustments) – If your saw should get out of adjustment and the blade runs off the wheel or runs back against the lip, loosen the two bottom bolts on the upper wheel slide. Turn the set screw in or out to make the blade run approximately 1/32”... -
Page 11: Cleaning
2. Place a warning placard or tag on the service panel to prevent accidental electrical shock. 3. When installing the motor power cord into a receptacle, make sure the plug is compatible with the receptacle. 4. When using hard-wired connections, connect the wires as shown in the wiring diagram. -
Page 12: Changing Blade Speeds
Changing blade speeds: 1. Disconnect the electrical power from the band saw branch circuit to prevent accidental motor start-up. 2. Place the saw frame in the rearmost position by pushing down on the saw frame release lever (Figure 3 Item 2) and lock it by turning the saw frame release knob (Figure 3 Item 1.2) clockwise. -
Page 13: Blade Break-In Procedures
1. To remove the blade, place the saw frame in the rearmost position by pushing down on the saw frame release lever (Figure 3 Item 2) and lock it by turning the saw frame release knob (Figure 3 Item 1.2) clockwise. 2. -
Page 14: Evaluating Cutting Efficiency
the feed rate. The control cylinder offers no resistance when the saw frame is moved backward. A knob on the control panel controls the rate at which the saw frame moves forward. The control knob (needle valve) controls the rate at which the hydraulic fluid is released from the hydraulic cylinder. -
Page 15: Starting The Saw
1. Place the work piece in the vise and clamp tightly. 2. Loosen the locking knob on the back of the guide bracket (Figure 3 Item 5). 3. Slide the guide bracket to the desired position. 4. Tighten the locking knob to secure the guide bracket. Starting the Saw Never operate the saw without the blade covers in place. -
Page 16: Service And Maintenance
Service and Maintenance Adjustments The efficient operation of the band saw is dependent upon the condition of the saw blade. If the performance of the saw begins to deteriorate, the first item that you should check is the blade. If a new blade does not restore the machine’s cutting accuracy and quality, refer to the troubleshooting guide (or the blade manufacturer’s guide) for conditions to consider and adjustments that can be made to increase the life of the blade. -
Page 17: Blade Guide Bearing Adjustment
Keep your fingers clear of the blade and wheel to avoid injury. 6. Turn the setscrew to stop the motion of the blade on the wheel as it gets closer to the wheel shoulder. Put a six-inch length of paper between the blade and the wheel. -
Page 18: Cleaning
Cleaning 1. Clean off any oil and grease on the machine surfaces. 2. After cleaning, coat the machined surfaces of the band saw with medium consistency machine oil. Reapply the oil coating at least every six months. 3. Clean up accumulated saw cuttings after use. Make sure the lead screw and the rapid nut are kept free from saw cuttings and other material that would cause damage. -
Page 19: Blade Guide Bearing Replacement
Disconnect the band saw from its electrical power source. 1. Remove the two screws and washers holding the brush or scraper on. 2. Remove the worn brush or scraper. 3. Install the replacement brush or scraper. 4. Install the two screws and washers. 5. -
Page 20: Replacing The Drive Wheel (Lower Wheel)
Replacing the Drive Wheel (Lower Wheel) Disconnect the band saw from its electrical power source. 1. Remove the saw blade. (Refer to Blade Removal and Installation). 2. Loosen the setscrew in the wheel hub. 3. Pull the wheel from the speed reducer shaft. 4. -
Page 21: Troubleshooting
Troubleshooting Problem Probable Cause Suggested Remedy Excessive Blade 1. Material is loose in the 1. Clamp work securely. Breakage vise. 2. Incorrect speed or feed. 2. Check the Machinist’s Handbook for the speed/feed appropriate for the material being cut. 3. Blade pitch is too coarse 3. - Page 22 Troubleshooting Problem Probable Cause Suggested Remedy Unusual Wear On 1. Blade guides are worn. 1. Replace the blade guides. Side/Back Of Blade (See Setting the Blade Guide Bracket). 2. Blade guide bearings are 2. Adjust the blade guide not adjusted. bearings.
-
Page 23: Replacement Parts
Replacement Parts This section provides exploded view illustrations that show the replacement parts for the Models VSF-14-1 and VSF-14-3 Self-Feed Vertical Band Saw. Also provided are parts listings that provide part numbers and descriptions. The item numbers shown in the exploded views match the item numbers in the parts listing. -
Page 24: Figure 9: Exploded View Of The Vsf-14 Saw Frame
Figure 9: Exploded View of the VSF-14 Saw Frame... -
Page 25: Parts List For Vsf-14 Saw Frame
Parts List for VSF-14 Saw Frame Item Part No. Description Size Qty. 5519711 Blade Tension Knob 5519712 Blade Tension Handle 5519718 Flat Washer 5/8” x 40 x T3 5519713 Spring 5519714 Screw Rod 5519715 Bracket TS-0680042 Flat Washer 3/8” x 23 x T2 TS-0209051 Socket Head Cap Screw 3/8-16 x 1-1/2”... - Page 26 Parts List for VSF-14 Saw Frame Item Part No. Description Size Qty. 5519767 Drive Motor Pulley TS-148201 Hex Cap Screw M6 x 10 5519768 Motor 1HP, 1 Phase 5521706 Motor 1HP, 3 Phase 5519769 5 x 5 x 40L TS-0570032 Hex Nut, Full 3/8-24 TS-0720091...
- Page 27 Parts List for VSF-14 Saw Frame Item Part No. Description Size Qty. 5519792 Idler Wheel Assembly 107* 5519795 Idler Wheel Shaft 5519796 Work Light 5519797 Door Handle 1/4” TS-0680021 Flat Washer 1/4” TS-0570032 Hex Nut, Full 3/8-24 TS-0680042 Flat Washer 3/8”...
-
Page 28: Figure 10: Exploded View Of The Vsf-14 Base
Figure 10: Exploded View of the VSF-14 Base... -
Page 29: Parts List For The Vsf-14 Base
Parts List for the VSF-14 Base Item Part No. Description Size Qty. 5519805 C-clamp Vise 5519806 C-clamp Knob 5519807 C-clamp Handle 5519808 Lead screw 5519809 Spring 5519810 Ball OD = 5mm 5519811 Shaft 5519812 Pivot Pin 5519813 Vise Base 5519814 Vise Bracket TS-0208061 Socket Head Cap Screw... - Page 30 Parts List for the VSF-14 Base Item Part No. Description Size Qty. TS-0070071 Hex Cap Screw 1/2-13 x 2-1/2” TS-0561051 Hex Nut, Full 1/2-13 TS-0680042 Flat Washer 3/8” TS-0570032 Hex Nut, Full 3/8-24 5519845 Weight Mounting Bracket TS-0208041 Socket Head Cap Screw 5/16-18 x 3/4”...
-
Page 31: Parts List For The Vsf-14 Gear Box Assembly
Figure 11: Exploded View of the VSF-14 Gear Box Assembly Parts List for the VSF-14 Gear Box Assembly Item Part Number Description Size Qty. 52-1 5519744 Gear Box 52-2 BB6204Z Bearing 6204Z 52-3 5519745 Oil Seal TC20 x 32 x 7B 52-4 5519746 O-Retainer Ring... -
Page 32: Parts List For The Vsf-14 Bearing Shaft Assembly
Parts List for the VSF-14 Gear Box Assembly Item Part Number Description Size Qty. 5519760 Oil Seal 52-23 TC38 x 52 x 7B 52-24 5519761 Main Oil Seal Cover 52-25 5519762 8 x 7 x 30 52-26 5519763 Socket Head Cap Screw 3/16”... -
Page 33: Parts List For The Vsf-14 Smooth Wheel Assembly
Figure 13: Exploded View of the VSF-14 Smooth Wheel Assembly Parts List for the VSF-14 Smooth Wheel Assembly Item Part Number Description Size Qty. 44-1 5519738 Smooth Wheel 44-2 5519739 Bearing 69-1 5519774 Smooth Wheel 69-2 BB6201Z Bearing 6201Z Figure 14: Exploded View of the VSF-14 Idler Wheel Parts List for the VSF-14 Idler Wheel Assembly Item Part Number... -
Page 34: Electrical Schematics
Electrical Schematics (115 Volts, Single Phase) 115 Volts, Single Phase (230 Volts, Single Phase) 230 Volts, Single Phase Figure 15: Electrical Schematics for Single Phase Motor... -
Page 35: 230 Volts, Three Phase
(230 Volts, Three Phase) 230 Volts, Three Phase (460 Volts, Three Phase) 460 Volts, Three Phase Figure16: Electrical Schematics for Three-Phase Motor... - Page 36 WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Ph.: 847-851-1000 Fax: 800-626-9676 www.wmhtoolgroup.com Copyright WMH Tool Group...
