Rear Vent—Vertical Termination—Three Vertical Elbows
12 ft (3.66 m) min.
60 ft (18.29 m) max.

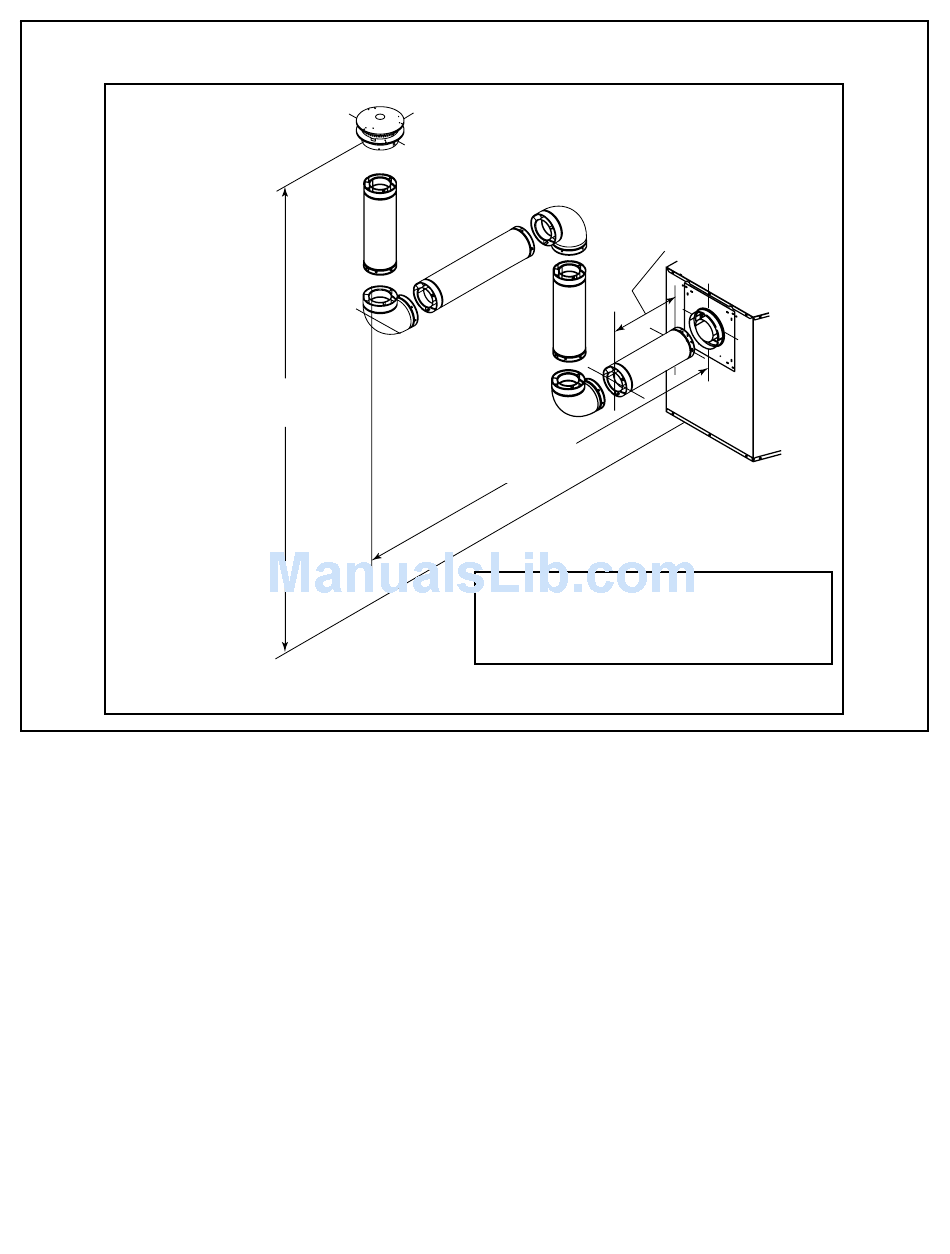

Figure 5.16 Vertical Termination - Three Vertical Elbows
Maximum horizontal run is
100% of vertical, but can-
not exceed 26 ft (7.92 m).
Heatilator • Caliber CNXT Series • 4047-132 Rev P • 11/07
0 min.
6 ft (1.83 m) max.
Note: If installing a vertical vent/termination
run off the rear of the appliance, the vertical
termination baffl e supplied with the appliance
may be used. See Section E.
23
