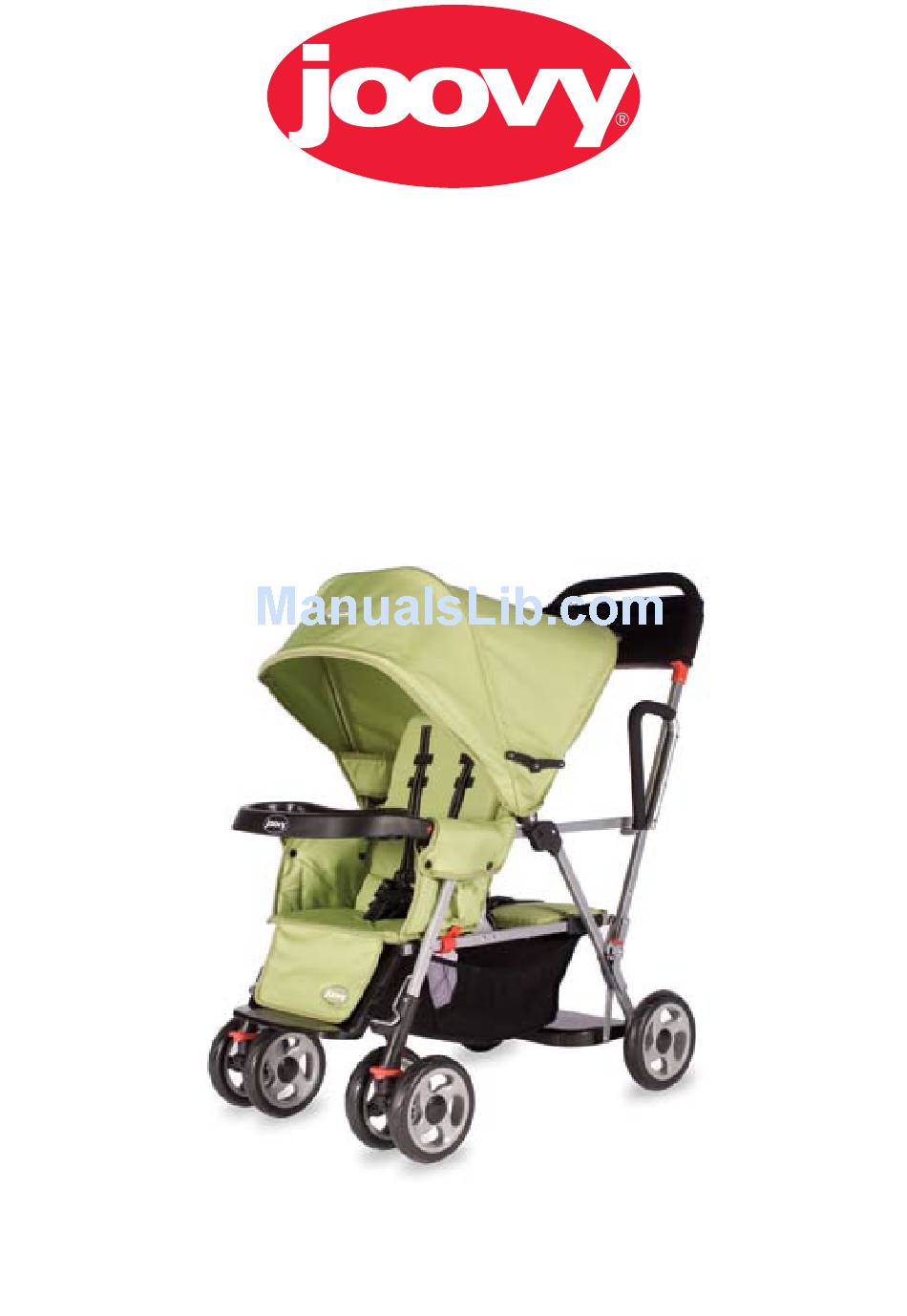

- Page 1 Caboose Ultralight Instruction Manual 45X Series Patent No. 5,622,375 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 Email: customerservice@joovy.com • Web Site: www.joovy.com...
- Page 2 • Never allow a child to step on the footrest to get into or out of the stroller. • Do not use the stroller on stairways or escalators. • The included parent organizer is for use ONLY on the Joovy Caboose stroller. DO NOT use it on other stroller models.
-
Page 3: Unpacking The Product
• Carefully remove stroller and all parts from the box and plastic bag. • Identify the parts (stroller, front wheels (2), rear wheels (2), canopy, parent organizer, tray, car seat carrier support, rear axle, small washer (2), large washer (4), spring washer (2), snap pin (2), hub cap (2), red plastic cap, and documents) with the pictures in Figures 1a and 1b. -
Page 4: Unfolding The Stroller
See Figure 2. • Lift up slightly on the handle of the stroller. Then place one foot onto the rear platform and pull up and back on the handle until both side frame bars snap into their locking positions in the frame. -
Page 5: Installing The Front Wheels
• Push the axle across and into the axle hole on the other side of the stroller. NOTE: you may need to guide the axle into this hole. • Slide one small washer over one end of the axle. • Next place a rear wheel over the the small washer. - Page 6 • Line up the male fittings on the canopy with the female fittings near the center of the stroller and push downward until the fittings snap into place. See Figure 7. Pull upward on the canopy sides to be sure both are snapped securely in place.
- Page 7 The child tray is not a restraint device. Always secure your child with the seat belt. Never lift the stroller by the child tray. Use caution when attaching the child tray when there is a child seated in the stroller.
-
Page 8: Rear Wheel Brakes
Rear Wheel Brakes • Before placing any child into the stroller or removing them from the stroller, be certain that the rear wheel brakes are engaged. • To engage the rear wheel brakes, push down on the brake lever located on each rear wheel. - Page 9 • Unlatch the waist/shoulder buckle by squeezing the latch releases on both sides of the buckle and removing the male ends of each buckle. • Carefully place the child in the stroller seat with the shoulder straps over their shoulders and chest. Then place the crotch strap between the child’s legs.
-
Page 10: Seatback Positioning
LOWEST position. See Figure 21. • To recline the seat, pull the bar on the rear of the seat toward the rear of the stroller and rotate the seatback down until this bar is again in its LOWEST position. See Figure 22. -
Page 11: Storage Basket
Storage Basket Please note there is elastic on the basket sides for easy access, or, you can access the storage basket by sliding the rear bench seat forward or backward. The maximum weight that can be carried in the storage basket is 5 pounds. Excessive weight may result in a hazardous unstable condition. - Page 12 • Always check frequently to be sure that the restraining straps are tight across the infant carrier but away from the child’s neck. • When you remove the infant carrier from the stroller, always replace the two restraining straps back into their side pouches.
-
Page 13: Important Note
When using your stroller as an infant car seat carrier, the following are the compatible infant car seat models that the Caboose Ultralight will accommodate: • Baby Trend® Latch-Loc and Flex-Loc • Britax® Companion™ • Chicco® Key Fit Car Seat •... -
Page 14: Folding The Stroller
• While these mechanisms are in the upward position, push forward on the stroller using the handle bar. • Once the stroller begins to fold, push the handle all the way forward and down until the stroller is completely folded. See Figure 29. -
Page 15: Maintenance
Only original manufacturer’s components should be used. If needed, please contact Joovy at our toll-free phone number. Fabric fading may occur if the stroller is left in direct sunlight for long periods of time. When not in use, store the stroller out of direct sun. - Page 16 SATISFACTION GUARANTEED We want you to be completely satisfied with your purchase of this product. Should you experience any difficulty in assembling or using this product, or if you have any questions, please contact our Customer Service Department at (877) 456-5049 between the hours of 8:30 am and 5:00 pm Central Time. Reversible two-sided seat pad.
- Page 17 Custom rain cover for both children Zippered button hole pass through for front seat Custom sun filter for both children’s comfort Zippered button hole pass through for front seat Protects from insects Caboose Ultralight Instruction Manual Page 16...
- Page 18 Please log onto www.joovy.com to register your new Joovy product. Look for these other Joovy products Caboose Ultralight Instruction Manual Page 17...
- Page 19 Caboose Ultralight Instruction Manual Page 18...
- Page 20 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 Email: customerservice@joovy.com • Web Site: www.joovy.com ©Joovy 2008 • Document Version 1.1...
