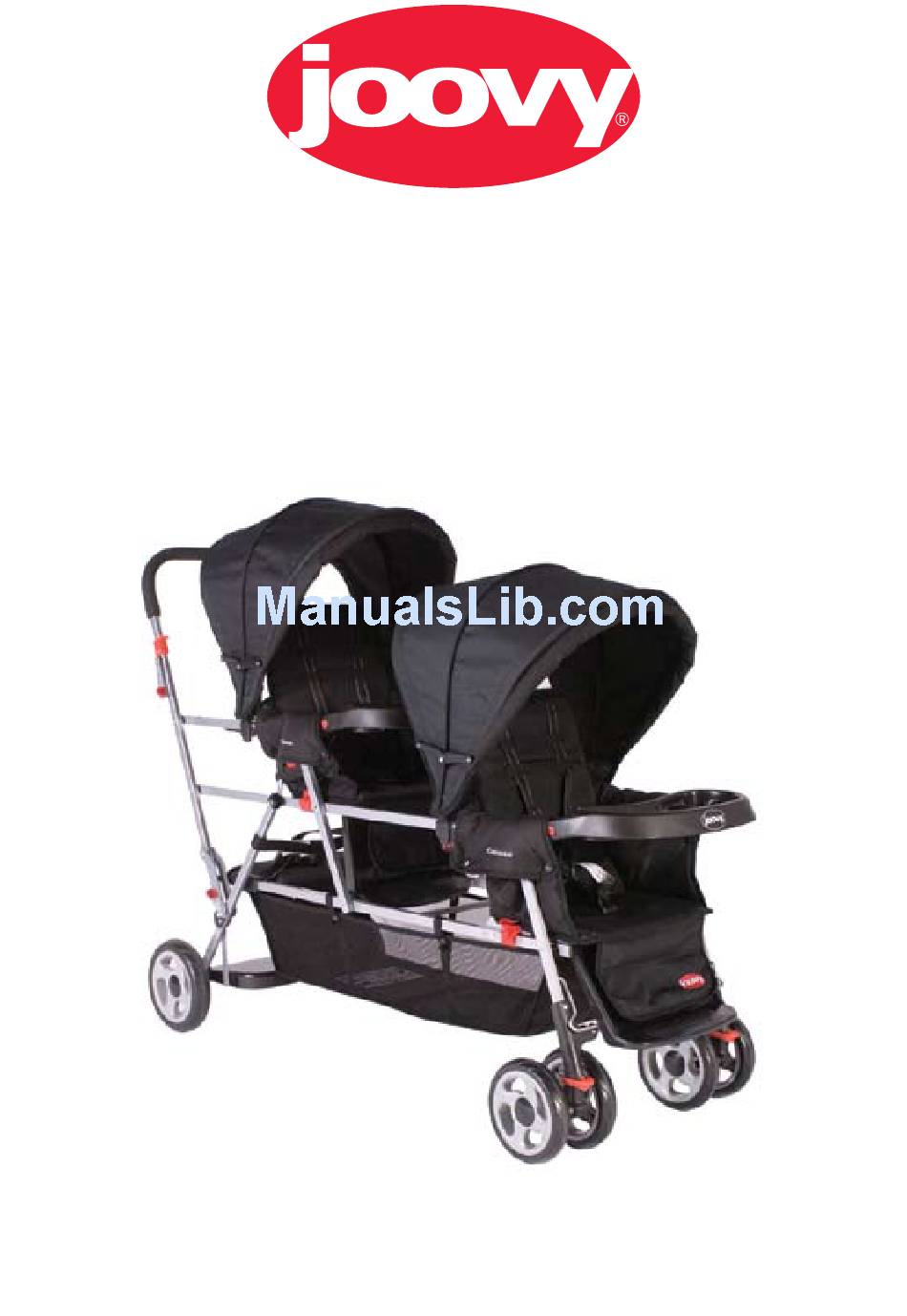

- Page 1 The Big Caboose Stand-On Triple Instruction Manual 43X Series Patent No. 5,622,375 Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 E-mail: customerservice@joovy.com • Website: www.joovy.com...
- Page 2 • Keep all small parts out of reach of children while assembling the stroller. • Be certain that the stroller is fully opened, both safety latches are in position, and the wheel brakes are on before allowing children near the stroller.
-
Page 3: Unpacking The Product
• Carefully remove stroller and all parts from the box and plastic bag. • Identify the parts (stroller, front wheels (2), rear wheels (2), canopy (2), tray (2), car seat carrier support (2), rear axle, small washer (2), large washer (4), spring washer (2), snap pin (2), hub cap (2), red plastic cap, and documents) with the pictures in Figures 1a and 1b. -
Page 4: Unfolding The Stroller
See Figure 2. • Lift up slightly on the handle of the stroller. Then place one foot onto the rear platform and pull up and back on the handle until both side frame bars snap into their locking positions in the frame. -
Page 5: Installing The Front Wheels
• Push the axle across and into the axle hole on the other side of the stroller. NOTE: you may need to guide the axle into this hole. • Slide one small washer over one end of the axle. • Next place a rear wheel over the the small washer. - Page 6 Installing and Operating the Canopy The following instructions apply to BOTH Canopies • To attach the canopy, position the canopy on the stroller with the thick padded edge toward the front of the stroller. • Line up the male fittings on the canopy with the female fittings on each side of the seat and push downward until the fittings snap into place.
- Page 7 • To attach the front tray, line up the female fittings on the tray with the male fittings on each side of the stroller just in front of the seat and push inward until the fittings snap into place. See Figure 11.
-
Page 8: Rear Wheel Brakes
Rear Wheel Brakes • Before placing any child into the stroller or removing them from the stroller, be certain that the rear wheel brakes are engaged. • To engage the rear wheel brakes, push down on the brake lever located on each rear wheel. See Figure 13. - Page 9 • Unlatch the waist/shoulder buckle by squeezing the latch releases on both sides of the buckle and removing the male ends of each buckle. • Carefully place the child in the stroller seat with the shoulder straps over their shoulders and chest. Then place the crotch strap between the child’s legs.
-
Page 10: Seatback Positioning
LOWEST position. See Figure 21. • To recline the seat, pull the bar on the rear of the seat toward the rear of the stroller and rotate the seatback down until this bar is again in its LOWEST position. See Figure 22. -
Page 11: Storage Basket
Storage Basket The maximum weight that can be carried in the storage basket is 10 pounds. Excessive weight may result in a hazardous unstable condition. You can access the storage basket by sliding the ear bench seat forward or backward. Using the Rear Bench Seat •... - Page 12 • Always check frequently to be sure that the restraining straps are tight across the infant carrier but away from the child’s neck. • When you remove the infant carrier from the stroller, always replace the two restraining straps back into their side pouches.
- Page 13 WARNING ALWAYS install the infant carrier so that the child is facing toward the rear (handle) of the stroller with the restraining straps secured. ALWAYS position the infant carrier so that it is securely placed down inside the Car Seat Carrier Support frame.
-
Page 14: Folding The Stroller
Folding the Stroller • Keep children away from stroller while folding. • Remove any infant carrier that has been installed on the stroller. Note that the stroller can still be folded with the car seat carrier support in place. • Position the stroller with the handle bar closest to you. -
Page 15: Maintenance
Only original manufacturer’s components should be used. If needed, please contact Joovy at our toll-free phone number. Fabric fading may occur if the stroller is left in direct sunlight for long periods of time. When not in use, store the stroller out of direct sun. - Page 16 SATISFACTION GUARANTEED We want you to be completely satisfied with your purchase of this product. Should you experience any difficulty in assembling or using this product, or if you have any questions, please contact our Customer Service Department at (877) 456-5049 between the hours of 8:30 am and 5:00 pm Central Time. Reversible two-sided seat pad.
- Page 17 Custom rain cover for both children Zippered button hole pass through for front seat Custom sun filter for both children’s comfort Zippered button hole pass through for front seat Protects from insects The Big Caboose Stand-On Triple Instruction Manual Page 16...
- Page 18 Please log onto www.joovy.com to register your new Joovy product. Look for these other Joovy products Page 17 The Big Caboose Stand-On Triple Instruction Manual...
- Page 19 Page 18 The Big Caboose Stand-On Triple Instruction Manual...
- Page 20 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774 E-mail: customerservice@joovy.com • Website: www.joovy.com ©Joovy 2008 • Document Version 1.1...
