3.2

Parts Layout

This section explains the layout of main components of the equipment.
[Lower base unit]
Eject roller assy
Diselectrification bar
Spacer bearing L
Lower base unit
Stacker cover assy
41605601TH Rev.2
Stacker cover assy
Back-up roller
Transfer roller
Sub CH-M
LED head
View A

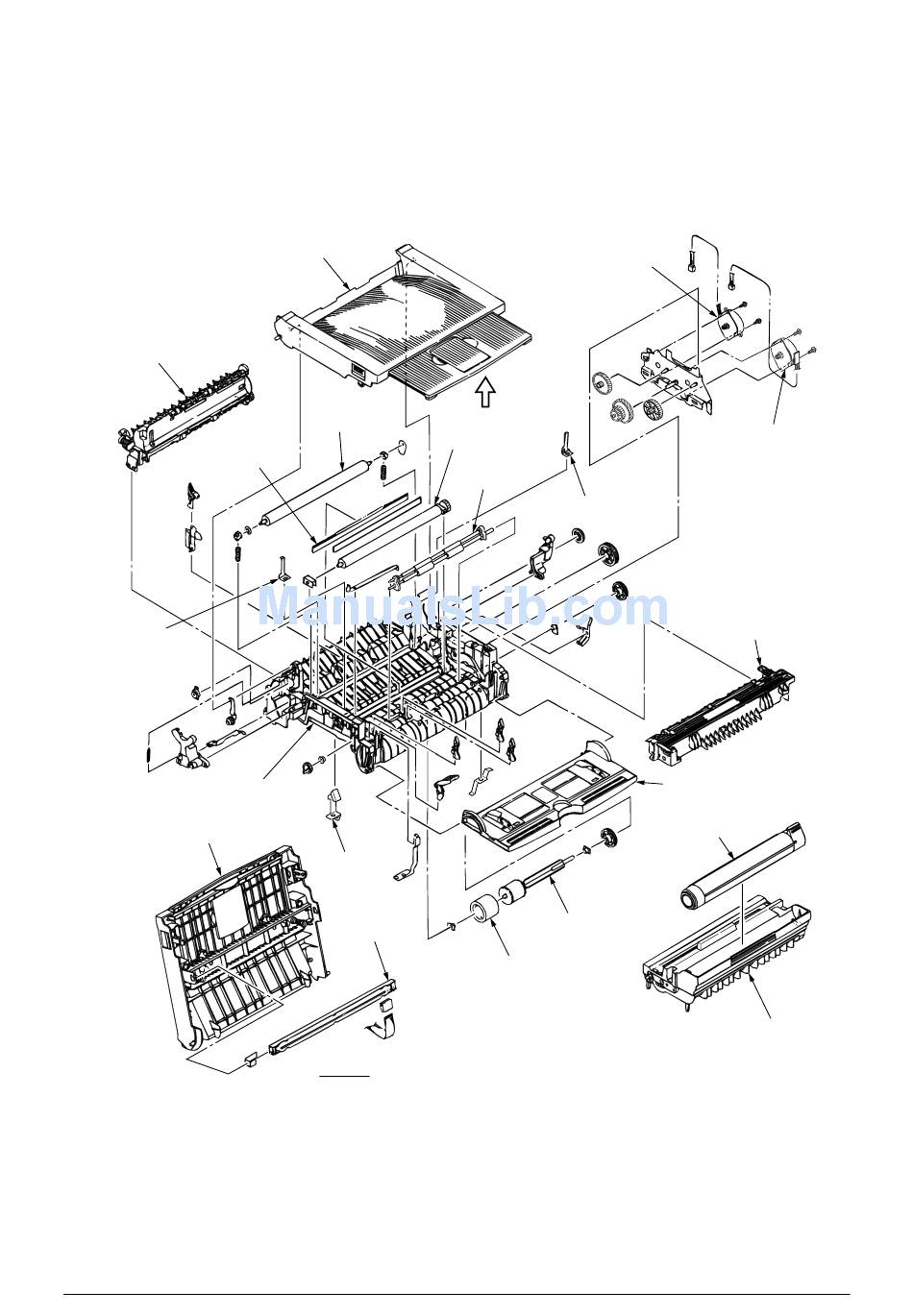

Figure 3-1
Pulse motor
(main/drum)
View A
Registration
roller Assy
Spacer bearing R
Hopping roller shaft
Hopping roller rubber
Pulse motor
(registration)
Fusing unit
Manual feed guide assy
Toner cartridge (Type 5)
(consumable)
Image drum unit (Type 5)
(consumable)
