Memoq MQ-71 Owner's Manual

Digital voice recorder & pen
Hide thumbs
Table of Contents

Advertisement

Quick Links

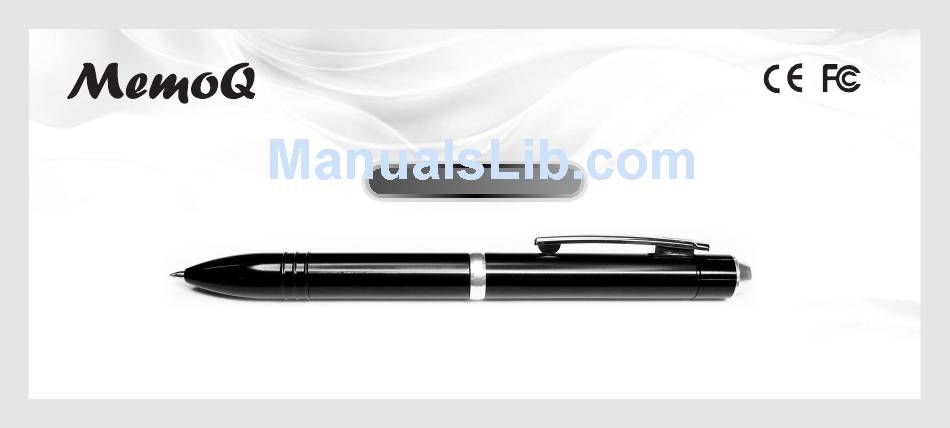

Digital Voice Recorder & Pen
Made in Korea
Model : MQ-71/MQ-72
Owner's Manual
Thank you for purchasing this product. Before use, read this manual and understand its functions for appropriate use.
After reading this manual, be sure to keep it for reference and record your purchasing date and place on the warranty card.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MQ-71 and is the answer not in the manual?

Questions and answers

Related Manuals for Memoq MQ-71

Summary of Contents for Memoq MQ-71

  • Page 1 Digital Voice Recorder & Pen Made in Korea Model : MQ-71/MQ-72 Owner’s Manual Thank you for purchasing this product. Before use, read this manual and understand its functions for appropriate use. After reading this manual, be sure to keep it for reference and record your purchasing date and place on the warranty card.

  • Page 2: Table Of Contents

    Table of contents Name of each part........3 Power off ............8 Caution ............4 Check the remainder of the charger...8 Before use (Charging) ........4 Manager program installation....9~13 Record............5 Use as a ball point pen......14 Stop recording ..........5 How to use manager program....14~16 Play ............6 Specification ..........17 File auto search..........6...

  • Page 3: Name Of Each Part

    Name of each part 1. Main unit Core of ball point pen Ink tube part Rotating part Main body Recording switch Charging indicator lamp Main body of remote controller Earphone 2. Wire remote controller Plug Mode button Stop(Power off) button Play/Pause button Volume control Lock switch...

  • Page 4: Caution

    Caution 1) We don’t take any responsibility for loss of recording due to use of this product, after sales service and others. 2) We don’t take any responsibility for any claim raised due to use of this product or a third party. 3) Disassembly, modification, impact or use of this product in low or high temperature or humid place may cause malfunction.

  • Page 5: Record

    If the memory is not sufficient or the number of files is 99, the warning sound (beep sound) rings for 3 seconds and stop. Recordable hour for each model (For Recording Mode Installation, see p.16) Model MQ-71 MQ-72 Memory 128MB 256MB XHQ(Extra High Quality) Approx.

  • Page 6: Play

    Play Deactivate the lock switch of the remote controller and adjust the volume adjuster to Max.. Set the recording switch ( ) to Stop position, and connect the wire remote controller plug to the earphone terminal of the main body and press Play/Pause [ ] button on the remote controller to play.

  • Page 7: Move And Play For Each Search Mode

    Move and play for each search mode Press Previous[ ] and Next[ ] button shortly while playing, and move to previous and next recording depending on the search mode setting(Move file/Search 1/Search 2) and play. Use the search function properly to search the content of file. If the mode is set to “Move file”, whenever you press Previous and Next button, you can move to previous file and next file.

  • Page 8: Power Off

    Power off While recording, switch the recording switch to Stop position to turn off the power and while playing, press Stop[ ] button on the remote controller or remove the plug to turn off the power. Check the remainder of the charger This unit contains a charger.

  • Page 9: Manager Program Installation

    USB port to PC and to move and save the saved contents to the voice recorder. 1) Insert Manager program CD into CD-ROM of your PC. 2) Connect USB cable to USB port of your PC and the earphone terminal of the voice recorder(MemoQ)
  • Page 10 3) When standing by, the hardware wizard window appears on 4) Select CD-ROM drive (CD inserted drive) as shown in the the computer screen. Select “Install from a list or specific picture and click “Browse” button. location [Advanced]” as shown in the picture and click “Next >”...
  • Page 11 5) If the window appears as shown in the picture, click “CD- 6) As shown in below picture, click driver directory and click ROM” <CD inserted drive>. “OK” button. If PC OS is Win98SE, select D:\Driver\Win98 folder.
  • Page 12 7) Click “Next >” button in below picture. 8) When the drive installation is completed, click “Finish” button in below picture.
  • Page 13 9) Copy the manager exe file in the CD in CD-ROM to the 10) Double click and execute the voice manager program on background screen of your PC. the background screen. 11) Manager program is executed and the window appears. 12) Disconnect USB cable of the voice recorder and reconnect...

  • Page 14: Use As A Ball Point Pen

    Use as a ball point pen How to use manager program Warning • Hold the body ( ) of the main body and turn the rotating part( ) to left/right and the tip of balls pen comes out or in. Do not disconnect USB cable while deleting file, saving into •...
  • Page 15 1. Description of button and indicated function. Find folder Upper folder Select View folder and file View window again VOS(Auto Voice Recording) ON/OFF Initialize the memory of the voice recorder Select recording mode Indicate the remaining time of the voice recorder Charging status indicator Folder window of PC Folder window of the voice recorder...
  • Page 16 4. Play the file from PC 8. Recording mode setting Double click the voice recording file saved in PC to play. Recording mode is a function selecting the sound quality depending on user’s taste. Click XHQ(Extra High Quality)/ 5. Format (initialize) the memory of the voice HQ(High Quality)/LP(Long Play) in Mode of the manager window “...

  • Page 17: Specification

    Specification Warranty policy Recordable hour for each model Free warranty period is 1 year after purchase and if malfunction occurs in Model MQ-71 MQ-72 normal condition according to the Memory 128MB 256MB caution in the manual, the sales agent XHQ(Extra High Quality) About 4.5 hours...

  • Page 18: Fcc Caution

    FCC Caution Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designd to provide reasonable protection against harmful interference in a residential installation.

  • Page 19: Warranty Card

    Warranty card Product name Digital voice recorder( Model name Charged service Date of purchase - Malfunction caused by careless Place of purchase handling when using Purchasing price - Malfunction caused by user’s modification of the product Telephone number - Malfunction caused by act of god, Others such as fire, salt, flood, earthquake and etc.
  • Page 20 Made in Korea Digital Voice Recorder & Pen Model : MQ-71/MQ-72...

This manual is also suitable for:

Mq-72
