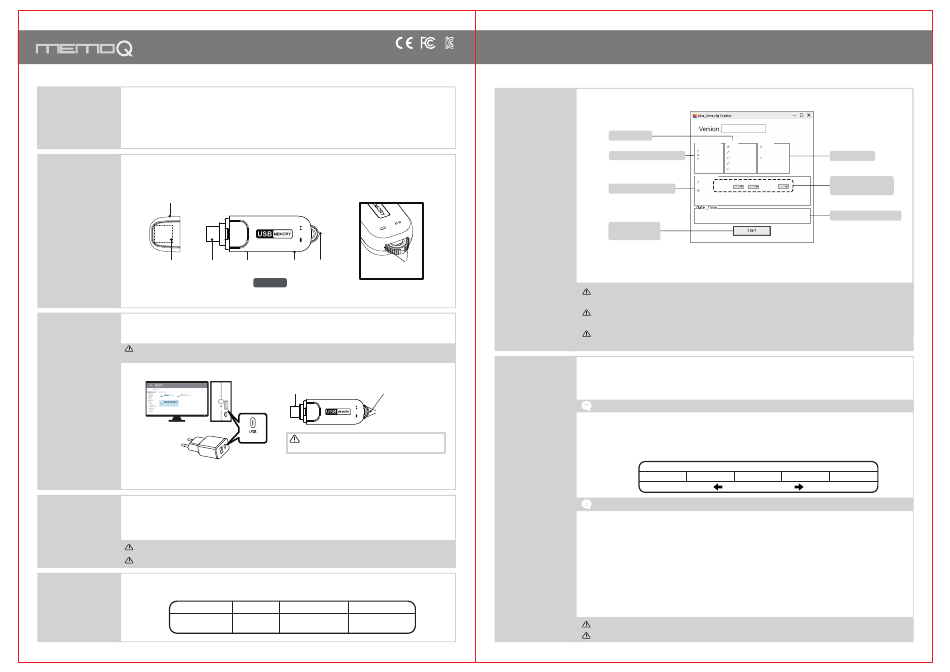

Memoq PBN-C320 User Manual

PBN-C320
USB type-C Voice Recorder
* We are not responsible for the loss of recordings caused by wrong usage, A/S, other reasons.
* Disassembly, remodeling, impact, the usage in place of low temperature, high temperature, high humidity
Cautions
can be the cause of failure.
in use
* Please save the important recordings into PC frequently.
* The contents of the User's manual can be changed without notice to improve functionality and performance.
ⓐUSB Cap ⓑUSB Plug ⓒOperation Indicator
ⓖMagnet
ⓐ
Name of
each part
ⓖ ⓑ
*The product has a built-in battery and can be used after charging.
*Charging starts when the product's(ⓑ)USB Plug is connected to the PC's USB port or a charging adapter (optional)
Caution : Be sure to use a certified charging adapter (rated output DC5V/500mA or higher).
Damage to the product due to a defective charging adapter may result in paid repair.
Charging
*During charging, the(ⓒ)Operation indicator lights up, and when charging is completed, the(ⓒ)Operation indicator light flashes.
*If you keep the (ⓑ)Recording switch in state of STOP and connect it to the USB port on your PC,
it is recognized as a "Removable disk (MEMOQ)", and copy, movement, deletion, playback of file is possible.
Connecting
*For playback, please use the music playback software of PC.
PC USB
Caution : When you separate product from PC, please be sure to perform " hardware safety removal"
Caution : When you remove product from PC by force, fatal error on product can occur.
*When recording starts or the body is seperately from PC or USB adapter after charging,
the (ⓒ)Operation indicator will display LED, depending on the battery level.
Battery
remains
Operation indicator
indication
Battery remains
User's Manual
R-R-ESO-MQ-320
ⓓBody ⓔMicrophone ⓕRecording switch
ⓔ ⓓ ⓕ
ⓒ
MQ-C320
ⓑUSB Plug ⓕRecording switch
ⓒOperation indicator
(MQ-C320)
Caution: When connecting to USB, the
(ⓕ)Recording switch must be in a stop position.
Not turned on Blinking for 5 seconds Turn on for 5 seconds
Insufficient Normal Sufficient
0~30% 30~70% 70~100%
How to use
1. Connect a USB cable to the product's ⓔUSB terminal, connect it to the PC's USB port and run the "TIME SETUP" program
stored on the product.
VOS ON/OFF
(Basic setting : VOS Off)
Recording sound quality
(Basic setting : XHQ)
Scheduled recording
(Basic setting : Off)
Time setting
program DATE_TIME.CFG
creation button
2. After checking the settings according to the usage environment, click the "START" button.
3. If the "DATE_TIME.CFG" file is normally created in the product, disconnect the product from the USB port
to complete the setting.
Caution : The date and time set on the PC are displayed. If the date and time are displayed diffently
please check the PC settings.
Caution : If the product is not separated immediately after clicking the START button, a time error will
occur as much as the delayed time.
Caution : If the product is not separated from the PC after clicking the START button, the setting
will not be completed
1. MODE (Recording Quality)
* Recording sound quality setting.
· PCM(No compression : 705kbps/44.1kHz), XHQ(Ultra high sound quality : 128kbps/32kHz),
HQ(High sound quality : 64kbps/16kHz)
Tip : Higher recording quality improves sound quality, but increases memory and battery usage.
2. VOS LEVEL
* Set the volume required to resume recording from a pause during VOS recording.
· +2 Very sensitive(About 52dBA), +1 Sensitive (About 55dBA), 0 Normal (About 58dBA),
-1 Insensitive(About 61dBA), -2 Very insensitive(About 64dBA
+2
Detailed
(React to low sound)
explanation of
time setting
Tip : Change the VOS LEVEL setting after testing it according to the location and situation.
program
3. REC indicator
* Turn on or off the RED LED on the (ⓒ)Operation indicator during recording.
· On (During recording, the LED is displayed every 3 seconds)
· Off (During recording ,the LED is turned off)
4. Scheduled Recording
* Recording starts automatically once a day at a set time.
· Off, On (Scheduled recording is turned on/off)
· Start time : Time to start scheduled reccording (24-hour-system), Minute (0~55 minutes)
· Duration : Time to continue scheduled recording (1/2/5/10/20 hours)
Caution : PCM mode can't be selected during scheduled recording.
Caution : If the date and time settings are not correct, scheduled recording may malfunction.
V001
Mode (Record Quality) VOS Level REC lndicator
+2 On
PCM
+1
REC indicator
XHQ
0 Off
HQ
(Basic setting : On)
-1
-2
Schedule Recording
It is only displayed
hour minute hour
Off
Start Time : 13 : 45 Duration : 1
when it is 'ON'
On
Current date and time
2024-01-01 13:00:00
VOS LEVEL
+1 0 -1 -2
Microphone sensitivity (React to loud sound)
