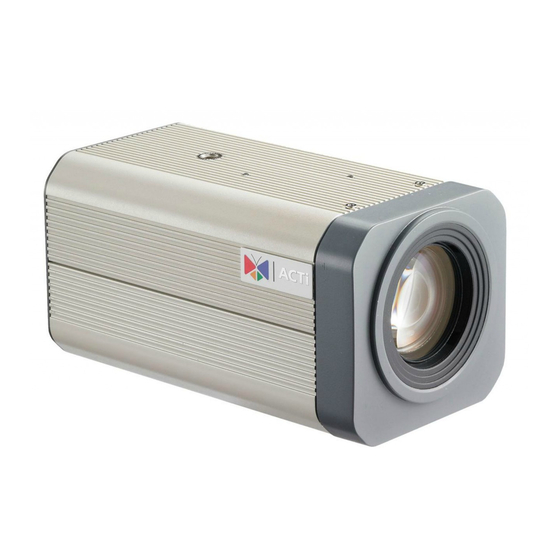

- Page 1 KCM-5311 35x Zoom H.264 2-Megapixel IP D/N PoE Box Camera Hardware User’s Manual (DC 12V / PoE) Ver. 2011/4/8...
-
Page 2: Table Of Contents
KCM-5311 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ............... 5 Safety Instructions ................6 Physical description ................8 Basic Connections ................11 Product Specification ..............12 Accessing Camera If you have DHCP server / router in your network: ...... 14 If you do NOT have DHCP server / router in your network: .. -
Page 3: Precautions
KCM-5311 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
KCM-5311 Hardware User’s Manual 1. Introduction Package Contents KCM-5311 Power Adaptor Product CD Terminal Blocks for Power, DI/O and Serial Port Accessories Warranty Card *For the mounting block, please attach the flat side towards the front of camera. There are two types of mounting blocks, and this device uses the black version. -
Page 5: Features And Benefits
KCM-5311 Hardware User’s Manual Features and Benefits This is a cutting edge network video surveillance camera. It can capture, compress and transmit real time video in excellent quality (15 FPS 2 Megapixel, 1920 x 1080). This camera is your best choice to build an intelligent IP surveillance system. -
Page 6: Safety Instructions
KCM-5311 Hardware User’s Manual Software Development Kit Support This IP Box Camera can be integrated or controlled by applications from third party software developers. Software developers can save considerable efforts by using our Streaming Library or ActiveX control. Safety Instructions Don’t use the power supply with other voltages... - Page 7 KCM-5311 Hardware User’s Manual 1) When the power-supply cord or plug is damaged 2) If liquid has been spilled, or objects have fallen into the video product. 3) If the video product has been directly exposed to rain or water.
-
Page 8: Physical Description
KCM-5311 Hardware User’s Manual Physical description 1) Digital Input / Output Used in applications like motion detection, event triggering, time lapse recording, alarm notifications, etc., the I/O terminal connector provides the interface to: • 2 Transistor Outputs - For connecting external devices such as relays and LEDs. - Page 9 KCM-5311 Hardware User’s Manual 2. Once cables are connected, push connector block into the terminal connector on camera. 3.3V FUSE 1A DC TO DC CONVERTER POWER INPUT EARTH GND DC POWER RELAY DEVICE DIODE CAMERA 2) Serial Port This port connects to serial devices via RS-485 or RS-232 protocols.
- Page 10 KCM-5311 Hardware User’s Manual Restore to Default Power On Complete On (3s) Off (about 15s) Off (10~15s) Stay On About 20 Seconds 5) Audio Input / Output The IP device supports audio input and output with earphone jack 6) Micro SD / Micro SDHC Card...
-
Page 11: Basic Connections
KCM-5311 Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: 1) Connect your IP Box Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 12: Product Specification
KCM-5311 Hardware User’s Manual Product Specification KCM-5311 • Device Device Type Box Camera Image Sensor Progressive Scan CMOS 1/4 “ (3.84 x 2.4 mm) Sensor Size Horizontal Resolution 956 TVL Day / Night Minimum Illumination Color: 0.1 lux at F1.65 (30 IRE, 2400°K); B/W: 0.05 lux at F1.65 (30 IRE, 2400°K) - Page 13 KCM-5311 Hardware User’s Manual • Alarm Alarm Trigger Video motion detection 3 regions Notify control center; Change camera settings; Command other devices; E-mail Alarm Response notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output •...
-
Page 14: Accessing Camera
KCM-5311 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Box Cam into the network and your IP device will acquire network address by itself. - Page 15 KCM-5311 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
- Page 16 KCM-5311 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
- Page 17 KCM-5311 Hardware User’s Manual 12. Wait for 30 seconds, and open IE again to connect to the IP. (In this example, 192.168.0.101). For the second device or more you add into the network, please type the correct IP. 13. Adjust the default Video setting by going to Video & Audio -> Media 1...
