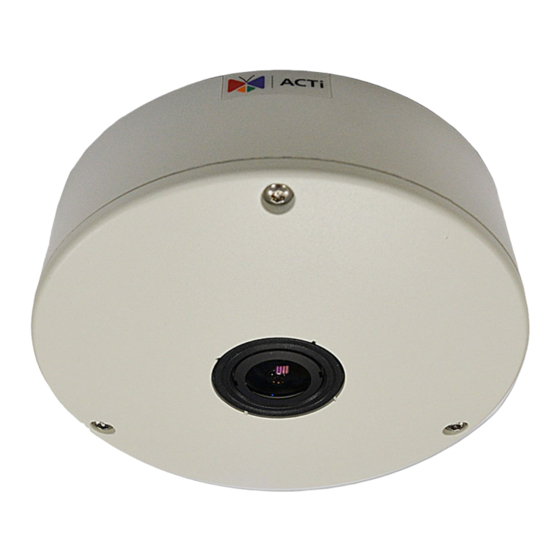

ACTi KCM-7911 Hardware User Manual

H.264 4-megapixel ip d/n poe outdoor hemispheric camera with advanced wdr (dc 12v / poe)
Hide thumbs Also See for KCM-7911:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
KCM-7911
H.264 4-Megapixel IP D/N PoE Outdoor Hem
ispheric Camera with Advanced WDR
(DC 12V / PoE)
Ver. 2012/8/9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KCM-7911 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACTi KCM-7911

Summary of Contents for ACTi KCM-7911

  • Page 1 KCM-7911 H.264 4-Megapixel IP D/N PoE Outdoor Hem ispheric Camera with Advanced WDR (DC 12V / PoE) Ver. 2012/8/9...

  • Page 2: Table Of Contents

    KCM-7911 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Product Specification ..............11 Installation Procedure Connecting the IP Hemispheric Camera ........13 Remove the cover ............... 13 Insert the cable ..............

  • Page 3: Precautions

    KCM-7911 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    KCM-7911 Hardware User’s Manual 1. Introduction Package Contents KCM-7911 Terminal Blocks for Power, DI/O, Audio, Drill Template Warranty Card Accessories www.acti.com...

  • Page 5: Features And Benefits

    KCM-7911 Hardware User’s Manual Features and Benefits This is a cutting edge network video surveillance camera. It can capture, compress and transmit real time video in excellent quality. This camera is your best choice to build an intelligent IP surveillance system.

  • Page 6: Safety Instructions

    KCM-7911 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 7 KCM-7911 Hardware User’s Manual this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

  • Page 8: Physical Description

    KCM-7911 Hardware User’s Manual Physical description Audio Input / Output DC 12v Power Input Ethernet Port Digital Input / Output Reset Button Micro SD / Micro SDHC Card Slot Power Button 1) DC 12V Power Input Connect DC power source to the terminal block. The wire with white dashed lines is the live wire, which should connect to the 12V pin.
  • Page 9 KCM-7911 Hardware User’s Manual 2) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). 3) Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.)
  • Page 10 KCM-7911 Hardware User’s Manual - Digital Input - An alarm input for connecting devices that can toggle between an open and closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc. The device will detect the change in digital input and transmit the signal to video surveillance servers.

  • Page 11: Product Specification

    KCM-7911 Hardware User’s Manual Product Specification KCM-7911 • Device Device Type Outdoor Hemispheric Camera Image Sensor Progressive Scan CMOS 1/2.5 “ (5.7 x 4.28 mm) Sensor Size Day / Night Minimum Illumination Color: 1.63 lux at F2.8 (30 IRE, 2400°K); B/W: 0.06 lux at F2.8 (30 IRE,2400°K)
  • Page 12 KCM-7911 Hardware User’s Manual • Interface Digital Input 2, terminal block Digital Output 2, terminal block Local Storage MicroSD/MicroSDHC memory card slot (card not included) • General Power Source / PoE Class 3 (IEEE 802.3af) / 9.6W DC 12V / 7.68W (adapter is not included)

  • Page 13: Installation Procedure

    KCM-7911 Hardware User’s Manual 2. Installation Procedure Connecting the IP Hemispheric Camera 1) Remove the cover Remove the dome cover with special hex wrench in the accessory kit. 2) Insert the cable There are two conduit holes on this hemispheric camera. One is at the bottom, while the other is at the side.

  • Page 14: How To Do The Waterproof Installation

    KCM-7911 Hardware User’s Manual How to Do the Waterproof Installation The following installation procedure makes the camera be water-resistant even for the situations where the camera can easily be flooded by pouring rain. The important part to focus on during the installation: The protection of the cabling has to be done by a proper flex conduit.
  • Page 15 KCM-7911 Hardware User’s Manual Screw the body of the conduit gland into the camera and fix it with the lock nut (included in the set of conduit gland that you purchased) from the inside of the camera.. Connect the Ethernet cable to the camera’s network port. If you are not using PoE, then please remember to pull the DC power cable through the flex conduit as well, and connect to the camera at this point.
  • Page 16 KCM-7911 Hardware User’s Manual Screw the clamping nut tightly onto the body of the conduit gland. Adjust the viewing angle and focus of the camera and put the dome cover back on, and tighten it by using the screws. You have completed a fully waterproof installation!

  • Page 17: Accessing Camera

    KCM-7911 Hardware User’s Manual 3. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Hemispheric Cam into the network and your IP device will acquire network address by itself.
  • Page 18 KCM-7911 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
  • Page 19 KCM-7911 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
