User manual
Getting started with the STEVAL-IME011V2 evaluation board
based on the STHV748S ultrasound pulser
Introduction
The STEVAL-IME011V2 evaluation board is designed around the STHV748S 4-channel 5-level high
voltage pulser, a state-of-the-art device designed for ultrasound imaging applications.
This board facilitates evaluation of the ultrasound pulser IC thanks also a new graphical user interface.
Once configured, the output waveforms can be displayed directly on an oscilloscope by connecting the
probe to the relative BNCs.

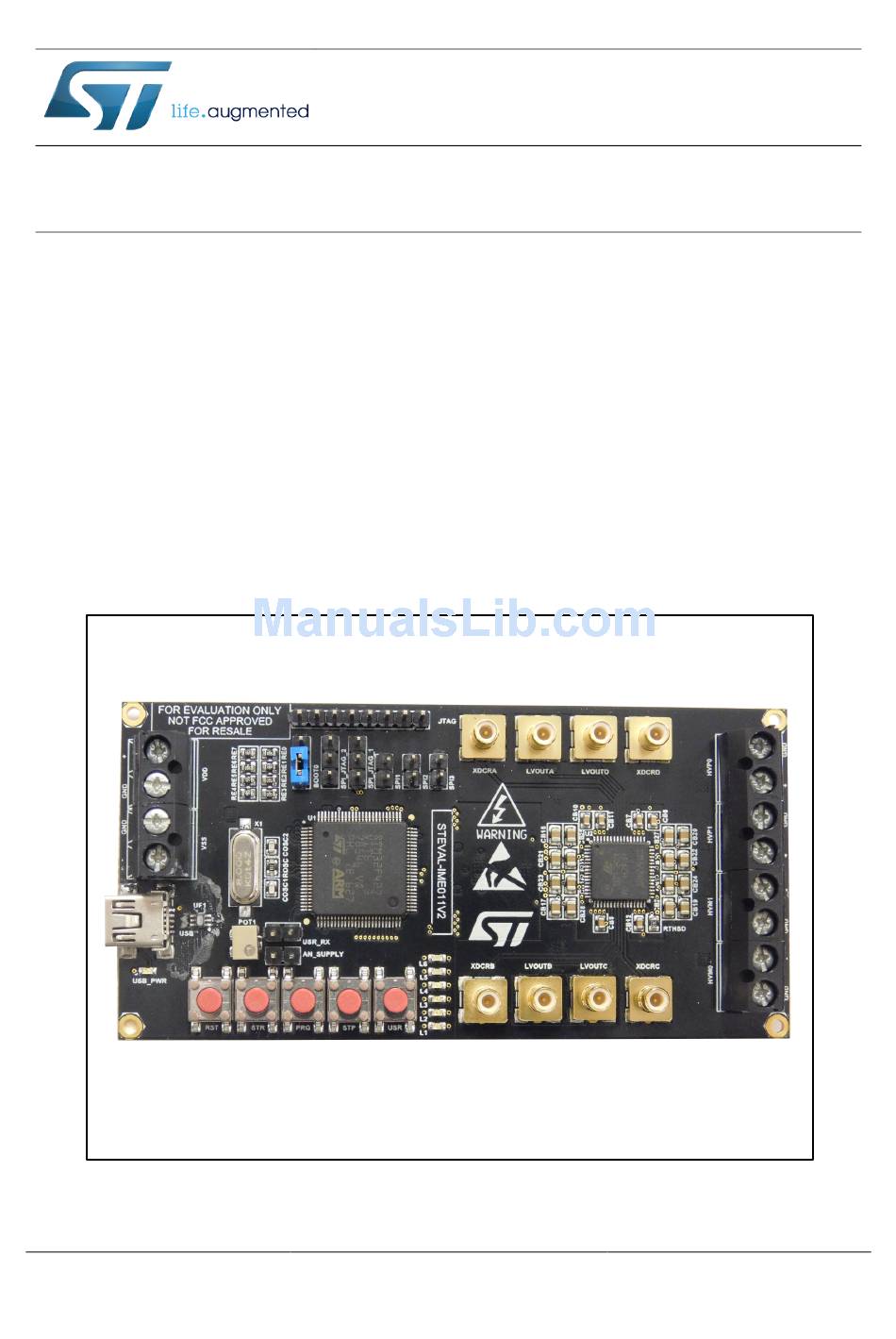

Figure 1: STEVAL-IME011V2 evaluation board
January 2017
DocID030224 Rev 1
1/30
www.st.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST UM2163
Summary of Contents for ST UM2163
-
Page 1: Figure 1: Steval-Ime011V2 Evaluation Board
UM2163 User manual Getting started with the STEVAL-IME011V2 evaluation board based on the STHV748S ultrasound pulser Introduction The STEVAL-IME011V2 evaluation board is designed around the STHV748S 4-channel 5-level high voltage pulser, a state-of-the-art device designed for ultrasound imaging applications. This board facilitates evaluation of the ultrasound pulser IC thanks also a new graphical user interface. -
Page 2: Table Of Contents
Contents UM2163 Contents Board features ................. 5 Getting started ................. 6 Hardware layout and configuration ..........7 Power supply ..................7 MCU ....................8 Stored patterns ................10 STHV748S stage ................18 Operating supply conditions ............20 Connectors ..................21 Power supply ................... - Page 3 UM2163 List of tables List of tables Table 1: Program 1 ........................... 12 Table 2: Program 2 ........................... 13 Table 3: Program 3 ........................... 15 Table 4: Program 4 ........................... 18 Table 5: DC working supply conditions ..................... 20 Table 6: USB mini B connector pinout ...................... 23 Table 7: JTAG connector pinout .......................
- Page 4 List of figures UM2163 List of figures Figure 1: STEVAL-IME011V2 evaluation board ..................1 Figure 2: Connection between STM32F4 and STHV748S ................. 7 Figure 3: STEVAL-IME011V2 board layout ....................7 Figure 4: STEVAL-IME011V2 connections ....................8 Figure 5: Solution 1 with STM32 direct memory access (DMA) peripheral ..........9 Figure 6: Solution 2 with direct MCU core intervention ................
-
Page 5: Board Features
UM2163 Board features Board features • 4-channel outputs: high voltage and low voltage BNC connectors • Up to 4 memory locations to store own waveforms designs • USB connector to load own waveforms onto the board • Dedicated connectors to supply high voltage and low voltage to the STHV748S output stage •... -
Page 6: Getting Started
Getting started UM2163 Getting started The STEVAL-IME011V2 is shipped by STMicroelectronics ready to use. The user only needs to: Plug the power supply to the board Connect the BNCs to the oscilloscope (see for details) Section 3.1: "Power supply" Check LED PROGRAM 1 (LD1) turns on... -
Page 7: Hardware Layout And Configuration
UM2163 Hardware layout and configuration Hardware layout and configuration The STEVAL-IME011V2 evaluation board is designed around the STHV748S. Figure 2: Connection between STM32F4 and STHV748S Figure 3: STEVAL-IME011V2 board layout Power supply The STEVAL-IME011V2 low voltage block is designed to be powered: •... -
Page 8: Mcu
Hardware layout and configuration UM2163 The USB connector must be removed when high voltage is powered on. The STEVAL-IME011V2 high voltage block is designed to be powered: • VDD: positive supply voltage, 5 V (2 - VDD conn.) • GND: ground (1 – VDD conn. And 2 – VSS conn.) •... -
Page 9: Figure 5: Solution 1 With Stm32 Direct Memory Access (Dma) Peripheral
UM2163 Hardware layout and configuration Once the information is received, the channel states are converted into 16-bit words for the GPIO peripheral and they are stored in the embedded Flash, with the timing information. After programming, the PC is no longer required, so the board becomes a stand-alone device. -
Page 10: Stored Patterns
Hardware layout and configuration UM2163 • to adapt the timing to the pattern needs, dummy instructions are inserted in the assembly code. To avoid wasting time to load each word from memory, the word is inserted as a literal in the assembly instruction itself, which means that a 32-bit instruction is needed instead of an equivalent 16-bit;... -
Page 11: Figure 7: Program 1 Scheme
UM2163 Hardware layout and configuration TX0 indicates that the H-bridge is supplied by HVP/M0, while TX1 indicates that the H-bridge is supplied by HVP/M1. Figure 7: Program 1 scheme DocID030224 Rev 1 11/30... -
Page 12: Table 1: Program 1
Hardware layout and configuration UM2163 Table 1: Program 1 PW 5 pulses - HV0/1 = ± 60 V; LOAD: 270 pF//100 Ω Mode Frequency (MHz) Number of pulses Initial pulse H-bridge Ch A positive 150 µs Ch B negative 150 µs... -
Page 13: Table 2: Program 2
UM2163 Hardware layout and configuration Figure 9: Program 2 scheme Table 2: Program 2 PW TX0 & TX1 5 pulses - HV0/1 = ± 60 V; LOAD: 270 pF//100 Ω Mode Frequency (MHz) Number of pulses Initial pulse H-bridge Ch A positive TX0 &... -
Page 14: Figure 10: Acquisition By Program 2
Hardware layout and configuration UM2163 Figure 10: Acquisition by Program 2 Program 3: • XDCR_A: continuous wave mode, TX-CW switching, time-period TP = 400 ns • XDCR_B: continuous wave mode, TX-CW switching in counter-phase respect to XDCR_A, time-period TP = 400 ns •... -
Page 15: Table 3: Program 3
UM2163 Hardware layout and configuration Figure 11: Program 3 scheme Table 3: Program 3 Continuous wave - HV1=±10V; LOAD: 270 pF//100 Ω Mode Frequency (MHz) Number of pulses Initial pulse H-bridge Ch A continuous wave positive TX-CW Ch B continuous wave... -
Page 16: Figure 12: Acquisition By Program 3
Hardware layout and configuration UM2163 Figure 12: Acquisition by Program 3 Program 4: • XDCR_A: pulse wave mode, TX0 switching, 1.5 pulses, time-period TP =400 ns and consequently TX1 switching, 5 pulses, time period TP = 200 ns and PRF = 150 µs •... -
Page 17: Figure 13: Program 4
UM2163 Hardware layout and configuration Figure 13: Program 4 DocID030224 Rev 1 17/30... -
Page 18: Sthv748S Stage
Hardware layout and configuration UM2163 Table 4: Program 4 Pulse cancellation - HV0/1 = ±60 V; LOAD: 270 pF//100 Ω Frequency Initial Mode Number of pulses H-bridge (MHz) pulse 3 half pulse then 4 TX0 then Ch A 2.5 - 5... -
Page 19: Figure 15: Sthv748S Single Channel Block Diagram
UM2163 Hardware layout and configuration • noise blocking diodes • high-power P-channel and N-channel MOSFETs as output stages for each channel • clamping-to-ground circuitry • anti-leakage • anti-memory effect block • a thermal sensor • an HV receiver switch (HVR_SW), which guarantees strong decoupling during the transmission phase •... -
Page 20: Operating Supply Conditions
Hardware layout and configuration UM2163 The main issues in this PCB design are the capacitance values necessary to ensure good filtering and the effective decoupling between the low voltage inputs (IN1, IN2, IN3, IN4 and EN for each channel) and the HV switching signals (XDCR, HVOUT, etc.), which is ensured by the implemented layer separation. -
Page 21: Connectors
UM2163 Connectors Connectors Power supply The STEVAL-IME011V2 evaluation board is powered through the screw connectors shown in the following figures. Figure 16: Power supply connector VDD (+5V - GND) Figure 17: Power supply connector VSS (GND - -5V) DocID030224 Rev 1... -
Page 22: Mcu
Connectors UM2163 Figure 18: Power supply connector HVP0 – HVP1 and HVM0 – HVM1 Figure 19: USB mini-B connector (CN1) 22/30 DocID030224 Rev 1... -
Page 23: Table 6: Usb Mini B Connector Pinout
UM2163 Connectors Table 6: USB mini B connector pinout Pin number Description Vbus (power) DM (STM32 PA11) DP (STM32 PA12) N.C. Ground Figure 20: JTAG connector Table 7: JTAG connector pinout Pin number Description DVDD JTDI JTMS JTCK JTDO JRST... -
Page 24: Table 8: Boot Connector Pinout
Connectors UM2163 Table 8: Boot connector pinout Pin number Description BOOT0 (boot from flash memory) DVDD (DFU mode) 24/30 DocID030224 Rev 1... -
Page 25: Schematic Diagrams
UM2163 Schematic diagrams Schematic diagrams Figure 22: STEVAL-IME011V2 circuit schematic GSPG300916 1145SG GND_PWR SPI_JTAG_2 SPI3_MISO SPI_CLK AUX7 AUX6 AUX5 AUX4 AUX3 AUX2 AUX1 AUX0 DocID030224 Rev 1 25/30... -
Page 26: Pcb Layout
PCB layout UM2163 PCB layout Figure 23: Top layer Figure 24: Inner layer 1 26/30 DocID030224 Rev 1... -
Page 27: Figure 25: Inner Layer 2
UM2163 PCB layout Figure 25: Inner layer 2 Figure 26: Inner layer 3 DocID030224 Rev 1 27/30... -
Page 28: Figure 27: Inner Layer 4
PCB layout UM2163 Figure 27: Inner layer 4 Figure 28: Bottom layer 28/30 DocID030224 Rev 1... -
Page 29: Revision History
UM2163 Revision history Revision history Table 9: Document revision history Date Version Changes 17-Jan-2017 Initial release. DocID030224 Rev 1 29/30... - Page 30 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
