IP Kamera 9070CSW Quick Installation

1.) Unplug the device including the following

Power Cable

RJ45 Ethernet Cable

Edimax USB dongle if connected

2.) First plug in the power to the device, second plug in the USB dongle, Lastly plug

in the network cable

3.) Then Open IP edit and Login to the 9070 IP Kamera.

4.) Next go to the network

Wireless. A new window should pop up with the wireless settings

5.) Select the Step by Step option on the wireless screen.

6.) Click on the

settings on the bottom and select

for more information on how to setup the device.

REF:20100609

Table of Contents

Need help?

Do you have a question about the 9070CSW and is the answer not in the manual?

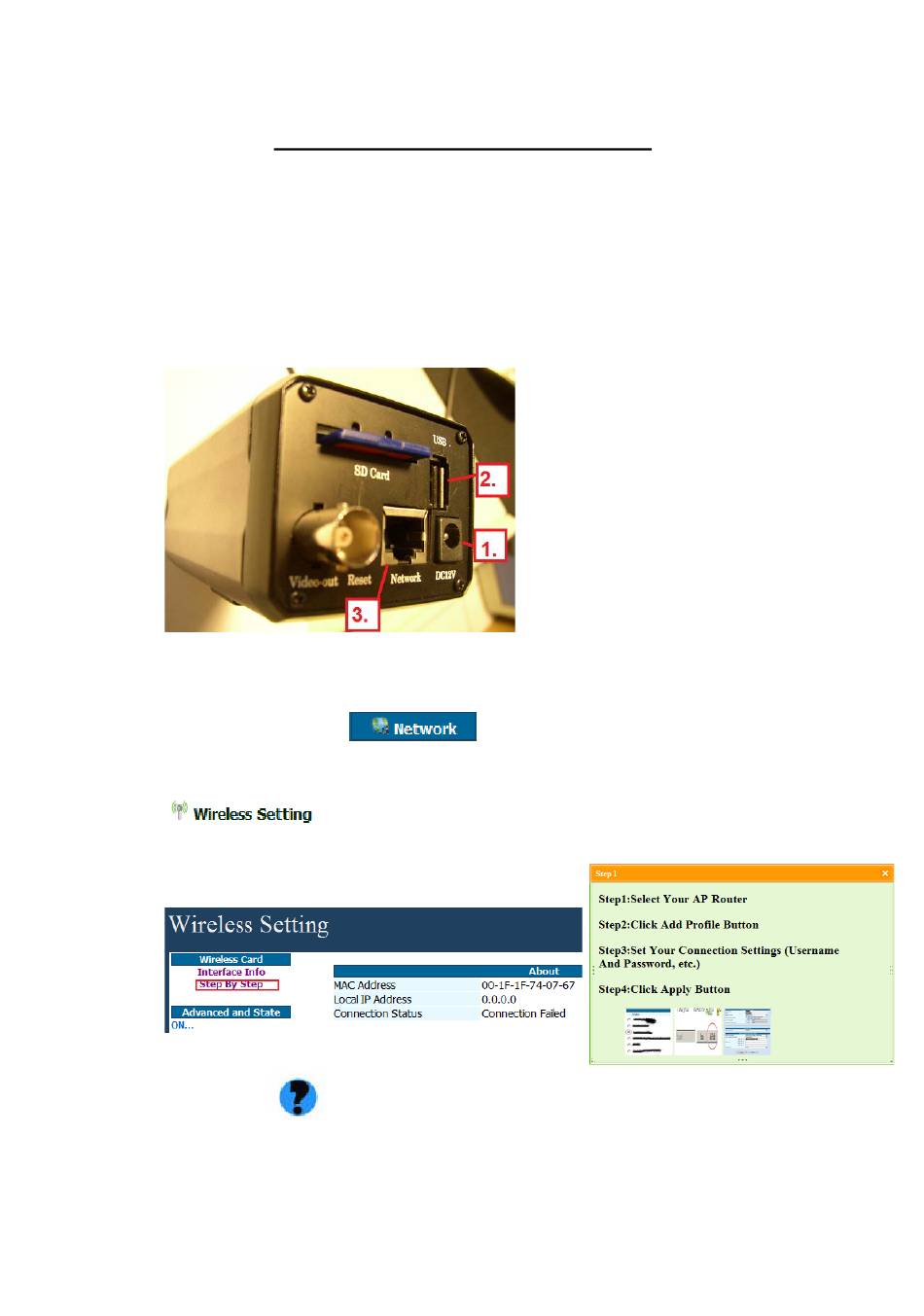

Page 1 IP Kamera 9070CSW Quick Installation 1.) Unplug the device including the following Power Cable RJ45 Ethernet Cable Edimax USB dongle if connected 2.) First plug in the power to the device, second plug in the USB dongle, Lastly plug in the network cable 3.) Then Open IP edit and Login to the 9070 IP Kamera.
Page 2 7.) Pick the router that you are using, then hit the add profile button 8.) Type in the passphrase for the router and hit the apply button. 9.) Wait about 60 seconds for device to connect. 10.) Then check to see for the connection successful under the connection status and the device is good to go.
