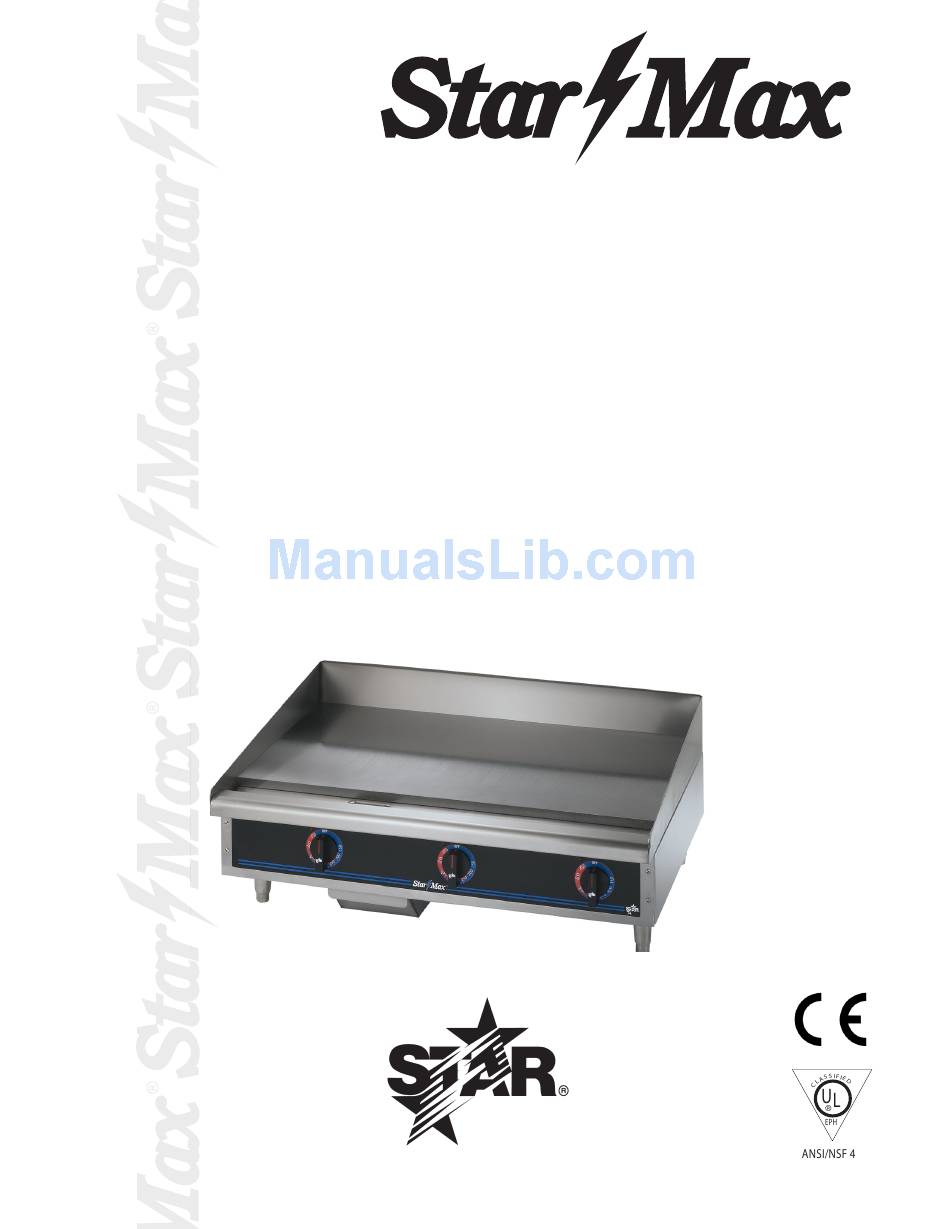

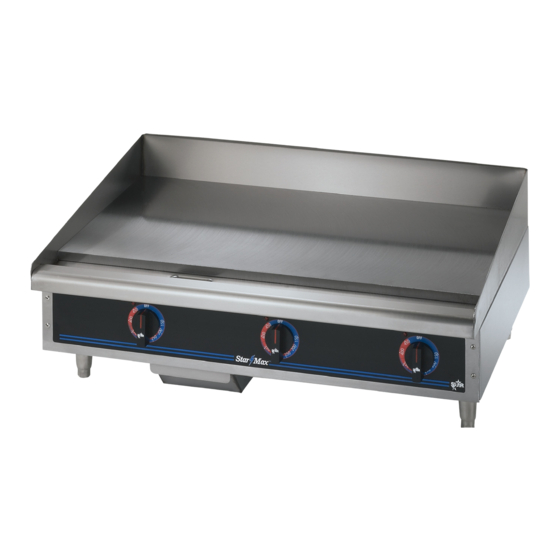

- Page 1 ® ELECTRIC GRIDDLES MODEL 536TGD-230V CHROME-MAX MODEL 536CHSD-230V Installation and Operation Instructions 2M-Z9837 Rev. B 12/29/08 536TGD...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Installation
CAUTION T his equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. B efore using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. A ll shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. C oncealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 5 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms. INSTALLATION The griddles are equipped for the voltage indicated on the nameplate mounted under the bullnose on the front panel. They will operate on alternating current (AC) only. WARNING DO NOT CONNECT TO DIRECT CURRENT (DC). DO NOT CONNECT TO AN ELECTRICAL SYSTEM OPERATING AT MORE THAN 240 VOLTS TO GROUND. -
Page 4: Temperature Control
SEASONING THE GRIDDLE HEATING SURFACE (NON CHROMIUM SURFACE) Clean the griddle surface thoroughly. After the griddle has been thoroughly cleaned, it should be seasoned to prevent food from sticking. Before using and after each thorough scouring, season the griddle heating surface in the following manner. . Turn temperature control dials to 50°F (77°C). 2. Using a clean cloth, not a spatula, spread a thin film of cooking oil over the griddle cooking surface. This film should remain on the hot griddle surface for half an hour. . Remove the excess oil and wipe clean. - Page 5 GRIDDLE CARE (CHROMIUM SURFACES) It takes very little time and effort to keep this Industrial Chromium griddle surface sparkling clean and performing at top efficiency. DO NOT allow grease to accumulate as it will carbonize and become difficult to remove. To prevent this condition the following cleaning suggestions should be followed: . Remove excess grease and food regularly with a 4” (00mm) wide Razor Sharp type scraper and wipe surface with a damp cloth if desired. . Following the scraping, for end of the day cleaning, a damp cloth and a non-silicated, non- abrasive, non-chlorinated cleaner such as Bon-Ami may be used to wipe surface clean, followed by wiping with a clean wet cloth. . Follow steps and from Griddle Care (Non-Chromium Surfaces) above. CAUTION 1. Never use pumice, griddle stones, or abrasives on a chromium surface. . Never strike a chromium griddle surface with a sharp instrument or spatula edge. . Never use steel wool.
- Page 6 INTERNATIONAL ONE (1) YEAR EQUIPMENT WARRANTY All workmanship and materials in “STAR” products are warranted for a period of one year from the date shipped from the factory or one year from the date shown on the proof of purchase of the end-user when purchased through an authorized “STAR” dealer/dis- tributor in a commercial foodservice location.
- Page 8 Nameplate SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 524TGD, 524CHSD-230V (TYPICAL) SK2210 REV. A 8/7/06...
-
Page 9: Parts List
PARTS LIST December , 00, Rev. B 536TGD / 536CHSD-230V Star-Max/Chrome-Max Electric Griddles MODEL Number Part Number Number Description and Model Designation Unit G3-536311 GRIDDLE PLATE STUDDED 536CHSD G-50 GRIDDLE PLATE STUDDED 5TGD 2N-Z5948 HEATING ELEMENT G-Z57 ELEMENT CLAMP LONG G3-GD0036 TUBE-WASHER ASSEMBLY G3-624304 CHUTE ASSEMBLY G3-Z5973 ELEMENT CLAMP SHORT G-Z545 SIDE PANEL G-40... - Page 12 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
