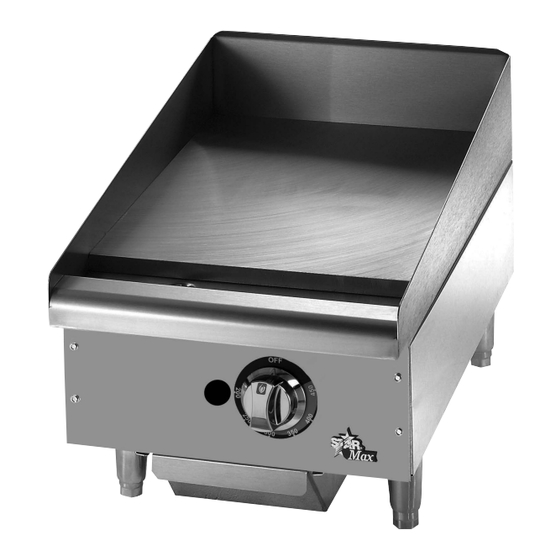

- Page 1 ® ELECTRIC GRIDDLES MODEL 515TGF-AP 524TGF-AP 524TGF-PE50 Installation and Operation Instructions 2M-Z16007 Rev. E 06/19 515TGF-AP ® ANSI/NSF 4...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Installation
Level unit by adjusting the four (4) feet which have an adjustment of 1-3/4” (43.75mm) for accurate leveling and perfect line-up with other Star-Max series units. After the griddle is in its final position, adjust the legs to create 1/8 inch slant from back to front on the griddle plate. This will allow grease to run into the grease gutter... -
Page 4: Operation
The Star-Max electric griddle line has one thermostat for every 12” (30cm) section of griddle that operates independently of one another. Each thermostat controls the section of the griddle above it and may be set at different temperatures as desired. - Page 5 Star and limitations defined in this warranty, will at Star’s is not liable for any unit which has discretion have the parts replaced or repaired by Star or been mishandled, abused, misapplied, subjected to a Star-authorized service agency.
- Page 6 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 524TGF-AP, 524TGF-PE50 SK2602 REV. D 2/25/15...
-
Page 7: Parts List
PARTS LIST February 25, 2015, Rev D Model: 515TGF-AP20, 515TGF-AP30, 524TGF-AP50 Fig No Part No Description Model G3-515311 GRIDDLE PLATE STUDDED 515 515TGF-AP G3-524314 524TGF-AP GRIDDLE PLATE STUDDED 524 G3-524317 524TGF-PE50 2N-Z5948 HEATING ELEMENT 515 / 524 G3-Z5973 ELEMENT CLAMP SHORT 515 / 524 G3-Z16135 6/12... - Page 8 515 / 524 2J-Y6690 PILOT LIGHT 240V 524TGF-PE50 2A-Z13272 4 / 6 KNOB GUARD 524TGF-PE50 / 536TGF-PE50 2M-Z15804 STAR-MAX LOGO ABS 2C-8477 CLIP .125 PO STL PHOS 2C-200177 8/12 WASHER #10 EXT STL ZP 524TGF-PE50 / 536TGF-PE50 2C-1512 8/12 SCREW 10-24X3/8 RHP...
- Page 12 STAR MANUFACTURING INTERNATIONAL INC. Star - Holman - Lang - Wells - Toastmaster 265 HOBSON ST. SMITHVILLE, TN 37166 (800) 264-7827 www.star-mfg.com...
