Gas griddle models

Advertisement

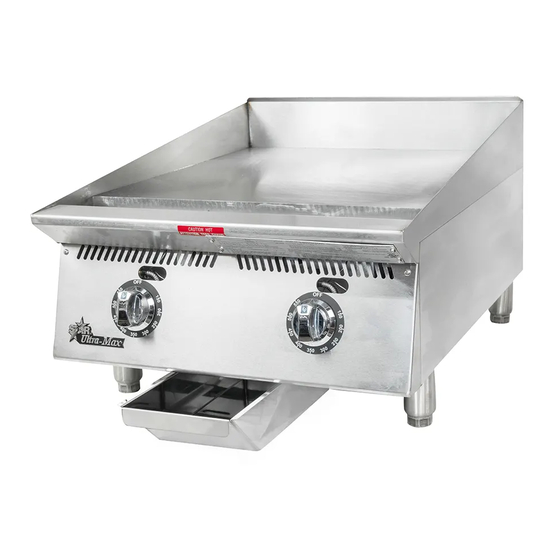

ULTRA-MAX™ GAS GRIDDLE MODELS
GRILS A GAZ ULTRA-MAX MODELES
824M
836M
848M
860M
872M
WARNING:
Improper installation,
adjustment, alteration, service or
maintenance can cause property
damage, injury or death.
installation, operating and maintenance
instructions thoroughly before installing
or servicing this equipment.
AVERTISSEMENT: L'installation inexacte, le ré-
glage, le changement, le service ou l'entretien peu-
vent causer des dégats matériels, des dommages
ou la mort. Lisez les instructions d'installation,
d'opération et d'entretien complètement avant
d'installer ou entretenir ce matériel.
FOR YOUR SAFETY:
use gasoline or other fl ammable vapors or
liquids in the vicinity of this or any other
POUR VOTRE SÛRETÉ: N'enregistrez pas ou
n'utilisez pas l'essence ou d'autres vapeurs ou liq-
uides infl ammables à proximité de ceci ou d'aucun
autre appareil.
Star
Manufacturing
International Inc.
10 Sunnen Drive
St. Louis, MO 63143
Phone: (314) 781-2777
Fax: (314) 781-2714
824T
836T
848T
860T
872T
Read the
Do not store or
824TS
836TS
848TS
860TS
872TS
WARNING:
This appliance shall be
installed in accordance with current
regulations and used only in well-
ventilated space. Refer to instructions
before installing and using this
AVERTISSEMENT: Cet appareil sera installé
selon des règlements actuels et utilisé seule-
ment dans l'espace bien-aéré. Référez-vous aux
instructions avant d'installer et utiliser cet appa-
reil.
In addition, there should be posted, in a
prominent location, detailed instructions
to be followed in the event the operator
smells gas. Obtain the instructions from
the local gas supplier.
En outre, là devrait être signalé, dans un emplace-
ment en avant, des instructions détaillées d'être
suivi en cas que l'opérateur sent le gaz. Obtenez
les instructions du fournisseur local de gaz.
1
Installation and
Operating Instructions
Instructions d'installation
et d'opération
2M-Z4877 Rev. E 8/3/2006
824TSCHS
836TSCHS
848TSCHS
860TSCHS
872TSCHS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 824M and is the answer not in the manual?

Questions and answers

Summary of Contents for Star 824M

  • Page 1 Instructions d’installation 10 Sunnen Drive St. Louis, MO 63143 et d’opération Phone: (314) 781-2777 2M-Z4877 Rev. E 8/3/2006 Fax: (314) 781-2714 ULTRA-MAX™ GAS GRIDDLE MODELS GRILS A GAZ ULTRA-MAX MODELES 824M 824T 824TS 824TSCHS 836M 836T 836TS 836TSCHS 848M 848T...
  • Page 2: Safety Symbol

    RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
  • Page 3: Specifications

    SPECIFICATIONS: 824M Type: Manual Valve 2 Controls, 60,000 BTUH, 573 sq. in. (3697 sq. cm) Grid Area Approximate weight: installed - 214 Lb s (97.0 kg), shipping - 244 Lbs (110.6 kg) Dimensions: 24" - Width, 32 3/8" - Depth, 18" - Height (61 cm - Width, 82.2 cm - Depth, 45.7 cm - Height)
  • Page 4 824TS Type: Snap Action Control With Safety Pilot 2 Controls, 60,000 BTUH, 573 sq. in. (3697 sq. cm) Grid Area Approximate weight: installed - 222 Lb s (100.6 kg), shipping - 250 Lbs (113.3 kg) Dimensions: 24" - Width, 32 3/8" - Depth, 18" - Height (61 cm - Width, 82.2 cm - Depth, 45.7 cm - Height) 836TS Type: Snap Action Control With Safety Pilot...
  • Page 5: General Installation Data

    GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &...
  • Page 6: Leveling Unit

    LEVELING UNIT This griddle is supplied with 4 feet or fl oor stand legs which must be screwed into the body. Unit must be level. Level unit by adjusting the (4) feet which have an adjustment of 1-3/4" for accurate and perfect line-up with other units. DO NOT INSTALL WITHOUT ATTACHING FEET OR SUPPLIED STAND LEGS AND SHELF - DO NOT REMOVE FEET.
  • Page 7 GAS PIPING Gas piping shall be of such size and so installed as to provide a supply of gas suffi cient to meet the full gas input of the appliance. If the appliance is to be connected to existing piping, it shall be checked to determine if it has adequate capacity.
  • Page 8: Pilot Flame Adjustment

    PILOT FLAME ADJUSTMENT The griddles are equipped with standing pilots and should be lit immediately after the gas is turned on. MANUAL VALVE AND THROTTLING CONTROL MODELS Adjust the fl ame as low as possible while still providing immediate burner ignition when the control knob is turned to high.
  • Page 9: Burner Air Shutter Adjustment

    BURNER AIR SHUTTER ADJUSTMENT The burner air shutter has a locking screw on the bottom side of the venturi. Loosen this screw to make any adjustment and tighten the screw to lock the air shutter in place after adjustment is complete. Any adjustment must be made when the burner is at full input before the control temperature setting has been satisfi...
  • Page 10 GRIDDLE CARE (NON-CHROME SURFACES) It takes very little time and effort to keep the griddle attractive and performing at top effi ciency. If grease is permitted to accumulate, it will form a gummy cake and then carbonize into a hard substance which is extremely diffi cult to remove. To prevent this condition, the following suggestions for cleanliness should be followed: 1.
  • Page 11 This limited warranty is void if it is determined by Star Manufacturing International Incorporated or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations: 1.
  • Page 12: Entretien Et Réparations

    L’utilisation de toute pièce autre que les pièces d’origine STAR dégage le fab- ricant de toute responsabilité. Star se réserve le droit de changer les spécifi cations et la conception du produit sans préavis. Ces changements ne donnent pas le droit à l’acheteur d’obtenir les changements, améliorations, ajouts ou remplacements correspondants pour...
  • Page 13 DONNÉES GÉNÉRALES D’INSTALLATION NOTIFICATION ATTENTION Quand cet appareil est installé avec des roulettes, il doit être installé avec les roulettes fournies, un connecteur étant conforme à la norme ANSI Ce matériel est conçu et vendu pour l’usage com- Z21.69 ou au CAN/CGA-6.16 et à un dispositif mercial seulement par le personnel qualifi...
  • Page 14 ÉQUILIBRAGE DE L’APPAREIL ATTENTION Ce gril est fourni avec 4 pieds ou jambes de stand de plancher qui doivent être vissés dans le corps. N’INSTALLEZ PAS SANS ATTACHER ES L’unité doit être niveau. Unité de niveau en ajustant PIEDS OU DES JAMBES ET L'ETAGERE (4) les pieds qui ont un réglage de 1-3/4 “...
  • Page 15 TUYAUTERIE À GAZ GAZ PROPANE - CONVERSION La taille de la tuyauterie à gaz et la façon dont elle Cette gauffreuse est équipée des capots fi xes est installée doivent être telles qu’elle fournisse une d’orifi ce et est expédiée de l’usine pour l’usage avec alimentation suffi...
  • Page 16 ALLUMER DES INSTRUCTIONS MODÈLES EXTÉRIEURS INSTANTANÉS Quand la gauffreuse est d’abord allumée, il fum- DE THERMOSTAT ET DE CHROME era jusqu’à ce que les huiles et les impuretés de D’CAction Ajustez le pilote tellement ap- préservatif soient consommation. Les gauffreuses proximativement 3/8 “...
  • Page 17: Instructions De Fonctionnement

    CONNEXION ÉLECTRIQUE POUR L’CAction CUISINE INSTANTANÉE ET LES MODÈLES EXTÉRIEURS Placez la molette de cadran à la confi guration DE CHROME SEULEMENT désirée. Après une période de préchauffage de 30 Des grils extérieurs instantanés d’action et de minutes (minimum), le gril mettra à jour automa- chrome sont équipés d’une trois-fourche fondant tiquement la température choisie.
  • Page 18 Cette garantie limitée est vide si elle est déterminée par Star Manu- 3. Suivez les étapes 2 et 3 du soin de gril (non surfaces de chrome).
  • Page 19 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
  • Page 20 NAMEPLATE REFER TO THE PARTS LIST SPECIFIC TO YOUR MODEL FOR MORE DETAIL INFORMATION. Model: 800 SERIES STAR MANUFACTURING INTERNATIONAL, INC. SK1878 REV A 5-20-05...
  • Page 21: Parts List

    N//A 2C-Z8547 BOLT, KNOB STOP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 22 N//A 2C-Z8547 BOLT, KNOB STOP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 23 N//A 2C-Z8547 BOLT, KNOB STOP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 24 N//A 2C-Z8547 BOLT, KNOB STOP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 25 N//A 2C-Z8547 BOLT, KNOB STOP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 28 FITTING 3/8 CC X 1/4 MPT 872T IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 34 2K-Z4611 824TS/TSCHS ELBOW 3/4 NPT IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 35 836TS/TSCHS CORD SET 6’ LONG IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 36 848TS/TSCHS CORD SET 6’ LONG IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 37 NIPPLE 3/4 NPT X 22 1/2 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED INCLUDE MODEL AND SERIAL NUMBER IMPORTANT: PAGE Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 38 NIPPLE 3/4 NPT X 22 1/2 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED INCLUDE MODEL AND SERIAL NUMBER IMPORTANT: PAGE Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 40 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
