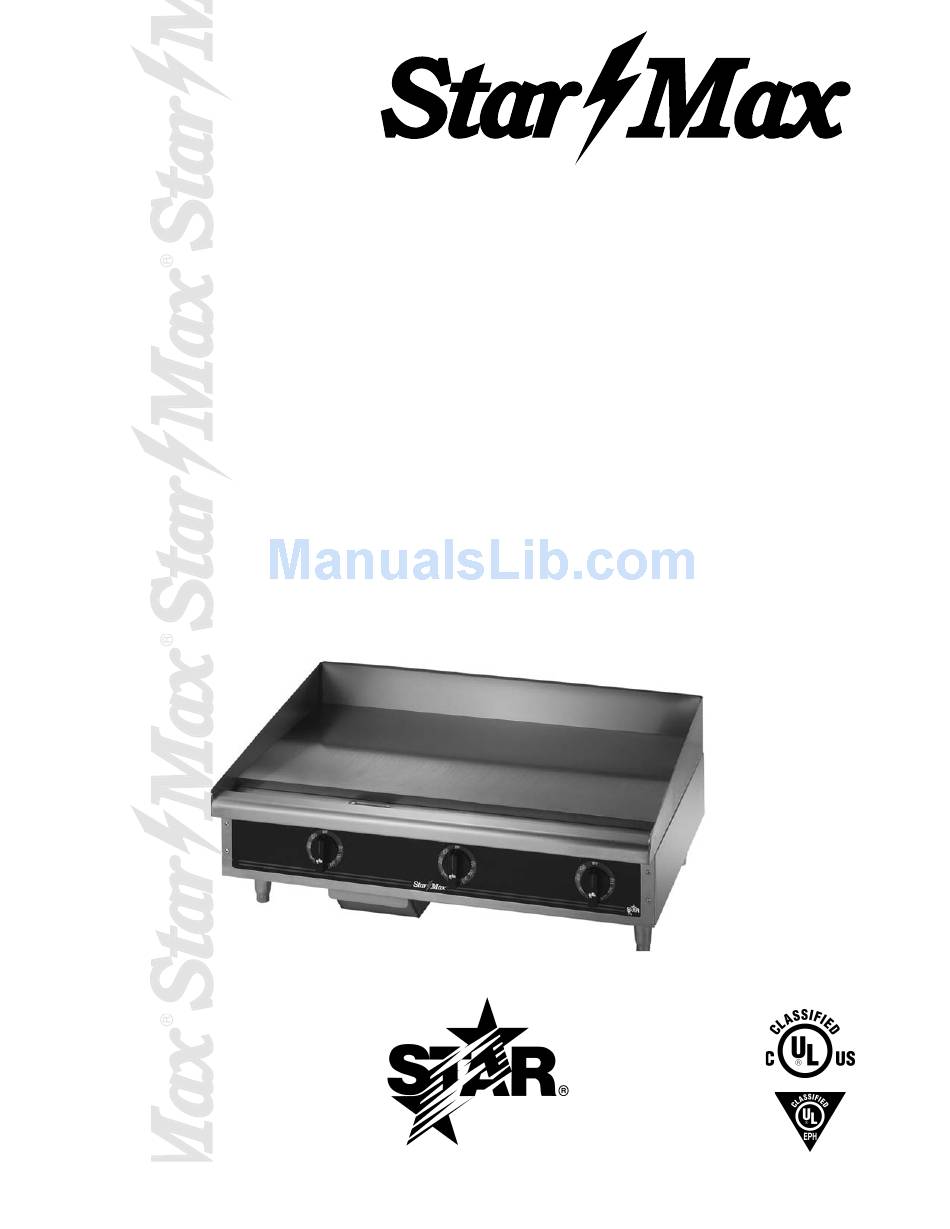

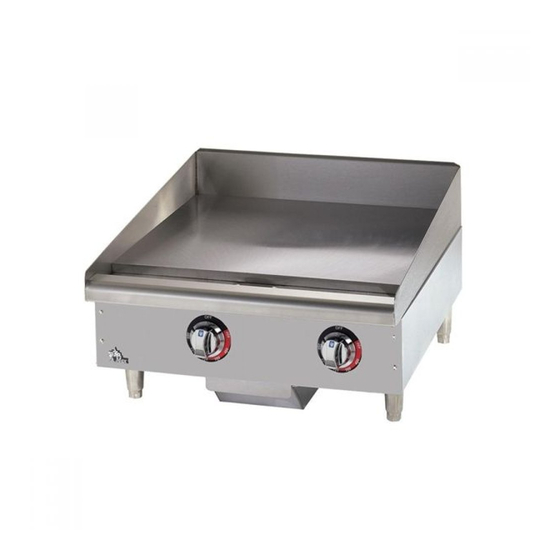

- Page 1 ® ELECTRIC GRIDDLES MODEL 515TGD, 524TGD, 524TGDS, 536TGD, 536TGDS, 548TGD, 548TGDS, CHROME-MAX MODEL 524CHSD, 536CHSD, 548CHSD Installation and Operation Instructions 2M-Z6125 Rev. F 2/16/07 536TGD...
-
Page 2: Safety Symbol
Due to periodic changes in designs, methods, procedures, policies and regulations, the specifi cations contained in this sheet are subject to change without notice. While Star Manufacturing exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifi... -
Page 3: Installation
CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... - Page 4 SEASONING THE GRIDDLE HEATING SURFACE (NON CHROMIUM SURFACE) Clean the griddle surface thoroughly. After the griddle has been thoroughly cleaned, it should be seasoned to prevent food from sticking. Before using and after each thorough scouring, season the griddle heating surface in the following manner. 1.
- Page 5 This limited warranty is void if it is determined by Star Manufacturing International Incorporated or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations: 1.
- Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
- Page 12 Nameplate SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 524TGD, 524CHSD SK1981 REV. A 5/9/03...
-
Page 13: Parts List
PARTS LIST February 16, 2007, Rev. F 515TGD, 524TGD/S, 524CHSD, 536TGD/S, 536CHSD, 548TGD, 548CHSD 15”, 24”, 36” and 48” Star-Max/Chrome-Max Electric Griddles MODEL Number Part Number Number Description and Model Designation Unit G3-515310 GRIDDLE PLATE STUDDED 515TGD G3-524310 GRIDDLE PLATE STUDDED... - Page 14 PARTS LIST February 16, 2007, Rev. F 515TGD, 524TGD/S, 524CHSD, 536TGD/S, 536CHSD, 548TGD, 548CHSD 15”, 24”, 36” and 48” Star-Max/Chrome-Max Electric Griddles MODEL Number Part Number Number Unit Description and Model Designation 2J-Y6690 1/2/3/4 PILOT LIGHT 515 / 524 / 536 / 548...
- Page 16 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
