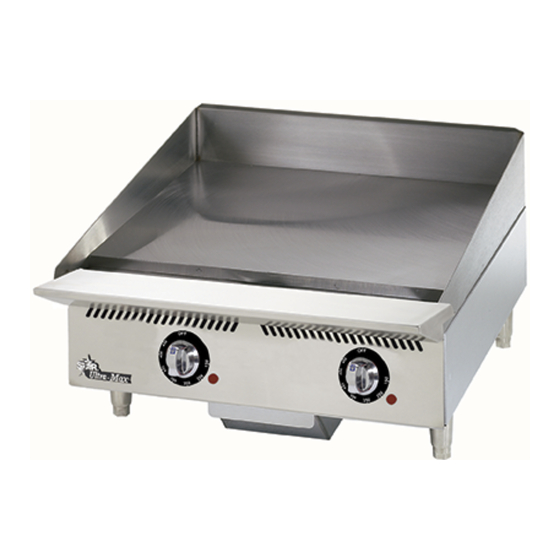

Star Ultra Max 772TCHSA Installation And Operation Instruction Manual
Electric griddles
Hide thumbs
Also See for Ultra Max 772TCHSA:
- Installation and operation instructions manual (16 pages) ,
- Installation and operation instruction manual (16 pages)
Related Manuals for Star Ultra Max 772TCHSA
Summary of Contents for Star Ultra Max 772TCHSA

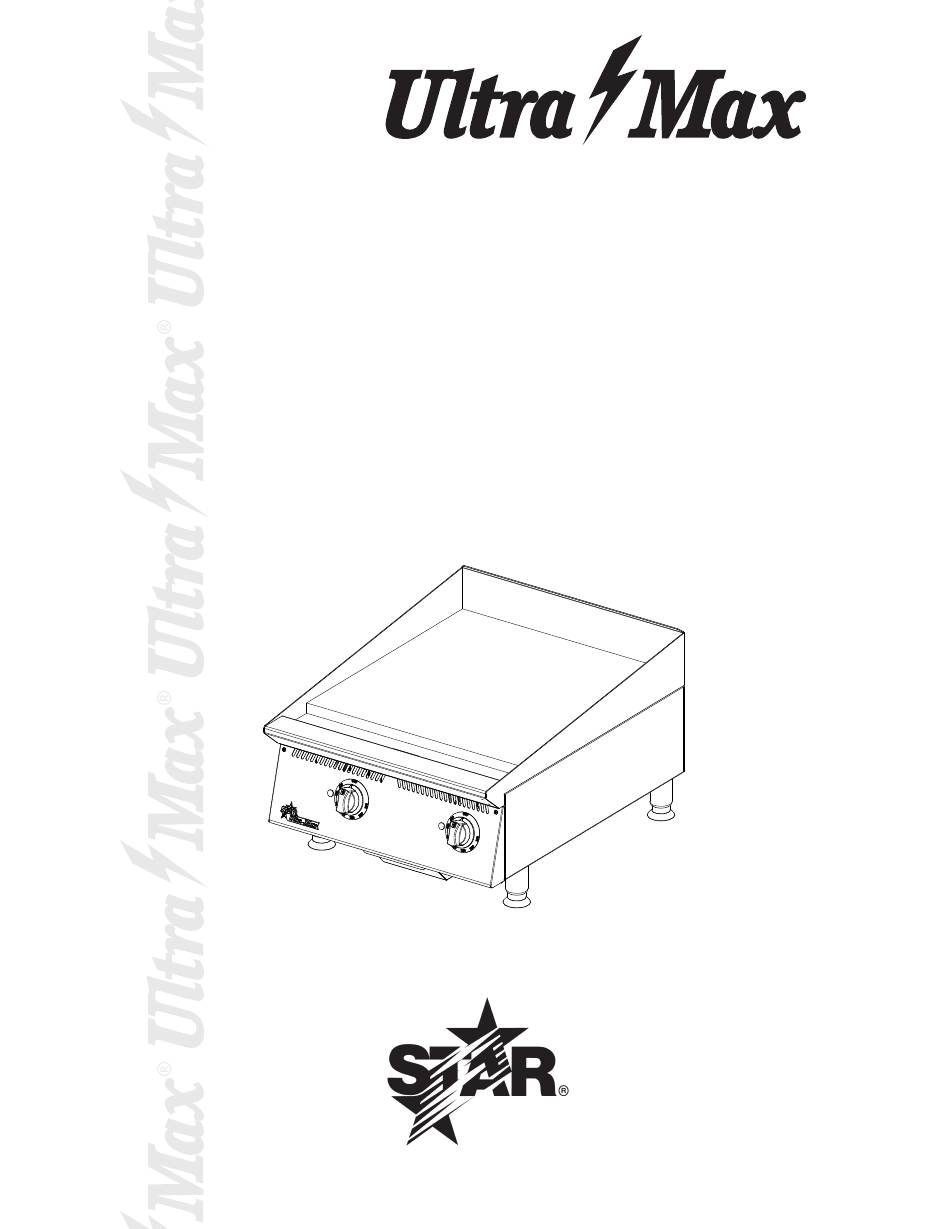

- Page 1 ® ELECTRIC GRIDDLES MODELS 724TA, 736TA, 748TA, 760TA, 772TA CHROME MODELS 724TCHSA, 736TCHSA, 748TCHSA, 760TCHSA, 772TCHSA Installation and Operation Instructions 2M-Z16214 REV E (05-23) IL2924 724TA...
-
Page 2: Maintenance And Repairs
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. - Page 3 GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced CAUTION in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. For equipment to be used by the general public, please contact the factory.
- Page 4 GENERAL OPERATING PROCEDURES continued SEASONING THE GRIDDLE HEATING SURFACE Before initial use, clean the griddle surface thoroughly with hot soap and water. See Griddle care on page 4 for further information. After the griddle has been thoroughly cleaned, it should be seasoned to prevent food from sticking.
- Page 5 CLEANING GRIDDLE CARE (NON-CHOME SURFACES) It takes very little time and effort to keep the griddle attractive and performing at top efficiency. If grease is permitted to accumulate, it will form a gummy cake and then carbonize into a hard substance which is extremely difficult to remove.
- Page 6 Star Manufacturing [as well as its subsidiaries] warrants to the original THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY. purchaser of new Star products to be free from defects in material or Star’s sole obligation under this warranty is limited to either repair or workmanship, under normal and proper use and maintenance service as replacement parts, subject to the additional limitations detailed below.
- Page 7 NOTE: Wattage is 4.35 kw SINGLE PHASE NOMINAL AMPS PER LINE 3 PH. FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR per heated zone. See unit 208V 240V 208V-3 PHASE 240V-3PHASE AT LEAST 90°C (194°F). USE GAUGE SHOWN OR LARGER. 8.7 KW 8.7 KW 8.7 KW...
- Page 8 NOTE: Wattage is 4.35 230/400 VOLT Y - 8.7 KW FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR AT LEAST 90°C (194°F). NOM. AMPS USE #10 AWG OR LARGER. DO NOT CONNECT TO A SYSTEM OPERATING AT MORE THAN 250 kw per heated zone.
- Page 9 FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR 760T 230/400 VOLT Y - 21.75 KW NOM. AMPS AT LEAST 90°C (194°F). USE #8 AWG OR LARGER. DO NOT CONNECT PER LINE TO A SYSTEM OPERATING AT MORE THAN 250 VOLTS TO GROUND 31.5 31.5 31.5...
- Page 10 NAMEPLATE SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL 724TA, 736TA, 748TA, 760TA, 772TA SK2122 REV B (05-23)
-
Page 11: Parts List
724TA-230V, 724TCHSA-230V IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1 INCLUDE MODEL AND SERIAL NUMBER OF 1 Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 12 WIRING DIAGRAM LABEL 36CE 736TA-230V, 736TCHSA-230V IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 13 WIRING DIAGRAM LABLE 48CE 230V IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 14 WIRING DIAGRAM LABEL 24” 208/240V IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 15 2M-Z8446 WIRING DIAGRAM LABEL 36” IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 16 STAR MANUFACTURING INTERNATIONAL INC. Star - Holman - Lang - Wells - Toastmaster 265 HOBSON ST. SMITHVILLE, TN 37166 (800) 264-7827 www.star-mfg.com...
