Advertisement
Star
Manufacturing
International, Inc.
10 Sunnen Drive
St. Louis, MO 63143
Phone: (314) 781-2777
Fax: (314) 781-2714
STAR-MAX ELECTRIC

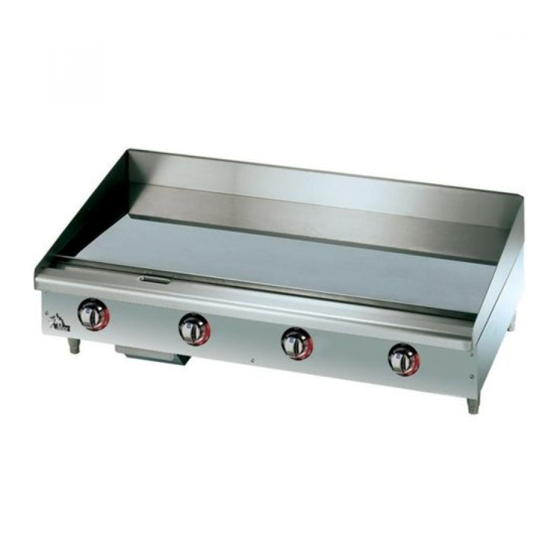

GRIDDLES
515TG, 524TG, 536TG, 548TG
CHROME-MAX ELECTRIC
GRIDDLES
524CHS, 536CHS, 548CHS
MODELS
MODELS
Installation and
Operating
Instructions
2M-Y7197 Rev. B 4/3/2007
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Star 515TG
Summary of Contents for Star 515TG
- Page 1 Star Installation and Manufacturing Operating International, Inc. Instructions 10 Sunnen Drive St. Louis, MO 63143 Phone: (314) 781-2777 Fax: (314) 781-2714 2M-Y7197 Rev. B 4/3/2007 STAR-MAX ELECTRIC GRIDDLES MODELS 515TG, 524TG, 536TG, 548TG CHROME-MAX ELECTRIC GRIDDLES MODELS 524CHS, 536CHS, 548CHS...
-
Page 2: Safety Symbol
SAFETY SYMBOL This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Installation
GENERAL OPERATING PROCEDURES The Chrome-Max and Star-Max series electric CAUTION griddles may be wired for operation in the fi eld for either 1-phase or 3-phase power supplies by This equipment is designed and sold for making line connections at the junction box(es) commercial use only by personnel trained and located at the rear of the unit. - Page 4 TEMPERATURE CONTROL 3. At least once a day, remove the waste grease drawer and wash in the same way as an The temperature controls are combination “ON/ ordinary cooking utensil. The drawers are OFF” switches and thermostats. Turning the dial removed by pulling forward until they are knob automatically maintains the selected heat released from their track.
-
Page 5: Maintenance And Repairs
MAINTENANCE AND REPAIRS Contact the factory, a service representative, or a local service company for service or required maintenance. CHROME-MAX GRIDDLE SURFACE LIMITED WARRANTY EXCLUSIONS Your Chrome-Max griddle has been designed to give you many years of cooking reliability and requires minimum maintenance to keep the chrome surface in its original condition. - Page 8 This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN STAR MANUFACTURING INTERNATIONAL, INC. CERTAIN INSTANCES MAY NOT BE AVAILABLE MODEL: 515, 524, 536, 548 SK1356 REV.
-
Page 9: Parts List
April 3, 2007, Rev. B Parts List 515TG, 515TGS, 524TG, 524TGS 524CHS, 536TG, 536TGS, 536CHS, 548TG, 548CHS Model _______________________________ Key Number Part Number Number Description Per Unit 2J-Y6690 1/2/3/4 Pilot Light 515 TG 524/536/548 2R-8229 2/4/6/8 Shield-knob 515 TG 524/536/548... - Page 12 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
