Summary of Contents for Star Lang 124S

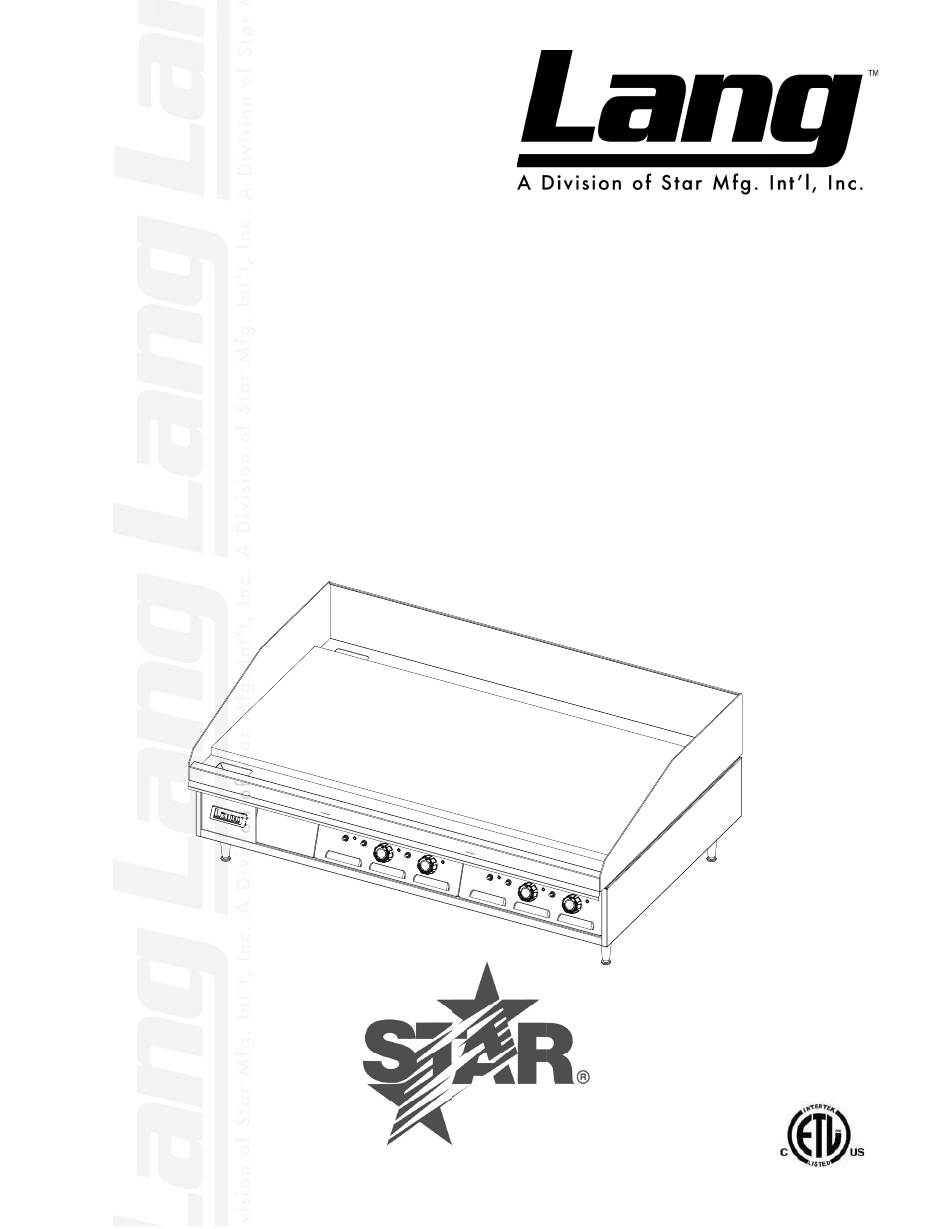

- Page 1 SELECTRONIC ELECTRIC GRIDDLE Commercial & Marine 124S, 124SHE 136S, 136SHE 148S, 148SHE, 148SR 160S, 160SHE, 160SR, 160S-SC 172S, 172SR, 172SC Installation and Operation Instructions 2M-W353 Rev. G 10/13/08 IL1381 148S...
- Page 2 Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
Service on this or any other Lang appliance must be performed by qualifi ed personnel only. Consult your Lang Authorized Service Agent Directory. You can call our toll free number 1-800-807-9054 or visit our website WWW.STAR-MFG.COM for the service agent nearest you. -
Page 4: Specifi Cations
EQUIPMENT SPECIFICATIONS Height x Width x Depth Clearance from Weight Model (Not including legs) combustible surface Actual Shipping Freight Class 15.0" x 24.0" x 28.2" 243 lbs. 280 lbs. 381mm x 610mm x 717mm 110 kg 127 kg 15.0" x 36.0" x 28.2" 368 lbs. - Page 5 EQUIPMENT SPECIFICATIONS SPECIFICATIONS Current Model Volts AC Supply Amp 3 Ph Supply Supply Amp 3 Ph Supply 1PH. Wire Wire 1PH. Wire Wire 1 PH 3 PH 1 PH 3 PH 124S 208/240 124S-480V 124SHE 208/240 136S 136S-480V 136SB-WB 208/240 136SHE 208/240 148S...
-
Page 6: Equipment Description
EQUIPMENT DESCRIPTION 1” Griddle Surface Rear Gutter (certian models) Gutter Grease Pan Legs IL1548 Main Section Power Switch Section Section Power Switch Temp. Dial Exterior Construction The griddle dimensions are 17” (43.18cm) High, 30” (76.20cm) Deep, and width is dependent on the actual model number. -
Page 7: Unpacking
15 days of delivery. All packing material should be kept for inspection. Do not return damaged merchandise to Star Manufacturing Company. File your claim with the carrier. Location Prior to un-crating, move the oven as near to its intended location as practical. -
Page 8: Installation
INSTALLATION IL1549 Std Leg Marine Bolt Down Leg Above: typical leg installation. Leg Installation There are four, 4” legs provided for 2, 3 and 4 foot griddles. 2.5” There are eight 4” legs provided for 5 and 6 foot griddles. IL1550 The legs are shipped in the grease drawers of the griddle. -
Page 9: Ventilation & Clearence
INSTALLATION cont. Ventilation and Clearances Standard minimum clearance from combustible construction is as follows. 2” from side 2” from back These griddles may be set directly, without legs, on a curbed base or non-combustible surface. If the griddle is set without legs on a non-combustible fl oor or a curbed base, maintain a 4-inch back clearance. -
Page 10: Initial Start-Up Pre-Power On
INITIAL START UP Pre-Power On Before starting the griddle for the fi rst time, clean the griddle body and cooking surface. Use a mild soap and water solution, then rinse with clear water and dry. Power On Set the main power switch, located at the far left of the control panel, to the “ON” (up) position (there are two “ON”... -
Page 11: Operation
OPERATION General The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. Adjoining sections should be set at progressively higher temperatures. Do not try to operate the end sections hot and the center sections cool. -
Page 12: Cleaning
MAINTENANCE & CLEANING Cleaning • Always start with a cold griddle. • The stainless exterior can easily be cleaned using a good non-abrasive cleaner. • Always follow the cleaner manufacturer’s instructions when using any cleaner. • Always apply these cleaners when the griddle is cold and rub in the direction of the metal’s grain. Griddle Surface Care (non-chromium surfaces) It takes very little time and effort to keep the griddle attractive and performing at top effi... -
Page 13: Troubleshooting
TROUBLESHOOTING Symptoms What follows is a chart of Symptoms and Possible Causes to aid in diagnosing faults with the griddle. Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be checked. To test for a possible causes refer to the TEST section and locate the Possible Cause then refer to test to identify test procedures. -
Page 14: Possible Causes / Test
Service on this, or any other, LANG appliance must be performed by qualifi ed personnel only. Consult your Lang Authorized Service Agent Directory or call the factory at 1-800-807-9054, or WWW.STAR-MFG.COM For the service agent nearest you. BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. -
Page 15: 208/240Vac
48” 36” “24 ELEMENT HOOKUP 208V 240V INSTALL REMOVE JUMPER JUMPER 1 GRIDDLE ELEMENTS 2 GRIDDLE PILOT LAMP 3 CONTACTOR 4 JUMPER 5 TERMINAL BLOCK 6 TEMP. CONTROL BOARD 7 12 POSITION SWITCH 8 TOGGLE SWITCH 9 TRANSFORMER 10 PROBE NOTE: 60”... -
Page 16: 480Vac
LG36 Note: LG24 1. Add one more section for a single connection “48 2. Add two more sections for a 60” 3. This wiring diagram shows 1/2 section for a 72” model 4. Do not use more than 4 contactors to one transformer 1 GRIDDLE ELEMENTS 2 GRIDDLE PILOT LAMP... -
Page 18: Exploded View & Parts List
SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of it's contents is permitted. Model: 124S - 172S Selectronic Control Electric Griddle... - Page 19 PARTS LIST September 10, 2008, Rev G Model No: 124S, 124S-480V, 124SHE Selectronic Electric Griddle Part Number Description Number K9-XL-722-15 PLATE ASY 2’ SEL .5 GRV 124S, 124S-480V K9-XL-722-154 PLTEASY 2’ SEL.5GRVW/XLH12 124SHE 2E-41100-17 TEMP PROBE SEL LG GRIDDLE 124S, 124S-480V, 124SHE 2C-31004-02 TERM FEM 1/4 18/22GA INS PROBE CONNECTOR...
-
Page 20: 380Vm
PARTS LIST October 13, 2008, Rev G Model No: 136S, 136s-380VM, 136S-480V Selectronic Electric Griddle Part Number Description Number K9-XL-722-16 PLATE ASY 3’ SEL .5 GRV 136S, 480V 2E-41100-17 TEMP PROBE SEL LG GRIDDLE 136S, 480V K9-XL-228 BUCKET SLIDE ASSY K9-LG-BODY-3 BLANK BODY LG &... - Page 21 PARTS LIST September 10, 2008, Rev G Model No: 148S, 148S-480V, 148S-SC, 148S-WB Selectronic Electric Griddle Part Number Description Number K9-XL-719-4 PLATE ASY 4’SEL REAR GUTR 148S-WB, 148SR K9-XL-722-17 PLATE ASY 4’ SEL .5 GRV 148S K9-XL-722-174 PLTEASY 4’ SEL.5GRVW/XLH12 148SHE-480V 2E-41100-17 TEMP PROBE SEL LG GRIDDLE...
- Page 22 PARTS LIST September 10, 2008, Rev G Model No: 160S, 160S-480V, 160S-SC, 160S-WB, 160SHE Selectronic Electric Griddle Part Number Description Number K9-XL-719-5 PLATE ASY 5’SEL REAR GUTR 160S-WB, 160SR K9-XL-722-18 PLATE ASY 5’ SEL .5 GRV 160S K9-XL-722-184 PLATE ASY 5 GRV W/ XLH12 160SHE 2E-41100-17 TEMP PROBE SEL LG GRIDDLE...
- Page 23 PARTS LIST September 10, 2008, Rev G Model No: 172S, 172S-480V, 172S-SC Selectronic Electric Griddle Part Number Description Number K9-XL-722-19 PLATE ASY 6’ SEL .5 GRV 2E-41100-17 TEMP PROBE SEL LG GRIDDLE 2C-31004-02 TERM FEM 1/4 18/22GA INS PROBE CONNECTOR K9-XL-228 BUCKET SLIDE SUPPORT K9-XL-219-4...
- Page 24 DETAIL Control Panel Assembly (LPGS4-C shown) SK2307 Rev. B 7/7/08...
- Page 25 PARTS LIST October 13, 2008, Rev G Model No: Detail A, Control Panel Assembly Selectronic Electric Griddle Part Number Description Number 124S PNEL XL-LG SEL 2’ 208/240V K9-LGPS2-C 124S-480V PNEL XL-LG SEL 2’ 480V K9-LGPS2-U 124SHE PNEL SEL 2’ 208/240V W/CSE K9-LGPS2-C-W1 136S PANEL XL-LG SEL 3’...
- Page 26 PARTS LIST October 13, 2008, Rev G Model No: Detail A, Control Panel Assembly Selectronic Electric Griddle Part Number Description Number 2J-31601-01 PILOT LT 250V 6LEAD BLK LGPS2-C 2J-31601-01 PILOT LT 250V 6LEAD BLK LGPS3-C, LGPS3-U 2J-31601-01 PILOT LT 250V 6LEAD BLK LGPS4-C 2J-31601-02 PILOT LT 480V 6LEAD BLK...
