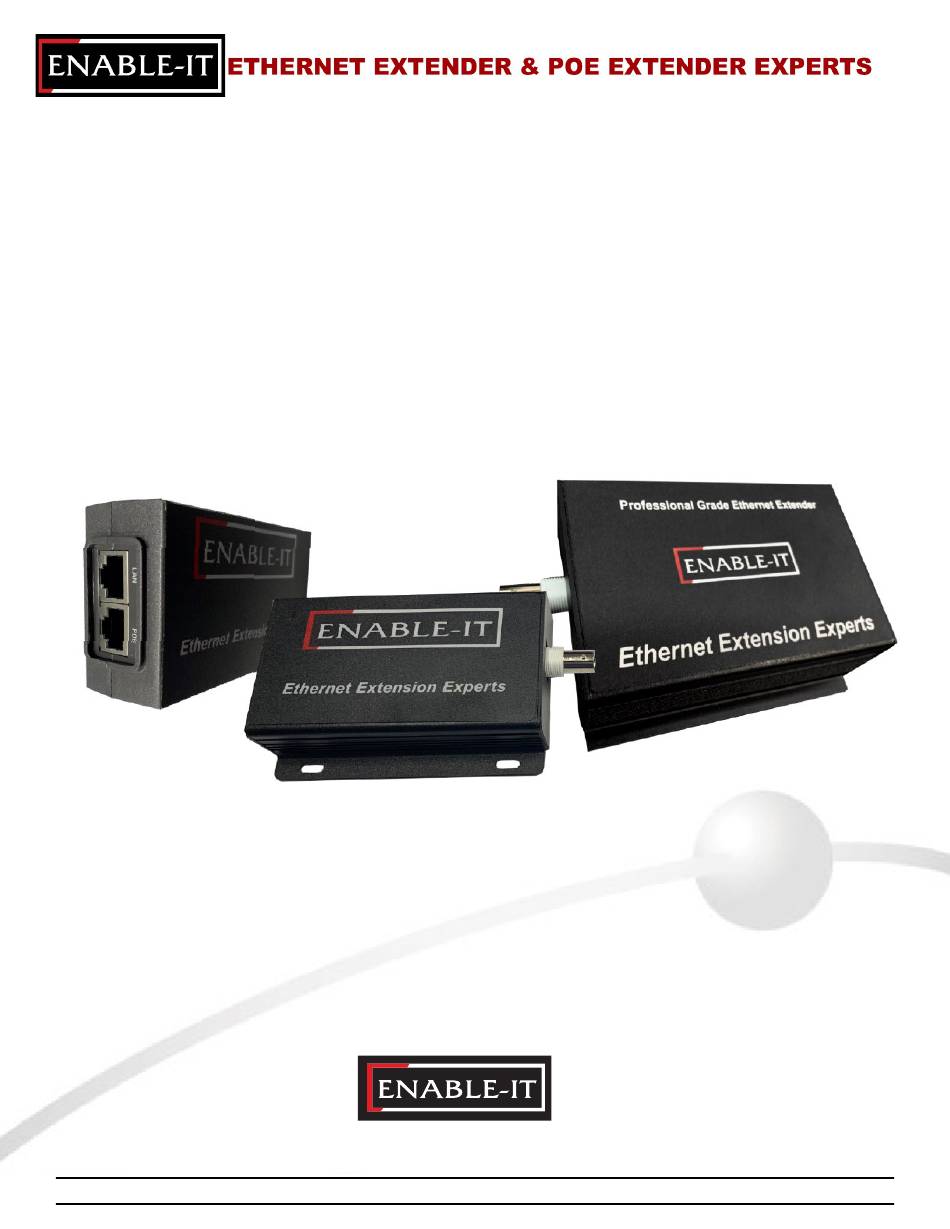

- Page 1 Enable-IT 865XSC PRO Gigabit Coax PoE Extender Kit Quickstart Guide Professional Grade Networking All Rights Reserved © 1982 - 2024 Enable-IT™, Inc.
- Page 2 Box Test. Step 1 - Attach the 60W 56V DC Gigabit PoE Injector and power adapter to the local 865XSC PRO unit and power up the unit. The Power LEDs will indicate the injector and 865XSC PRO unit is receiving power.
- Page 3 Attach the power adapters to both 865XSC PRO units. Attach your local Interlink cabling end to the 865XSC PRO CO unit Interlink port – Then do the same for the remote end and plug into the 865XSC PRO CPE unit Interlink port. The Sync LED’s will flicker in a sequence talking to each other until they go solid.
- Page 4 Returning Products for Warranty Repair Enable-IT warrants to the original purchaser of this described Product ("you" or the "End User") that, for the limited lifetime period commencing on the date the Product was purchased (the “Warranty Period"), the Product will be substantially free from defects in materials and workmanship under...
