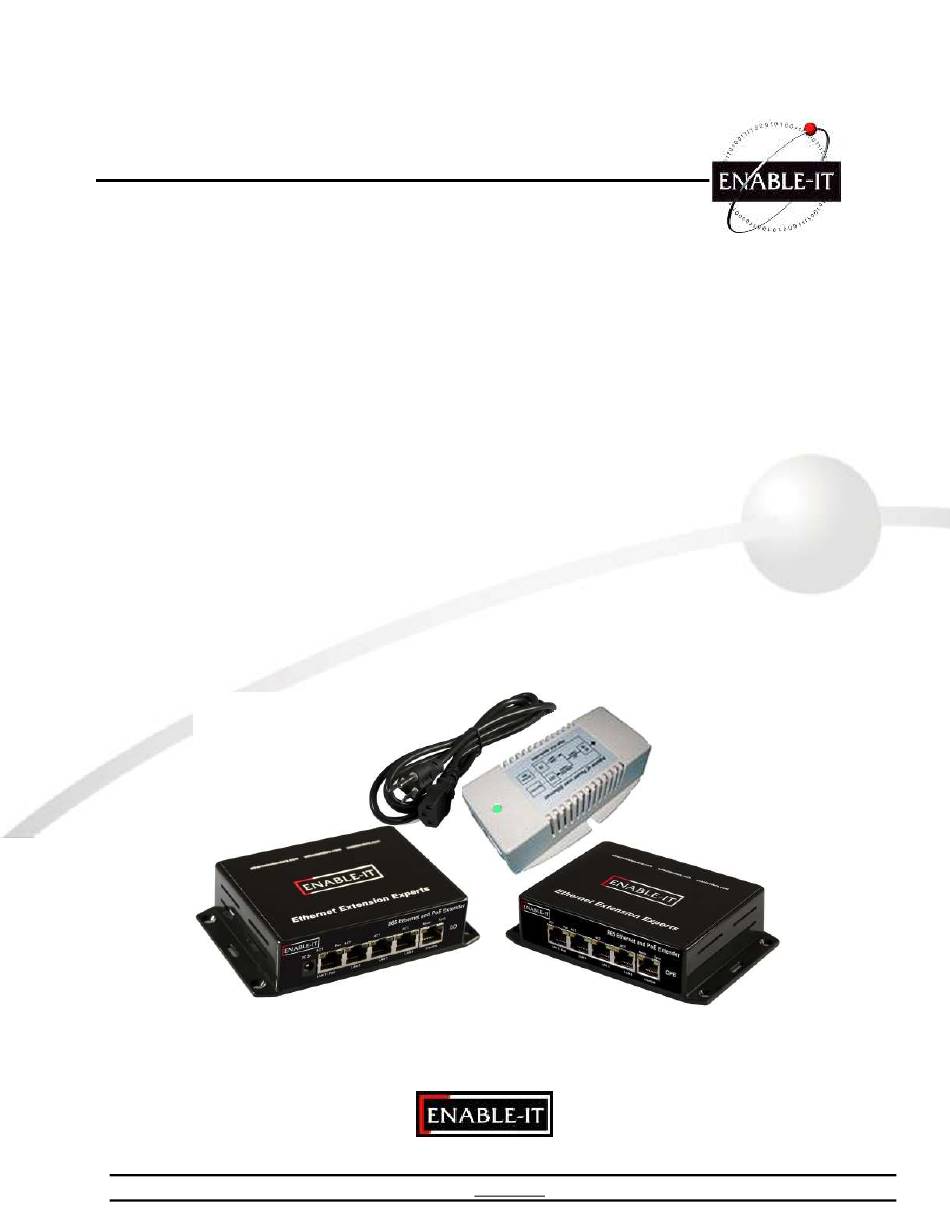

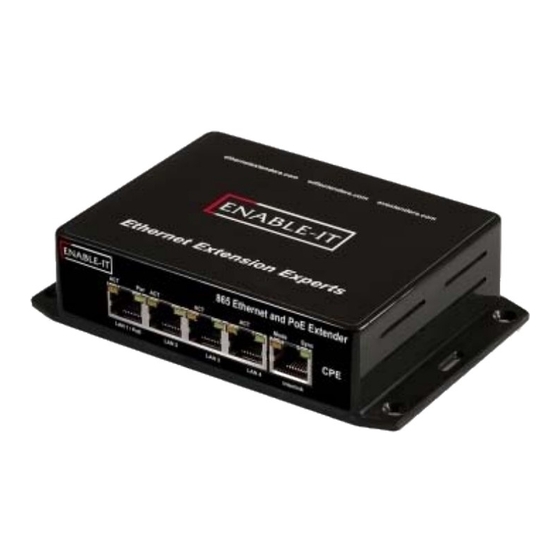

- Page 1 Ethernet Extension Experts Enable-IT 865 Rev D 56V PoE+ & Ethernet Extender Quickstart Guide All Rights Reserved 1997 - 2012 -IT NABLE - Proprietary and Confidential...
- Page 2 XTENDED THERNET The Enable-IT 865 PoE & Extended Ethernet Kit have a distance restriction of 3,500ft or 1,067m over 3-pair of Category 3 up to 4-pair Category 5e / CAT6 wiring from your LAN and power source to the remote PoE device. Therefore quick, simple site surveys and installation planning are highly recommended –...
- Page 3 865, connect your Ethernet LAN and PoE remote device to the 865 LAN ports and test connectivity. WARNING: Output LAN ports 1 & 2 on the 865 CPE are PoE enabled and not for use with non-PoE equipment as it may damage any non-PoE equipment.
- Page 4 Attach your local LAN to the 360 PoE injector Data IN port. Attach the power adapter to the 865 CO unit. Attach the 360 PoE+ injector to the 865 CO LAN1/PoE port with Ethernet patch cord provided. Apply power to the 360 PoE injector with the country power cord provided.
- Page 5 CO and CPE must match. If you turn 3 up on the CO you must do so for the CPE and vice-versa. Dip Switch 1: Toggles the 865 for either CO or CPE mode. (CO mode Up, CPE mode Down) ...
