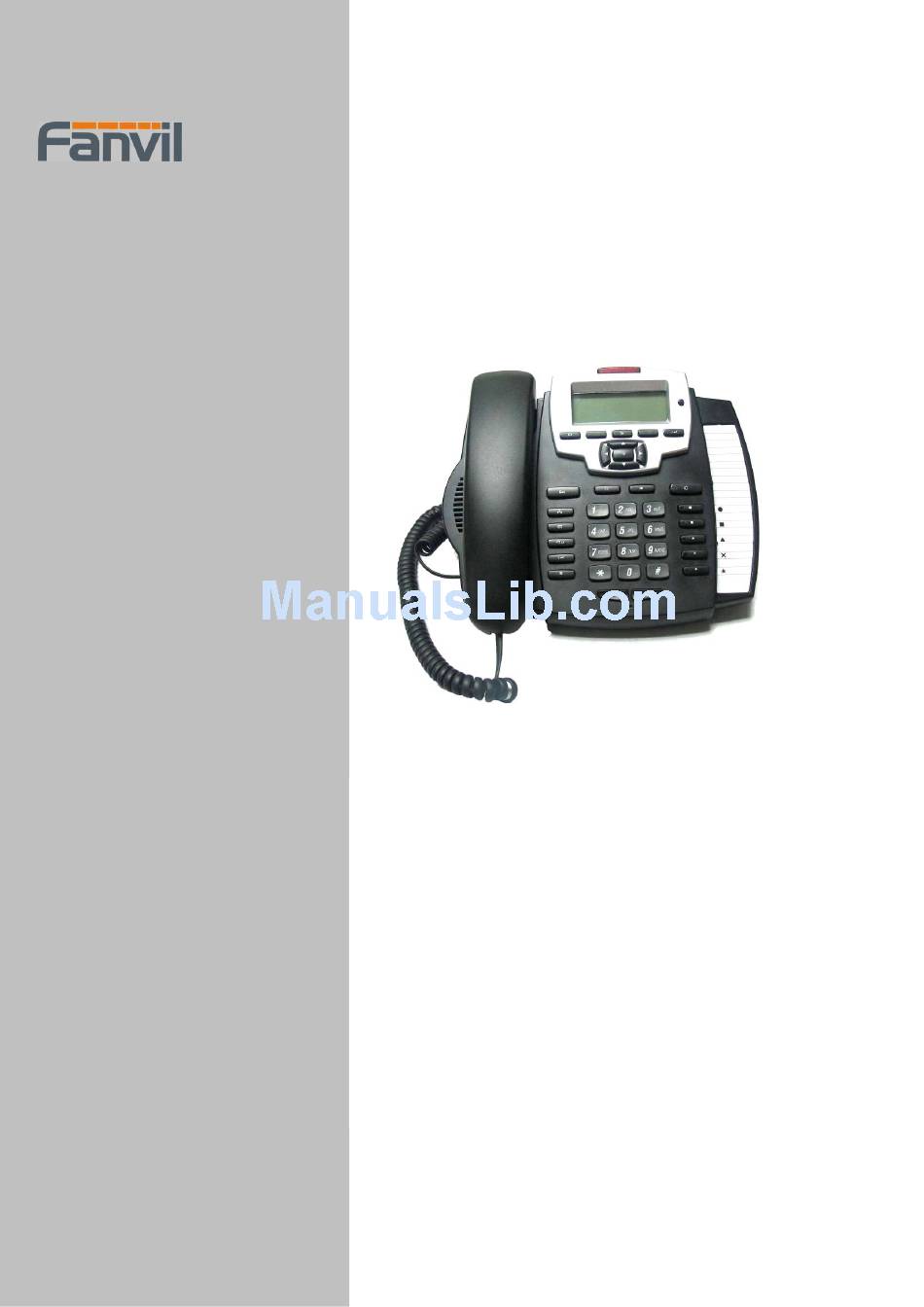

FV6030 VoIP Phone
Corporate Headquarters
Fanvil Technology Co., Ltd
Address: Unit 4A, Building NO.7,
Tian An Industrial Park, Nanshan
District, Shenzhen 518054 China
Web Site: www. Fanvil.com
Tel: +86 755 26502022
Fax: +86 755 26505858
User Manual
Version: V1.7.176.166
© 2005 Fanvil technology Co,. Ltd
All rights reserved.
This document is supplied by Fanvil Technology Co., Ltd, No part of
this document may be reproduced, republished or retransmitted in
any form or by any means whatsoever, whether electronically or
mechanically, including, but not limited to, by way of photocopying,
recording, information recording or through retrieval systems,
without the express written permission of Fanvil Technology Co.,
Ltd. Fanvil Technology Co., Ltd reserves the right to revise this
document and make changes at any time and without the
obligation to notify any person and/or entity of such revisions
and/or changes. Product specifications contained in this document
are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV6030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil FV6030

Summary of Contents for Fanvil FV6030

  • Page 1 © 2005 Fanvil technology Co,. Ltd All rights reserved. This document is supplied by Fanvil Technology Co., Ltd, No part of this document may be reproduced, republished or retransmitted in any form or by any means whatsoever, whether electronically or...

  • Page 2: Safety Notices

    Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device. Please use the external power supply that is included in the package. Other power supplies may cause damage to the phone, affect the behavior or induce noise.

  • Page 3: Table Of Contents

    Table of Content 1. Introducing FV6030 VoIP Phone ................. 5 1.1. Thank you for your purchasing FV6030 ..............5 1.2. Delivery Content ......................5 1.3. Keypad ........................... 5 1.4. Port for connecting ....................... 7 2. Initial connecting and Setting .................. 8 2.1.
  • Page 4 4.3.4. Phone ........................... 40 4.3.5. Maintenance ........................47 4.3.6. Security ..........................52 4.3.7. Logout ..........................58 4.4. Configuration via Keypad ..................59 4.4.1. Keypad introduction ......................59 4.4.2. Menu Tree ........................... 59 5. Appendix ........................61 5.1. Specification ........................ 61 5.1.1.

  • Page 5: Introducing Fv6030 Voip Phone

    1. Introducing FV6030 VoIP Phone 1.1. Thank you for your purchasing FV6030 Thank you for your purchasing FV6030, FV6030 is a full-feature telephone that provides voice communication over the same data network that your computer uses. This phone functions not...
  • Page 6 Key name Function Description menu In idle state，press the MENU key to call up the menu. Use this key to choose item in the menu. In the IDLE mode, use Up/down of this key to display net mode, IP address and gateway’s IP. In the navigation pick up mode, use this key to choose line to call out.

  • Page 7: Port For Connecting

    DC 9V Power port 5V/1A FV6030 is provided with two Ethernet cables and a power adaptor. Phone has two interfaces: WAN and LAN. Please refer to safety notes of this manual carefully before power adaptor is connected. - 7 -...

  • Page 8: Initial Connecting And Setting

    Initial connecting and Setting 2.1. connect the phone Step 1: Connect the IP Phone to the corporate IP telephony network. Before you connect the phone to the network, please check if your network can work normally. You can do this in one of two ways, depending on how your workspace is set up. Direct network connection—by this method, you need at least one available Ethernet port in your workspace.

  • Page 9: Basic Initialization

    If your VoIP phone registers into corporate IP telephony Server, your phone is ready to use. 2.2. Basic Initialization FV6030 is provided with a plenty of functions and parameters for configuration. User needs some network and VoIP knowledge so that user could understand the meanings of parameters. In order to make user use the phone more easily and convenient, there are basic configurations introduced which is mandatory to ensure phone calls.
  • Page 10 IP with PPPoE. Setting Static IP mode（static ADSL/Cable，or none PPPoE / DHCP network） Prepare the network’s parameters first. IP Address，Netmask， Default Gateway and DNS server IP address are needed. Please contact the service provider or technician of network. ，and Pressing twice，screen shows“7 Advanced”, then pressing Soft2(Enter)，screen will show “Enter Password”.
  • Page 11 displays“3 Network” Press Soft2 (Enter) to show “1 Net Mode”. After pressing Soft(Enter) and Soft2(Edit)，using to select until screen shows “<>DHCP”. Press Soft2(Save)， With “saved” displayed, screen will jump to show the net mode currently. Press Soft3 (Quit) four times quitting to stand-by status. Press to show “DHCP”，if there is “Negotiating…”shown on screen, it shows that phone is keep trying to search DHCP server or get IP;...

  • Page 12: Fv6030'S Basic Operation

    5 to select） , after getting dialing tone, you could begin to dial number. After finishing it, press # and FV6030 will send the number and call the number. When you hear a ringback tone and screen shows the callee’s number, it shows that the person you called is ringing. If callee answers the call, you can begin to talk and your phone will keep showing callee’s number and counting time.

  • Page 13: End Calls

    Multi-line calls FV6030 supports 5 SIP lines max，that is user could use 5 SIP accounts to register and make calls. User could use programmable key as SIP line key. When a line key is pressed, phone will use the server to call.

  • Page 14: Call Hold

    3.8. Call records FV6030 supports 100 items of missed call, 100 items of incoming call, and 100 items of dialed call. If the records are full, the newest will replace the oldest. If phone’s power cut or reboot, call records will be discarded.

  • Page 15: Special Function Key

    or press Soft2 (Detail) to check the details of this record, then press Soft2 (Dial) again to change the current number. Pressing Soft2(Dial) will call this number directly if user don’t modify the number. If there is no missed call, screen will show “List Is Empty”. Incoming call Press and switch the menu to “Incoming Call”...

  • Page 16: Sms Function

    use BLF feature. When this configuration enable, the phone will subscribe the status of pointed phone each 60s: LED off means Idled, LED flash means ring and LED on means busy. /m MWI (Message waiting indication), means the number of this key is the number of voicemail User can configure MWI function according to the above chart: 8000 is mailbox number, @1 is using SIP1, user also can configure @2(SIP2),the rest lines can be deduced by analogy, if no use, is 8000/m,it will pass the SIP1 line in default,/m means MIW function is using.

  • Page 17: Call Pickup

    key to check the sender’s number and message content, next, press Soft2(Reply)key and input message content, finally, press Soft2(Send) again to reply this message. Note: while user browses the message numbers, new messages will be marked by “new”; when user edits message, press # key that to switch input method,e.g. ABC (uppercase English input), abs (lowercase English input), 123(digit input), Korean (Korean input(if your phone’s firmware version supports Korean).

  • Page 18: Join Call

    *1* means appointed prefix code. After making the above configuration, C can dial *1* plus B’phone number to pick up A’s call. User can set prefix in random, in the case of no affecting current dialing rules. 3.11. join call When B is calling C, A can join in the existing call by inputting an appointed prefix numbers plus B or C number, if B or C also supports join call The following chart shows how to configure an appointed prefix in dialpeer to have join call...

  • Page 19: Web Configuration

    4. Web configuration 4.1. Introduction of configuration 4.1.1. Ways to configure FV6030 has three different ways to different users. se phone keypad. se web browser（recommendatory way）. se telnet with CLI command. 4.1.2. Password Configuration There are two levels to access to phone: root level and general level. User with root level can browse and set all configuration parameters, while user with general level can set all configuration parameters except SIP (1-5) or IAX2’s that some parameters can not be changed, such as server...

  • Page 20: Basic

    4.3.1. BASIC 4.3.1.1. Status Status Field name Explanation Shows the configuration information on WAN and LAN port, Network including the connect mode of WAN port (Static, DHCP, PPPoE), MAC address, the IP address of WAN port and LAN port, ON or OFF of DHCP mode of LAN port.
  • Page 21 Please select the proper network mode according to the network condition. FV6030 provide three different network settings: Static: If your ISP server provides you the static IP address, please select this mode, then finish Static Mode setting. If you don’t know about parameters of Static Mode setting, please ask your ISP for them.

  • Page 22: Call Log

    Display detailed information that you manual config. Choose DHCP MODE， click 【 NEXT】 can config SIP(default SIP1)simply, also can browse too. Click【BACK】can return to the last page. Like Static IP MODE。 Choose PPPoE MODE， click 【NEXT】 can config the PPPoE account/password and SIP(default SIP1)simply, also can browse too.

  • Page 23: Network

    MMI SET Field name explanation Language Set Set the language of phone, English is default. The greeting message will display on lcd when phone is idle. It can Greeting Message support 16 chars. the default chars are VOIP PHONE. 4.3.2. Network 4.3.2.1.
  • Page 24 Get MAC Time Shows the time of getting MAC address Please select the proper network mode according to the network condition. FV6030 provide three different network settings: Static: If your ISP server provides you the static IP address, please select this mode, then finish Static Mode setting.

  • Page 25: Lan Config

    Notice: 1） Click “Apply” button after finished your setting, IP Phone will save the setting automatically and new setting will take effect. 2）If you modify the IP address, the web will not response by the old IP address. Your need input new IP address in the address column to logon in the phone.
  • Page 26 In chart 1, there is a layer 2 switch without setting VLAN. Any broadcast frame will be transmitted to the other ports except the send port. For example, a broadcast information is sent out from port 1 then transmitted to port 2,3and 4. In chart 2, red and blue indicate two different VLANs in the switch, and port 1 and port 2 belong to red VLAN, port 3 and port 4 belong to blue VLAN.

  • Page 27: Qos Configuration

    QoS Configuration Field name explanation VLAN Enable Before select it to enable VLAN, you need enable Bridge mode in LAN config. Enable VLAN ID check by selecting it. After enable VLAN ID VLAN ID Check Enable check, if VLAN ID of a data package is not the same with the phone’s or a data package do not have VLAN ID, the data package will be discarded.

  • Page 28: Service Port

    4) Startup VLAN, if set Voice/Data VLAN differentiated as data untaged, then the packet of the signal/voice will use the Voice VLAN ID as the tag, but the data packets will not take the VLAN tag. 5) If Disable the VLAN, regardless to set the Voice/Data VLAN differentiated or not, all packets will not take the VLAN tag;...

  • Page 29: Dhcp Server

    4.3.2.5. DHCP SERVER DHCP SERVER Field name explanation DHCP Leased Table IP-MAC mapping table. If the LAN port of the phone connects to a device, this table will show the IP and MAC address of this device. Shows the DHCP Lease Table， the unit of Lease time is Minute. Lease Table Name Specify the name of the lease table Start IP...
  • Page 30 Select name of lease table, click the Delete button will delete the selected lease table from DHCP lease table. Select DNS Relay, the default is enable. Click the Apply button to DNS Relay become effective. Notice: 1）The size of lease table can not be larger than the quantity of C network IP address. We recommend you to use the default lease table and not modify it.

  • Page 31: Voip

    Server Set SNTP Server IP address. Time Zone Select the Time zone according to your location. Time Out Set the time out, the default is 60 seconds. 12 Hours Systems Swich the time mechanism between 12 hours and 24 hours. Default is 24 hours mode SNTP Select the SNTP, and click Apply to make the SNTP Times...

  • Page 32: Sip Config

    SIP Config Field name explanation Choose line to set info about SIP, there are 5 lines to choose. You can switch by 【Load】 button. Register Status Shows if the phone has been registered the SIP server or not; or so, show Unapplied; Server Name Set the server name.
  • Page 33 Server Address Input your SIP server address. Server Port Set your SIP server port. Account Name Input your SIP register account name. Password Input your SIP register password. Phone Number Input the phone number assigned by your VoIP service provider. Phone will not register if there is no phone number configured.
  • Page 34 Enable PRACK Enable or disable SIP PRACK function, suggest use the default config. Set more parameters in contact field; connection with SEM Long Contact server Enable URI Convert Convert # to %23 when send the URI. Dial Without Register Set call out by proxy without registration; Ban Anonymous Call Set to ban Anonymous Call;...

  • Page 35: Iax2 Config

    patckets sent from server， phone will use the source IP address, not the address in via field. Enable GRUU Set to support GRUU Enable Displayname Set to make quotation mark to displayname as the phone sends Quote out signal, in order to be compatible with server. 4.3.3.2.

  • Page 36: Stun Config

    Refresh Time Set expire time of IAX2 server register, you can set it between 60 and 3600 seconds. Enable Register Start to register the IAX2 server or not by selecting it or not. Enable G.729 Enable or disable code G.729 by selecting it or not 4.3.3.3.
  • Page 37 STUN Server Port Set your SIP STUN Server Port Set STUN Effective Time. If NAT server finds that a NAT STUN Effect Time mapping is idle after time out, it will release the mapping and the system need send a STUN packet to keep the mapping effective and alive.

  • Page 38: Dial Peer

    DIAL PEER Field name explanation There are two types of matching conditions: one is full matching, the other is prefix matching. In the Full matching, you need input your desired phone number in this blank, and then you need dial the Phone number phone number to realize calling to what the phone number is mapped.
  • Page 39 4) Rep: It means that phone will replace the number with length and number appointed. You can refer to the following examples of different alias application to know more how to use different aliases and this dial rule. Call Mode Select differenct signal protocol, SIP or IAX2 Suffix Set suffix, this is optional config item.

  • Page 40: Phone

    This setting will realize speed When you dial “2”, dial function, after you dialing the SIP1 server will the numeric key “2”, the number receive 33334444 after all will be sent out. The phone will automatically When dial send out alias number adding “8309“, SIP1 your dialed number, if your...

  • Page 41: Dsp Configuration

    DSP Configuration Field name explanation First Codec The fist preferential DSP codec: G.711A/u, G.722, G.723, G.729 Second Codec The second preferential DSP codec: G.711A/u, G.722, G.723, G.729 Third Codec The third preferential DSP codec: G.711A/u, G.722, G.723, G.729 Forth Codec The forth preferential DSP codec: G.711A/u, G.722, G.723, G.729 Fifth Codec The fifth preferential DSP codec: G.711A/u, G.722, G.723, G.729...

  • Page 42: Call Service

    Call Service Field name explanation Hotline Specify Hotline number. If you set the number, you can not dial any other numbers. No Answer Specify No Answer Time Time Set Prefix in peer to peer IP call. For example: what you want to dial is P2P IP Prefix 192.168.1.119, If you define P2P IP Prefix as 192.168.1., you dial only #119 to reach 192.168.1.119.
  • Page 43 Record beyond its set value, the phone will remind the caller to record. Incoming Select it or not to Enable or disable Incoming Record Playing Record Playing Use Record Select it or not to Enable or disable Use Record Server. Server Set Add/Delete Black list.

  • Page 44: Digital Map Configuration

    send the prefix and external number totaly to ther server. for example, there is a rule 9,xxxxxxxx in the digital map table. after dialing 9, phone will send the secondary dial tone, user may keep going dialing. after finished, phone will call the number which starts with 9, actually the number sent out is 9-digit with 9.

  • Page 45: Phone Book

    Cause 99 to be dialed after 4 seconds. Cause any number started with 9911 to be dialed 4 seconds after dialing ceases. Notice: End with “#”, Fixed Length, Time out and Digital Map Table can be used simultaneously, System will stop dialing and send number according to your set rules. 4.3.4.4.
  • Page 46 Function Key Field name explanation Contrast Set contrast of screen Luminance Set luminance of screen Set a function key as listening record in server. Select key event in MWI Number a function key type, and fill F_MWI in the corresponding table. After you set it, you can pick up or handsfree, then press this function key to listen record in server.

  • Page 47: Maintenance

    F_CFWD,or F_CALLERS in the corresponding right table. For example: 4.3.5. Maintenance 4.3.5.1. Auto Provision Auto Provision Field name explanation Current Config Version Show the current config file’s version. Server Address Set FTP/TFTP/HTTP server IP address for auto update. The address can be IP address or Domain name with subdirectory.

  • Page 48: Syslog Configuration

    Syslog server receives the messages from clients, and classifies them based on priority and type. Then these messages will be written into log by some rules which administrator can configure. This is a better way for log management. 8 levels in debug information: Level 0---emergency: This is highest default debug info level.
  • Page 49 Config Setting Field name explanation you can save all changes of configurations. Click the Save button, Save Config all changes of configuration will be saved, and be effective immediately. . Backup Config Right clicks on “Right click here…” and select “Save Target As….” then you will save the config file in .txt format user can restore factory default configuration and reboot the phone.

  • Page 50: Account Config

    Update Field name explanation Click the browse button, find out the config file saved before or Web Update provided by manufacturer, download it to the phone directly, press “Update” to save. You can also update downloaded update file, logo picture, ring, mmiset file by web. Server Set the FTP/TFTP server address for download/upload.

  • Page 51: Account Configuration

    Account Configuration Field name explanation Keyboard Password Set the password for entering the setting menu of the phone by the phone ‘s key board. The password is digit. This table shows the current user existed. User Name Set account user name. User Level Set user level, Root user has the right to modify configuration, General can only read.

  • Page 52: Security

    If you modified some configurations which need the phone’s reboot to be effective, you need click the Reboot, then the phone will reboot immediately. Notice: Before reboot, you need confirm that you have saved all configurations.. 4.3.6. Security 4.3.6.1. MMI Filter MMI Filter User could make some device own IP, which is pre-specified, access to the MMI of the phone to config and manage the phone.

  • Page 53: Firewall Configuration

    Notice: Do not set your visiting IP outside the MMI filter range, otherwise, you can not logon through the web. 4.3.6.2. Firewall Firewall Configuration In this web interface, you can set up firewall to prevent unauthorized Internet users from accessing private networks connected to the Internet (input rule), or prevent unauthorized private network devices from accessing the Internet (output rule).

  • Page 54: Nat Config

    In_access enable Select it to Enable in_ access rule out_access enable Select it to Enable out_ access rule Input/Output Specify current adding rule by selecting input rule or output rule. Deny/Permit Specify current adding rule by selecting Deny rule or Permit rule. Protocol Type Filter protocol type.
  • Page 55 DMZ config： In order to make some intranet equipments support better service for extranet, and make internal network security more effectively, these equipments open to extranet need be separated from the other equipments not open to extranet by the corresponding isolation method according to different demands.
  • Page 56 NAT Configuration Field name explanation IPSec ALG It is an encryption technology. Select it to enable IPSec ALG, the default is enable FTP is a service of connection layer which can transform intranet IP FTP ALG into extranet IP when intranet IP is sending out packet. Select it to enable FTP ALG, the default is enable PPTP ALG Select it enable PPTP ALG, the default is enable...

  • Page 57: Vpn Config

    Outside Port Set the WAN port of the NAT mapping Notice: After finish setting, click the Add button to add new mapping table; click the Delete button to delete the selected mapping table. Shows the outside WAN port IP address and the inside LAN port IP address. Outside IP Set the outside Wan port IP address of DMZ.

  • Page 58: Logout

    VPN Configuration Field name explanation VPN IP Shows the current VPN IP address Select UDP Tunnel (VPN Tunnel) or VPN L2TP. You can choose only one for current state. After you select it, you’d better save configuration and reboot your phone. Enable VPN Select it or not to enable or disable VPN；...

  • Page 59: Configuration Via Keypad

    Click Logout，and you will exit web page. If you want to enter it next time, you need input user name and password again. 4.4. Configuration via Keypad 4.4.1. Keypad introduction User can do brose, modify or cancel via screen menu by using and Soft1/Soft2/Soft3 and Soft1 to select the sub-menu.
  • Page 60 - 60 -...

  • Page 61: Appendix

    5. Appendix 5.1. Specification 5.1.1. Hardware Item FV6030 Adapter Input: 100-240V (Input/Output) Output: 5V 1A or PoE(802.3af，optional) port 10/100Base- T RJ-45 for LAN 10/100Base- T RJ-45 for PC Power Consumption Idle: 2.0W/Active: 2.3W LCD Size 128*64 dot matrix LCD Operation Temperature 0～40℃...

  • Page 62: Network Features

    Support path, gruu Support SRTP Support SIP Privacy 5.1.3. Network features WAN/LAN: support bridge and router model Support PPPoE for xDSL Support basic NAT and NAPT Support DHCP client on WAN Support DHCP server on LAN Support main DNS and secondary DNS server Support VLAN (optional: voice vlan/ data vlan) Support DMZ Support DNS Relay, SNTP Client, Firewall...
