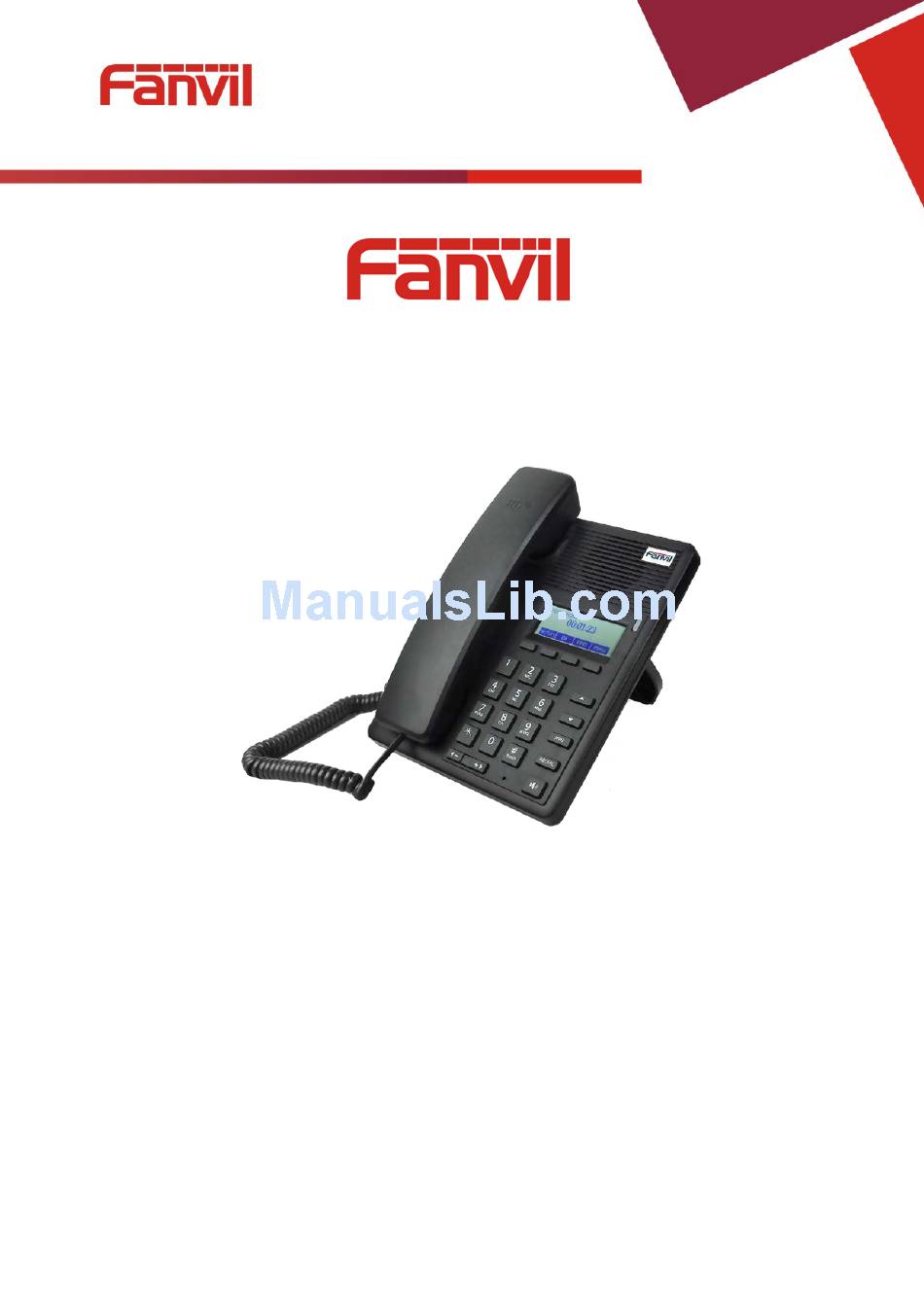

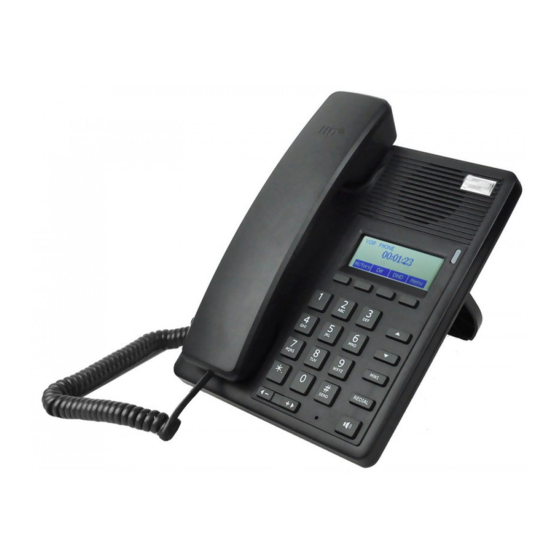

F52 VoIP Phone User Manual
Corporate Headquarters
Fanvil Technology Co., Ltd
Address: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District,
Bao'An, Shenzhen, 518101 P.R. China
Web Site: www. Fanvil.com
Tel: +86 755 26402199
Fax: +86 755 26402618
Fanvil Technology Co., Ltd
HQ Add: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen, 518101 P.R. China
Tel: +86-755-2640-2199
Fax: +86-755-2640-2618
Email: fanvil@fanvil.com
www.fanvil.com
Beijing Tel:+86-10-5753-6809
Suzhou Tel: +86-512-6592-0605
SEA Tel: +60-3-203-50737
