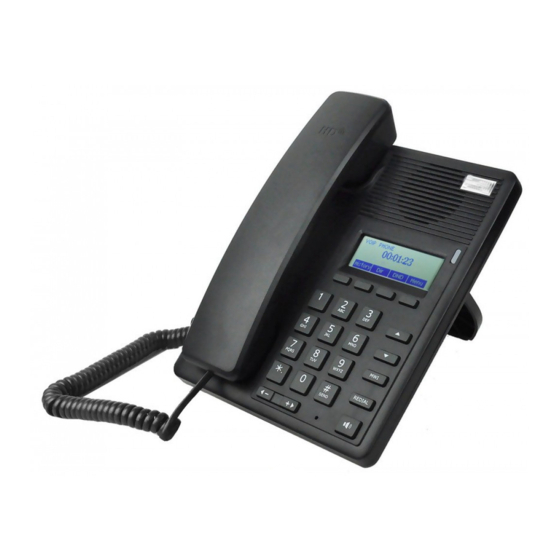

F52 VoIP Phone
User Manual
District, Bao'An,
th

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil F52

Summary of Contents for Fanvil F52

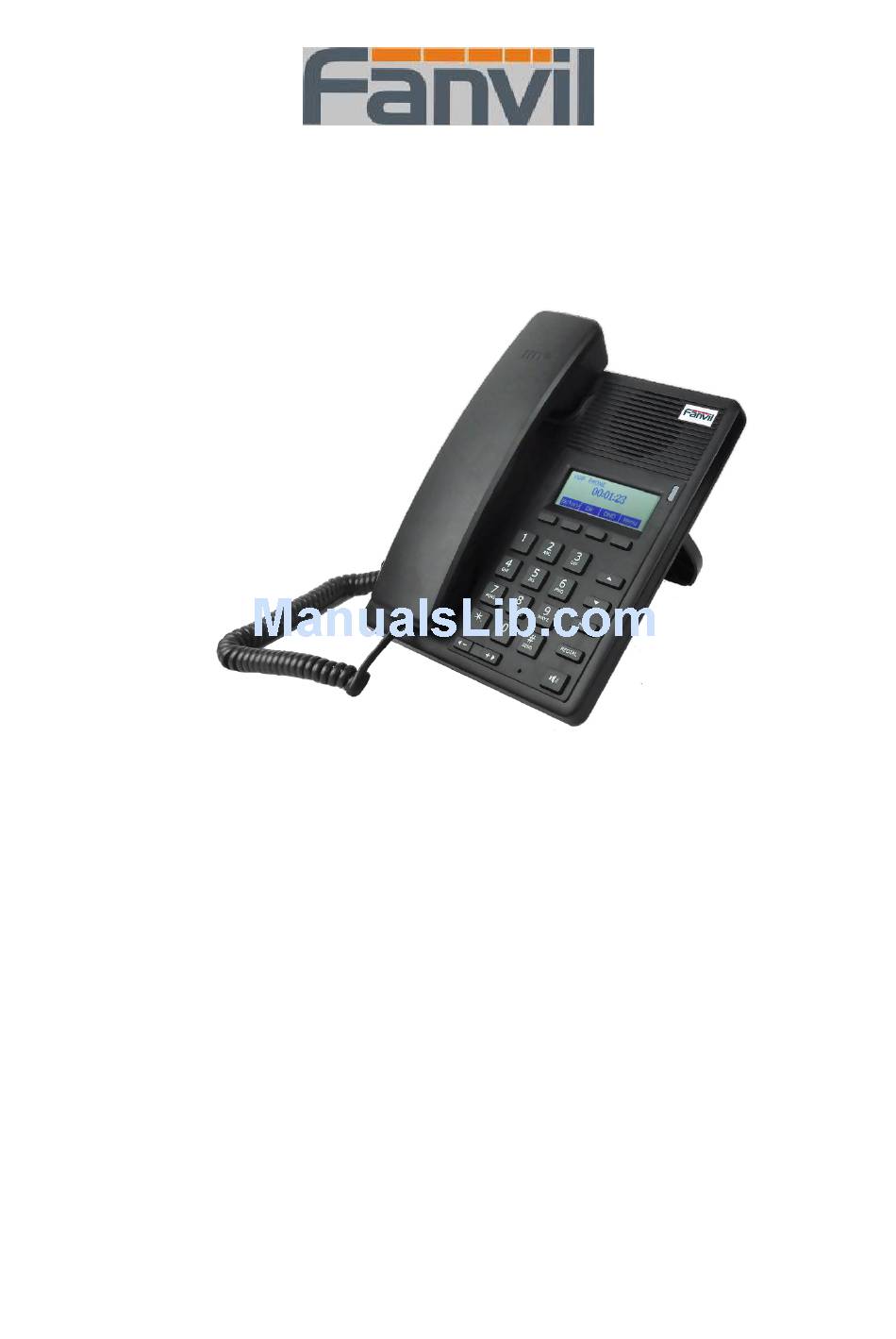

  • Page 1 F52 VoIP Phone User Manual Fanvil Technology Co., Ltd Address:Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35 District, Bao’An, Shenzhen, 518101 P.R. China. Web Site: www.fanvil.com Tel: +86 755 26402199 Fax: +86 755 26402618...

  • Page 2: Safety Notices

    Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device.  Please use the external power supply that is included in the package. Other power supplies may cause damage to the phone, affect the behavior or induce noise.

  • Page 3: Table Of Contents

    2.1.2 Power adapter connection ..............11 ASIC NITIALIZATION ..................11 2.2.1 Network Settings ................... 11 3 THE BASIC FUNCTION OF F52 ............13 AKING A CALL ....................13 3.1.1 Call Device ..................... 13 3.1.2 Call Methods ..................13 NSWERING A CALL ....................
  • Page 4 ....................19 DTMF ..................... 19 ASSWORD ....................19 URL & A URI ................19 CTION CTIVE 5.10 XML ....................20 6 THE BASIC SETTINGS OF F52 ............20 EYBOARD ......................20 CREEN ETTINGS ....................20 ETTINGS ....................20 OICE OLUME ....................
  • Page 5 8.3.8 LOGOUT ....................86 9 APPENDIX ................... 87 9.1.1 S PECIFICATION ................87 ARDWARE 9.1.2 Voice features ..................... 87 9.1.3 Network features ..................88 9.1.4 Maintenance and management ..............89  9.2 D IGIT CHARACTER MAP TABLE ................89...

  • Page 6: Introducing F52 Voip Phone

    The Ethernet cable The power supply Attentions: The F52 may cause damage if you do not use a power adapter with F52. Power adapter specifications due to different areas or differentiated shipments, if the product supplied power adapter can not be used locally, please consult your local dealer.

  • Page 7: Keypad

    1.3 Keypad Key name Function Description Navigation key assist users for operating more Navigation convinient. 1. In the hook off/hands-free mode, use the key to dial the last call number; 2. In stand-by mode, it has a function to check the Outgoing Call.

  • Page 8: Port For Connecting

    nf/Close and so on. Digital Inputting the phone number or DTMF keyboard 1.4 Port for connecting Port Name Description Input: 5V AC, 1A Power swtich 10/100M Connect it to Network 10/100M Connect it to PC Port type: RJ-9 connector Headset 1.5 Icon introduction Icon Description...

  • Page 9: Led Status Introduction

    DND(Do not Disturb) In hand-free mode In hook mode Missed call Call forward 1.6 LED Status introduction Table 1 Power Indication LED LED Status Description Steady red Power on. Fast Blinking red There is an incoming call. Power off.

  • Page 10: Initial Connecting And Settings

    2.2.1—Network Settings. 2. No broadband router Connect one end of the network cable to the F52’s WAN port, the other end is conneted to your broadband modem’s LAN port, so that the completion of the network hardware connections. In most cases, if you are using a TV cable broadband, you must configure your network settings to DHCP mode: if you are using ADSL, you must set your F52 to PPPOE mode.

  • Page 11: Power Adapter Connection

    1. Plug power adapter to power socket. 2. Plug power adaptor’s DC output to the DC5V port of F52 to start up. 3. There will be displayed black line and “INITIALIZING” on the screen. After finishing startup, phone will show greeting, current date and time and so forth.
  • Page 12 4. The screen will show the current information. Press Del to delete it, then input your PPPoE user and password and press Save. 5. Press Back six times to return to the idle screen. 6. Check the status. If the screen shows “Negotiating…” it shows that the phone is trying to access to the PPPoE Server;...

  • Page 13: The Basic Function Of F52

    3. Hands-free Dialing Press the speakerphone key and hear a dial tone, you can start dialing. After entering the destination number, press the [#] key, F52 can immediately start connecting with each other. When you hear the beep ... beep ... long beep, the other phone started ringing, until the other party pick up the handset or use the speakerphone when you can start talking.

  • Page 14: Answering A Call

    recently dialed number one. Note that you restart the phone, the system will clear the call log, dial [Redial] key at this time will be invalid. 3.2 Answering a call Answering an incoming call： 1. If you have no other line telephone, lift the handset using, or press the Speaker button/ Answer softkey to answer using the speaker phone.

  • Page 15: Call Waiting

    2. If there are more than one call on hold, press the line button, and the Up/Down button to highlight the call, then press the Unhold button to retrieve the call. 3.6 Call Waiting 1. Press Menu ->Features->Enter->Call Waiting->Enter. 2. Use the navigation keys to active or inactive call waiting. 3.

  • Page 16: Advanced Function Of F52

    Advanced function of F52 4.1 Click to dial When user A browses in an appointed Web page, user A can click to call user B via a link (this link to user B), then user A’s phone will ring, after A hooks off, the phone will dial to B.

  • Page 17: Memo

    Memo 4.4.2 You can add some memos to record some important things to remind you. Press Menu->Application->Memo->Enter->Add. There are some options to configure: Mode, Date, Time, text, Ring. When the configuration is completed, press Save. Voice Mail 4.4.3 1) Press Menu->Application->Voice Mail->Enter. 2) Use the navigation keys to highlight the line for which you want to set, press Edit, and use the navigation key to turn on the mode, and the input the number.

  • Page 18: Other Functions Of F52

    Other functions of F52 5.1 Auto Handdown Press Menu ->Features-> Enter->Auto Handdown-> Enter. 2. Set the Mode Enable through the navigation key, then set Time, unit is minute, then press Save. 3. When the call ends, after the time that you have set, the phone will back to the idle interface.

  • Page 19: Power Light

    2. Enable the function through the navigation key, and then Save. 3. Call out others, if he is in busy, it will pop up a prompt Call Completion Waiting number? Press OK, when he is in idle, it will pop up a prompt Call Completion Call number? Press OK, the phone will call out the number automatically.

  • Page 20: Push Xml

    Enter the web page of the phone->PHONE->FEATURE, input Push XML Server(e.g. PC’IP), then PC can push text, SMS, phonebook, advertisement,, execute etc. to phone to update the message or the phone makes an action. The Basic Settings of F52 6.1 Keyboard 1. Press Menu ->Settings-> Enter->Basic Settings->...

  • Page 21: Voice Volume

    2. You can enter the message and press Save, it will display in the phone screen when the phone start up. 6.7 Language 1. Press Menu ->Settings-> Enter->Basic Settings-> Enter->Language ->Enter. 2. F52 support three languages, you can use the navigation keys to choose. The default two languages are English and Chinese.

  • Page 22: Advanced Settings Of F52

    Advanced Settings of F52 7.1 Accounts Press Menu->Enter->Advanced settings, and then input the password to enter the interface, the default password is 123. You can set it through the web page. Then choose Account then press Enter, you can do some sip settings.

  • Page 23: Web Configuration

    Web Configuration 8.1 Introduction of configuration Ways to configure 8.1.1 F52 has three different ways to different users.  Use phone keypad.  Use web browser (recommendatory way).  Use telnet with CLI command. Password Configuration 8.1.2 There are two levels to access to phone: root level and general level. User...

  • Page 24: Configuration Via Web

    After you configure the IP phone, you need click save button in config under Maintenance in the left catalog to save your configuration. Otherwise the phone will lose your modification after power off and on. 8.3 Configuration via WEB BASIC 8.3.1 8.3.1.1 STATUS...
  • Page 25 Wizard Please select the proper network mode according to the network condition. F52 provide three different network settings:  Static: If your ISP server provides you the static IP address, please select this mode, and then finish Static Mode setting. If you don’t know about parameters of Static Mode setting, please ask your ISP for them.
  • Page 26 IP Address Input the IP address distributed to you Input the Netmask distributed to you. Subnet Mask Input the Gateway address distributed to you. IP Gateway Set DNS domain postfix. When the domain which DNS Domain you input cannot be parsed, phone will automatically add this domain to the end of the domain which you input before and parse it again.
  • Page 27 Display detailed information that you manual config. Choose DHCP MODE, click【Next】can config SIP (default SIP1) simply, also can browse too. Click Back can return to the last page. Like Static IP MODE. Choose PPPoE MODE, click 【Next】 can config the PPPoE account/password and SIP (default SIP1) simply, also can browse too.

  • Page 28: Call Log

    Call log Field name explanation Start Time Display the start time of the outgoing record. Duration Display the conversation time of the outgoing record. Dialed Calls Display the account/protocol/line of the outgoing record. 8.3.1.4 LANGUAGE LANGUAGE Field name Field name Language Set the language of phone, English is default.

  • Page 29: Network

    NETWORK 8.3.2 8.3.2.1 WAN Status The current IP address of the phone Active IP Address Curren Subenet The current Netmask address Mask MAC Address The current MAC address of the phone Current IP Gateway The current Gateway IP address MAC Timestamp Shows the time of getting MAC address...
  • Page 30 Please select the proper network mode according to the network condition. F52 provide three different network settings:  Static: If your ISP server provides you the static IP address, please select this mode, and then finish Static Mode setting. If you don’t know about parameters of Static Mode setting, please ask your ISP for them.

  • Page 31: Lan Config

    Note: 1) Click “Apply” button after finished your setting, IP Phone willsavethe setting automatically and new setting will take effect. 2) If you modify the IP address, the web wills not response by the old IP address. Your need input new IP address in the address column to logon in the phone.
  • Page 32 the data stream from the WAN port to the LAN port of the phone. Select Bridge Mode or not: If you select Bridge Enable Bridge Mode, the phone will no longer set IP address for Mode LAN physical port,LAN and WAN will join in the same network.
  • Page 33 In chart 1, there is a layer 2 that switches without setting VLAN. Any broadcast frame will be transmitted to the other ports except the send port. For example, a broadcast information is sent out from port 1 then transmitted to port 2,3and 4. In chart 2, red and blue indicate two different VLANs in the switch, and port 1 and port 2 belong to red VLAN, port 3 and port 4 belong to blue VLAN.
  • Page 34 QoS & VLAN Configuration Field name explanation Link Layer Discovery Protocol (LLDP) Settings Enable LLDP by selecting it. Enabel LLDP After enabling LLDP Learn, telephone can automatically learn the data of DSCP, 802.1p, VLAN ID from the switch. If the data is different from the Enable Learning data of the LLDP server, telephone will change its Funcion...

  • Page 35: Service Port

    VLAN Specify the value of the WAN Port VLAN ID, the WAN Port VLAN ID range of the value is 0-4095. SIP 802.1p Priority Specify the value of the sip 8021.p priority, the range of the value is 0-7. Audio 802.1p Specify the value of the audio 802.1p priority, the Priority range of the value is 0-7.
  • Page 36 http://192.168.1.70:8090. Before using the https, you must download https authentication certification into the phone, then set web browser port, the default is 443 port, if you HTTPS Port want to enhance system safety, you'd better change it into non-443 standard port. You can access to the web in https after rebooting the phone.
  • Page 37 the IP and MAC address of this device. Shows the DHCP Lease Table， the unit of Lease time is Minute. Lease Table Name Specify the name of the lease table. Start IP Address Set the start IP address of the lease table. Set the end IP address of the lease table, the End IP Address network device connected to LAN port will get IP...
  • Page 38 TIME&DATE Field Name Explanation Simple Network Time Protocol (SNTP) Settings Enable SNTP by selecting it. Enable SNTP Enable DHCP Time Enable DHCP Time by selecting it, then the phone will automatically synchronize the standard time. Primary Server Set SNTP Primary Server IP address. Secondary Server Set SNTP Secondary Server IP address.

  • Page 39: Voip

    Date format Specify the date format. Daylight Saving Time Settings Enable Enable daylight saving time. Offset(minutes) Setup the variety length. Month Setup start and end month. Week Setup start and end week. Setup start and end day. Hour Setup start and end hours. Minute Setup start and end minutes.

  • Page 41: Sip Config

    SIP Config Field name explanation SIP Line Choose line to set info about SIP, there are 4 lines to choose. You can switch by【Load】button. Basic Settings Status Shows if the phone has been registered the SIP server or not; or so, show Unapplied. Server Address Input your SIP server address.
  • Page 42 Off: Close down calling forward. Forward Type Busy: If the phone is busy, incoming calls will be forwarded to the appointed phone. No answer: If there is no answer, incoming calls will be forwarded to the appointed phone after a specific.
  • Page 43 MWI Number Specify the MWI Number; Please contact your system administrator for the connecting code. Different systems have different codes. Subscribe Period(s) Overtime of resending subscribe packet. Suggest using the default configuration. Conference Type Specify the Conference Type, if you select the local, you needn’t input the conference number.
  • Page 44 server will turn off the function immediately. Busy CFwd On Code Set the Busy CFwd On Code, when you choose to enable the busy forward function v on your phone, it will send message to the server, and the server will turn on the function immediately. When there are calls to the extension, the server will forward it to the set number automatically based the forward type.
  • Page 45 Keep Alive Interval Set examining interval of the server, default is 60 seconds. User Agent Set the user agent if have, the default is VoIP Phone 1.0. Select DTMF sending mode, there are three modes: DTMF Type  DTMF_RELAY  DTMF_RFC2833 ...
  • Page 46 one codec which phone supports. Auto TCP Set to use automatically TCP protocol to guarantee usability of transport as message is above 1300 byte Enable Strict Proxy Support the special SIP server-when phone receives the packets sent from server,phone will use the source IP address, not the address in via field.

  • Page 47: Iax2 Config

    Notice: the deployment will become effective in all sip lines. 8.3.3.2 IAX2 IAX2 Config Field name explanation Status Shows if the phone has been registered the IAX2 server or not. Server Address Input your IAX2 server address. Server Port Set your IAX2 server port, the default is 4569. Account Input your IAX2 register account name.
  • Page 48 Voice Mail Text Specify the voice mail’s name. Set echo test number. If IAX2 server supports echo Echo Test test, and echo test number is non- numeric, system Number could set an echo test number to replace the echo test text. So user can dial the numeric number to test echo voice test.
  • Page 49 STUN Field name explanation Simple Traversal of UDP through NATs (STUN) Settings STUN NAT Traversal Shows STUN NAT Transverse estimation, true means STUN can penetrate NAT, while False means not. Server Address Set your SIP STUN Server IP address. Server Port Set your SIP STUN Server Port.
  • Page 50 Choose line to set info about SIP, There are 2 lines to choose. Use STUN Enable/Disable SIP STUN. Notice: SIP STUN is used to realize SIP penetration to NAT. If your phone configures STUN Server IP and Port (default is 3478), and enable SIP Stun, you can use the ordinary SIP Server to realize penetration to NAT.

  • Page 51: Dial Peer

    Use this phone you can realize dialing out via different lines without switch in web interface. DIAL PEER Field name explanation Phone number There are two types of matching conditions: one is full matching, the other is prefix matching. In the Full matching, you need input your desired phone number in this blank, and then you need dial the phone number to realize calling to what the phone...
  • Page 52 4) Rep: It means that phone will replace the number with length and number appointed. You can refer to the following examples of different alias application to know more how to use different aliases and this dial rule. Call Mode Select different signal protocol, SIP or IAX2 Suffix Set suffix, this is optional config item.
  • Page 53 Enable on-line query function on the premise that: The phone must be multi-line products, you can choose when dialing protocol and line. So that each end of the dial, and also selected protocol and line. Dialpeer table in the query, the first comparison dialing protocol is selected in the table and dialpeer agreement, if the same, continue down the match, otherwise, check the next one.
  • Page 54 be sent via SIP2 line after the first several digits of your dialed phone number are deleted according to delete length. This setting will realize When you dial speed dial function, after “2”, the SIP1 you dialing the numeric server will key “2”, the number receive after all will be sent out.

  • Page 55: Phone

    8.3.4 PHONE 8.3.4.1 AUDIO In this page, you can configure voice codec, input/output volume and so AUDIO Configuration Field name explanation First Codec The first preferential DSP codec: G.711A/u, G.722, G.723.1,726-32 G.729AB,None. Second Codec The second preferential DSP codec: G.711A/u, G.722, G.723.1,726-32 G.729AB,None.
  • Page 56 volume G729AB Payload Set G729 Payload Length. Length Tone Standard Select Tone Standard. G722 Timestamps 160/20ms or 320/20ms is available. G723.1 Bit Rate 5.3 kb/s or 6.3 kb/s is available. Enable VAD Select it or not to enable or disable VAD. If enable VAD, G729 Payload length could not be set over 20ms.
  • Page 57 FEATURE Field name explanation Do Not Select DND, the phone will reject any incoming call, the Disturb callers will be reminded by busy, but any outgoing call from the phone will work well. If you select Ban Outgoing to enable it, and you cannot dial Outgoing out any number.
  • Page 58 Enable Auto Enable Auto Redial by selecting it, then the phone reminds Redial whether redial, when the caller is busy or rejects. Auto Redial Specify the Auto Redial interval. interval Auto Redial Specify the Auto Redial interval. Times Enable Call Enable Call Completion by selecting it.
  • Page 59 Silent Mode blink to remind that there is a missed call instead of playing ring tone. Turn Off Enable Turn Off Power Light by selecting it. Power Light Emergency Specify the Emergency Call Number. Despite the keyboard is Call locked, you can dial the emergency call number. Number Enable Enable Password Dial by selecting it, When number entered...
  • Page 60 Active URI Specify the server IP that remote control phone for Limit IP corresponding operation. Action URL Settings Action URL Specify the Action URL that Record the operation of phone; Settings send this corresponding information to server, url: http://InternalServer /FileName.xml? (Internal Server is server IP.
  • Page 61 length is 4 will be forbidden to dialed out means matching any arbitrary number digit. For example, 6 expresses any number with prefix 6 will be forbidden to dialed out. Notice: Black List and Limit List can record at most10 items respectively. 8.3.4.3 DIAL PLAN This system supports those dial modes as followings: 1) End with “#”: dial your desired number, and then press #.
  • Page 62 DIAL PLAN Configuration Field name explanation Basic Setting Press "#" to Send Set Enable/Disable the phone ended with “#” dial. Dial Fixed Length Specify the Fixed Length of phone ending with. Press # to Do Blind Enable Blind Transfer On Hook, when executing Transfer Blind Transfer End with #, press # after inputting the number that you want to transfer, the phone...
  • Page 63 Tn must be the last 2 characters of a dial plan. If Tn is not specified it is assumed to be T0 by default on all dial plans. Cause extensions 1000-8999 to be dialed immediately. Cause 8 digit numbers started with 9 to be dialed immediately. Cause 911 to be dialed immediately after it is entered.
  • Page 64 Contact Field name explanation Phonebook Table Name Shows the name corresponding to the phone number. Shows the detail of current phonebook. Notice: the maximum capability of the phonebook is 500 items, you can select many or a contact to add to group and add to blacklist, and delete many or a contact, and delete all contacts.
  • Page 65 Office Number Specify the office number. Mobile Number Specify the mobile number. Other Number Specify the other number. Ring Type Specify the ring type for the phone number. Line Specify the sip line for the each number. Group setting Select the group from the unselected group to selected list for the contact;...
  • Page 66 You need to match a XML Phonebook address and you can directly access to the corresponding remote phonebook on the phone. For example: Set the Phonebook Name as fanvil, Server URL is tftp://192.168.1.3/admin/phonebook/index.xml. Or Set the Phonebook Name as ldap, Server URL is ldap://192.168.1.3/dc=winline,dc=com.
  • Page 67 8.3.4.6 WEB DIAL You can make a call through the WEB DIAL, enter the Dial Number then press Dial, if you want to finish the talk, press Hang-up. 8.3.4.7 MCAST Use the multicast function to send notice to every member of the multicast is simple and easy.
  • Page 68 Value format IP:Port， the IP address of multicast is range from 224.0.0.0 to 239.255.255.255,port is greater than 1024 If multicast codec is G722, the LCD screen will displays "HD", which means the phone is sending high-definition voice stream Operate steps: 1、...
  • Page 69 1-10:the priority defined for normal calls,1 the highest level,10 the lowest level Disabled: Ignore all RTP stream of multicast Enable Page Priority Page priority determines the phone how to handle the newly received multicast RTP stream when in a multicast session. Enabled page priority, the phone will automatically ignore the low priority multicast RTP stream and receive the high priority multicast RTP stream and hold the current multicast session;...

  • Page 70: 5Function Key

    8.3.5FUNCTION KEY 8.3.5.1 SOFTKEY SOFTKEY You can configure different functions in different screens for every softkey.

  • Page 71: Maintenance

    8.3.6 Maintenance 8.3.6.1 Auto Provision Fanvil endpoint supports PnP and DHCP and Phone Flash to obtain the parameters. The PnP and DHCP and Phone Flash are all deployed, endpoint will go by the following process to try to obtain the server address and other parameters, when it boots up: DHCP option ...

  • Page 72: Auto Provision

    Auto Provision Field name explanation Auto Update Setting Current Config Show the current config file’s version. If the version Version of the configuration downloaded is higher than the version of the running configurations, the auto provision would upgrade, or stop here. If the endpoints confirm the configuration by Digest method, the endpoints wouldn’t upgrade configuration unless the configuration in the server...
  • Page 73 Plug and Play Enable PnP Enable PnP by selecting it, than the phone will send SIP SUBSCRIBE messages to a multicast address when it boots up. Any SIP server understanding that message will reply with a SIP NOTIFY message containing the Auto Provisioning Server URL where the phones can request their configuration.

  • Page 74: Syslog Configuration

    Level 0---emergency: This is highest default debug info level. You system cannot work. Level 1---alert: Your system has deadly problem. Level 2---critical: Your system has serious problem. Level 3---error: The error will affect your system working. Level 4---warning: There are some potential dangers. But your system can work.

  • Page 75: Config Setting

    Stop Click the end button to stop capturing the packet stream. 8.3.6.3 CONFIG Config Setting Field name Explanation Save Configuration You can save all changes of configurations. Click the Save button, all changes of configuration will be saved, and be effective immediately. Backup Right clicks on “Right click here…”...
  • Page 76 8.3.6.4 UPDATE You can update your configuration with your config file in this web page. Update Field name Explanation Web Update Click the browse button, find out the config file Web Update saved before or provided by manufacturer, download it to the phone directly, press “Update” to save.
  • Page 77 imported. For example, you can download a config file just keep with SIP module. After reboot, other modules of system still use previous setting and are not lost. Type Action type that system want to execute: 1. Application update: download system update file.

  • Page 78: Access Configuration

    Access Configuration Field name explanation Keyboard Set the password for entering the setting menu of Password the phone by the phone‘s key board. The password is digit. This table shows the current user existed. User Set account user name. User Level Set user level, Root user has the right to modify configuration, General can only read.

  • Page 79: Security

    8.3.6.6 REBOOT If you modified some configurations which need the phone’s reboot to be effective, you need click the Reboot, then the phone will reboot immediately. Notice: Before reboot, you need confirm that you have saved all configurations. 8.3.7 SECURITY 8.3.7.1 WEB FILTER WEB Filter User could make some device own IP, which is pre-specified, access to...

  • Page 80: Firewall Configuration

    Web Filter setting Select it or not to enable or disable Web Filter. Click Apply to make it effective. Notice: Do not set your visiting IP outside the Web filter range, otherwise, you cannot logon through the web. 8.3.7.2 FIREWALL Firewall Configuration In this web interface, you can set up firewall to prevent unauthorized Internet users from accessing private networks connected to the...
  • Page 81 Enable Output Select it to Enable Output Rules. Rules Input / Output Specify current adding rule by selecting input rule or output rule. Deny/Permit Specify current adding rule by selecting Deny rule or Permit rule. Protocol Filter protocol type. You can select TCP, UDP, ICMP, or IP.
  • Page 82 DMZ config: In order to make some intranet equipment support better service for extranet, and make internal network security more effectively, these equipment open to extranet need be separated from the other equipment not open to extranet by the corresponding isolation method according to different demands.
  • Page 83 NAT Configuration Field name explanation IPSec ALG It is an encryption technology. Select it to enable IPSec ALG, the default is enabled. FTP is a service of connection layer which can FTP ALG transform intranet IP into extranet IP when intranet IP is sending out packet.
  • Page 84 Shows the NAT UDP mapping table Transfer Type Select the NAT mapping protocol style, TCP or UDP Inside IP Set the IP address of device which is connected to LAN interface to do NAT mapping. Inside Port Set the LAN port of the NAT mapping Outside Port Set the WAN port of the NAT mapping Notice: After finish setting, click the Add button to add new mapping...

  • Page 85: Vpn Configuration

    VPN Configuration Field name explanation VPN IP Shows the current VPN IP address. Select L2TP. You can choose only one for current state. After you select it, you’d better save configuration and reboot your phone. Enable VPN Select it or not to enable or disable VPN. VPN Server Set VPN L2TP Server IP address.

  • Page 86: Logout

    Security Field name explanation Update Security File Select Security File Select the security file you want to update, then click Update button to update. Delete Security File Select Security File Select the security file you want to delete, then click Delete button to update. SIP TLS File Show SIP TLS authentication certification file.

  • Page 87: Appendix

    Appendix 9.1.1 Specification Hardware Item F52(P) Adapter Input: 100-240V (Input / Output) Output: 5V 1A port 10/100Base- T RJ-45 1 PORT 10/100Base- T RJ-45 1 PORT Power Idle: 2.5W/Active: 2.8W Consumption LCD Size 128x48 62 x 22mm Operation 0～40℃ Temperature Relative Humidity 10～65%...

  • Page 88: Network Features

     Support DTMF type: SIP info, DTMF Relay, RFC2833  Support 9 systems ringtones and three user-defined ringtongs  Soft keys programmable  SIP application: support Call forward / transfer (blind transfer / attended transfer / Ringing Transfer) / Call hold / call waiting / conference call / paging and intercom / call park / then grab / interpolation / Automatic Callback / Click call / auto secondary dial / ...

  • Page 89: Maintenance And Management

    9.1.4 Maintenance and management  Upgrade firmware through POST mode  Web ,telnet and keypad management  Management with different account right  LCD and WEB configuration can be modified into requested language, and support multi-language dynamically shifted  Upgrade firmware through HTTP, FTP or TFTP Telnet remote management/ upload/download setting file ...
