- Page 1 ® Mini DVI Switcher EXT-MINIDVI-241N User Manual www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Mini DVI Switcher is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the Mini DVI Switcher RMT2-IR Installation IR Code Confi guration Specifi cations Warranty... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. How It Works Simply connect your DVI display to the Switcher's display output. -
Page 5: Features
FEATURES Features • Saves money on hardware—no need to purchase multiple DVI displays • Saves space—a single DVI display • Saves time—no need to disconnect and reconnect DVI devices—everything is always connected and accessible • Maintains high resolution video—beautiful, sharp DVI resolutions up to 1080P are easily achieved. -
Page 6: Panel Descriptions

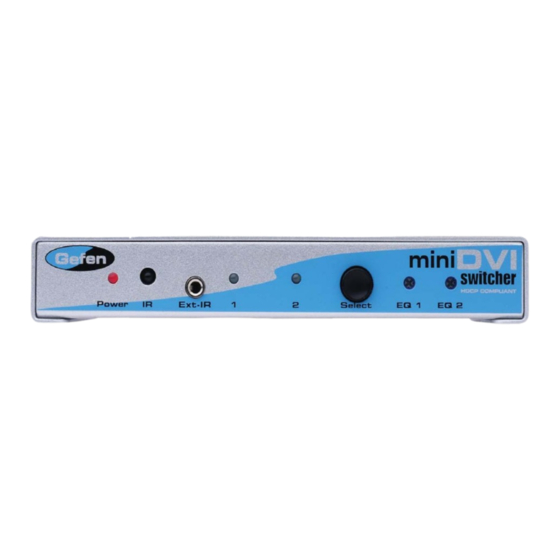

PANEL DESCRIPTIONS Front IR eye Connects to IR Selects port 1 extender or port 2 EQ Trim pots for Indicates if port 1 or Power LED each channel port 2 is selected Indicator Back Connects to 5VDC Connects to DVI Outputs power supply DVI display... -
Page 7: Connecting And Operating The Mini Dvi Switcher
CONNECTING AND OPERATING THE MINI DVI SWITCHER How to Connect the Mini DVI Switcher to your devices 1 Connect the supplied DVI cables from the DVI sources into the DVI Switcher Input. 2 Connect the cable from your display (monitor or projector) into the DVI Out of the Mini DVI Switcher. -
Page 8: Rmt2-Ir Installation
Note: The 3.5mm mini-stereo jack located on the front of the unit is used to con- nect the optional IR extender (shown above). It can also be used for connecting a cabled contact closure remote control (such as Gefen's EXT-RMT-2). -
Page 9: Ir Code Confi Guration
IR CODE CONFIGURATION Why would I need to change the remote channel? In some instances, the Mini DVI Switcher may use IR codes that confl ict with other IR remote control devices. The unit may switch inputs when another brand IR remote control is used or the RMT-2IR may cause other brand IR controlled devices to behave unexpectedly. -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................. 1.65 GHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Single Link Range ..................1920 x 1200 DVI Input/Output Connector Type ................DVI-D Power Consumption ................15 Watts (max.) Power Supply ......................
