General Information
1.4.1 The Display/Keypad
The display/keypad provides an easy-to-use keypad and large LCD (liquid crystal display) that
simplifies the programming process.
Status
LEDs

The Liquid Crystal Display

The display is 40 characters wide by 16 lines. It displays all programming screens, as well as
events, history, device and other information.
Fields may be entered or changed and commands may be issued on the display using the keypad.

The Keypad

The keypad consists of several types of keys: alphanumerics, special function keys, soft keys, and
fixed function keys.
Note: Key functions are as described below unless the Local Control option is disabled, or the
Display and Control Center (DCC) option is enabled and the DCC is at another location. When the
Local Control option is disabled, the panel does not have local control of the Signal Silence,
10
Soft Keys

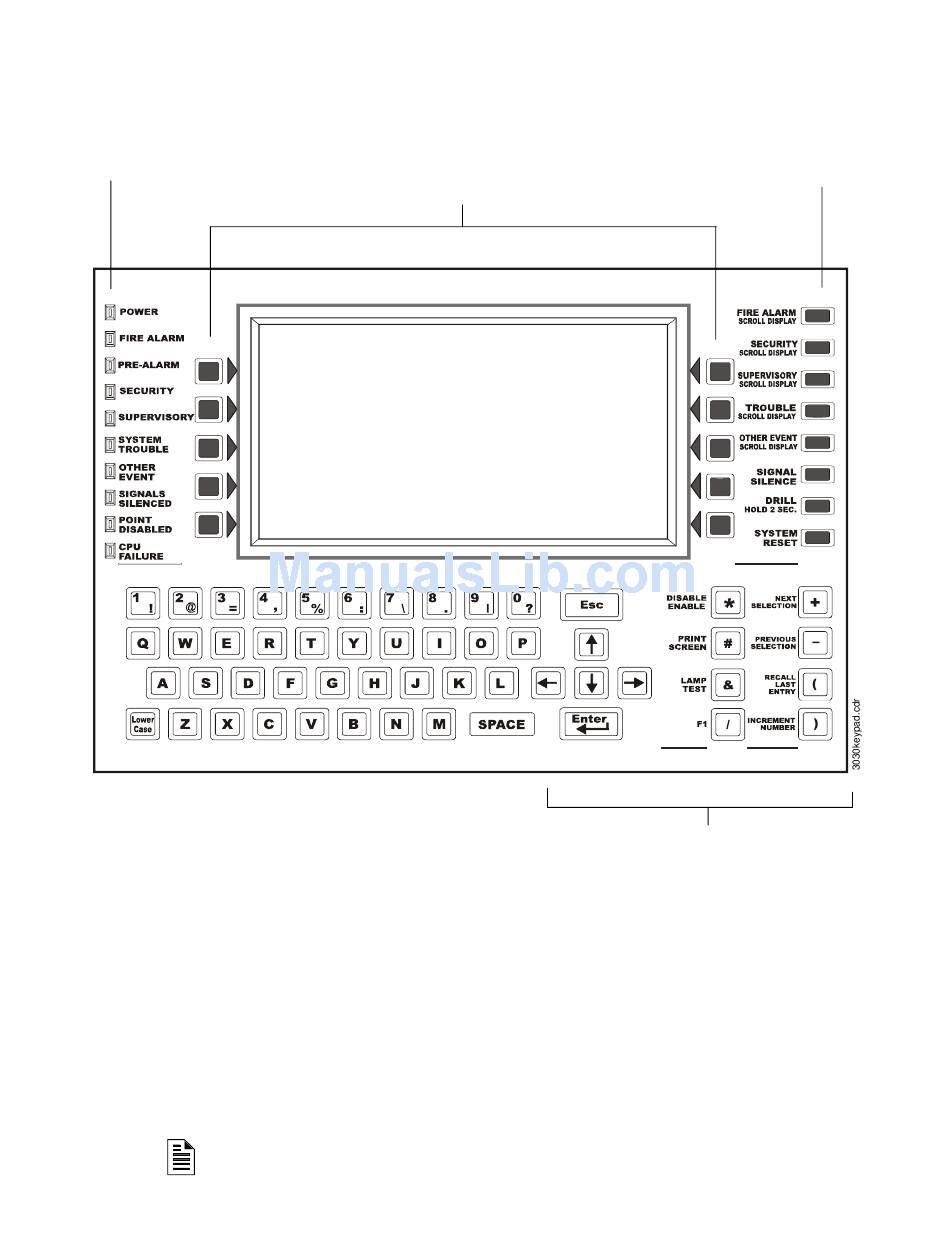

Figure 1.1 The Display/Keypad
IFC-3030 Operations Manual — PN 52026:C 08/05/2005
Operating Features
Fixed
Function
Keys
Special Function Keys
