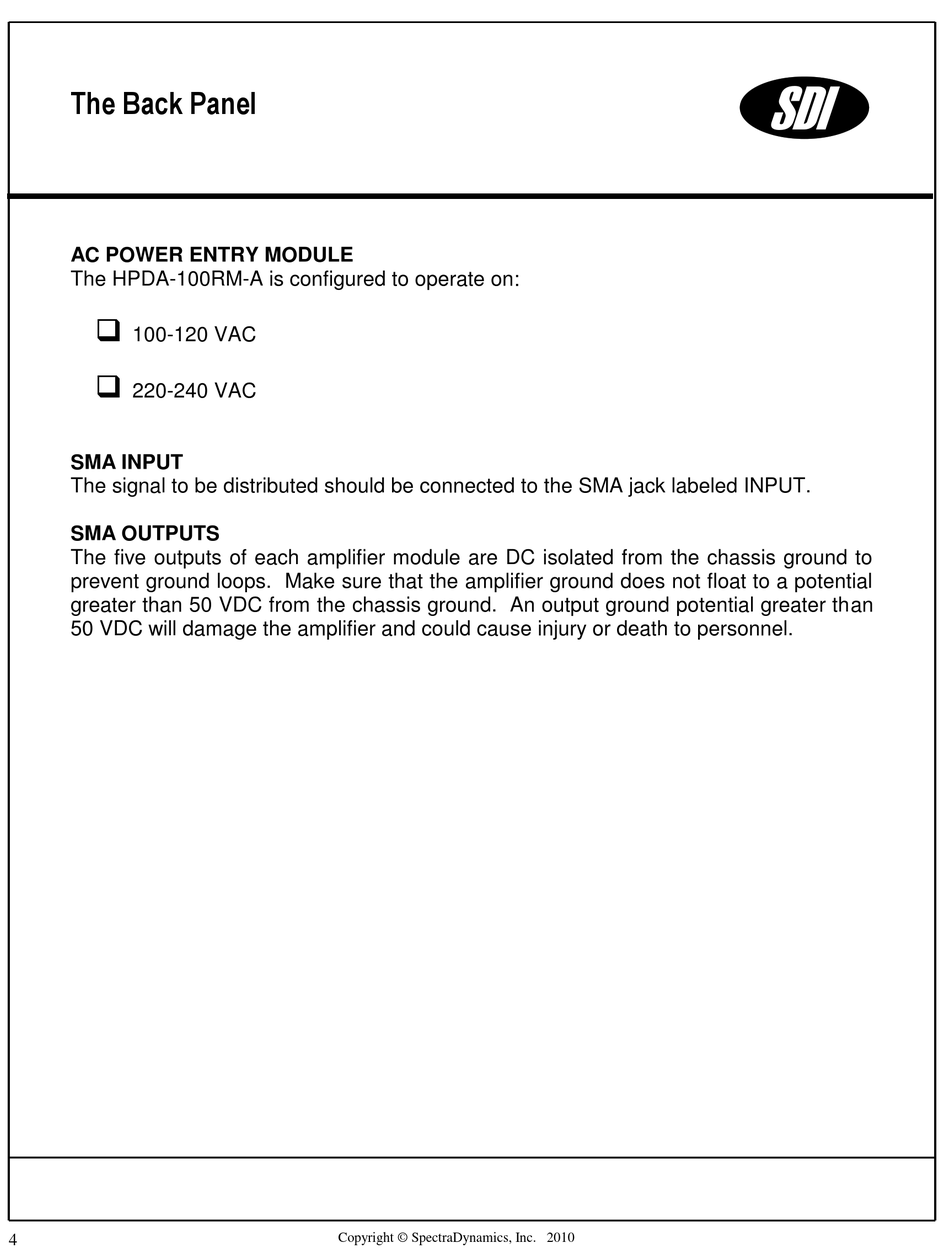

The Back Panel
AC POWER ENTRY MODULE
The HPDA-100RM-A is configured to operate on:
100-120 VAC
220-240 VAC
SMA INPUT
The signal to be distributed should be connected to the SMA jack labeled INPUT.
SMA OUTPUTS
The five outputs of each amplifier module are DC isolated from the chassis ground to
prevent ground loops. Make sure that the amplifier ground does not float to a potential
greater than 50 VDC from the chassis ground. An output ground potential greater than
50 VDC will damage the amplifier and could cause injury or death to personnel.
