SpectraDynamics HPDA-15RM-B Operating Manual

High performance distribution amplifier
Hide thumbs Also See for HPDA-15RM-B:
Table of Contents

Advertisement

Quick Links

Download this manual
SDI
S
D
I
PECTRA
YNAMICS,
NC.
H
P
D
A
IGH
ERFORMANCE
ISTRIBUTION
MPLIFIER
HPDA-15RM-B
O
M
PERATING
ANUAL
S
D
I
PECTRA
YNAMICS,
NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027
Phone: (303) 665-1852 • Fax: (303) 604-6088
www.spectradynamics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPDA-15RM-B and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraDynamics HPDA-15RM-B

Summary of Contents for SpectraDynamics HPDA-15RM-B

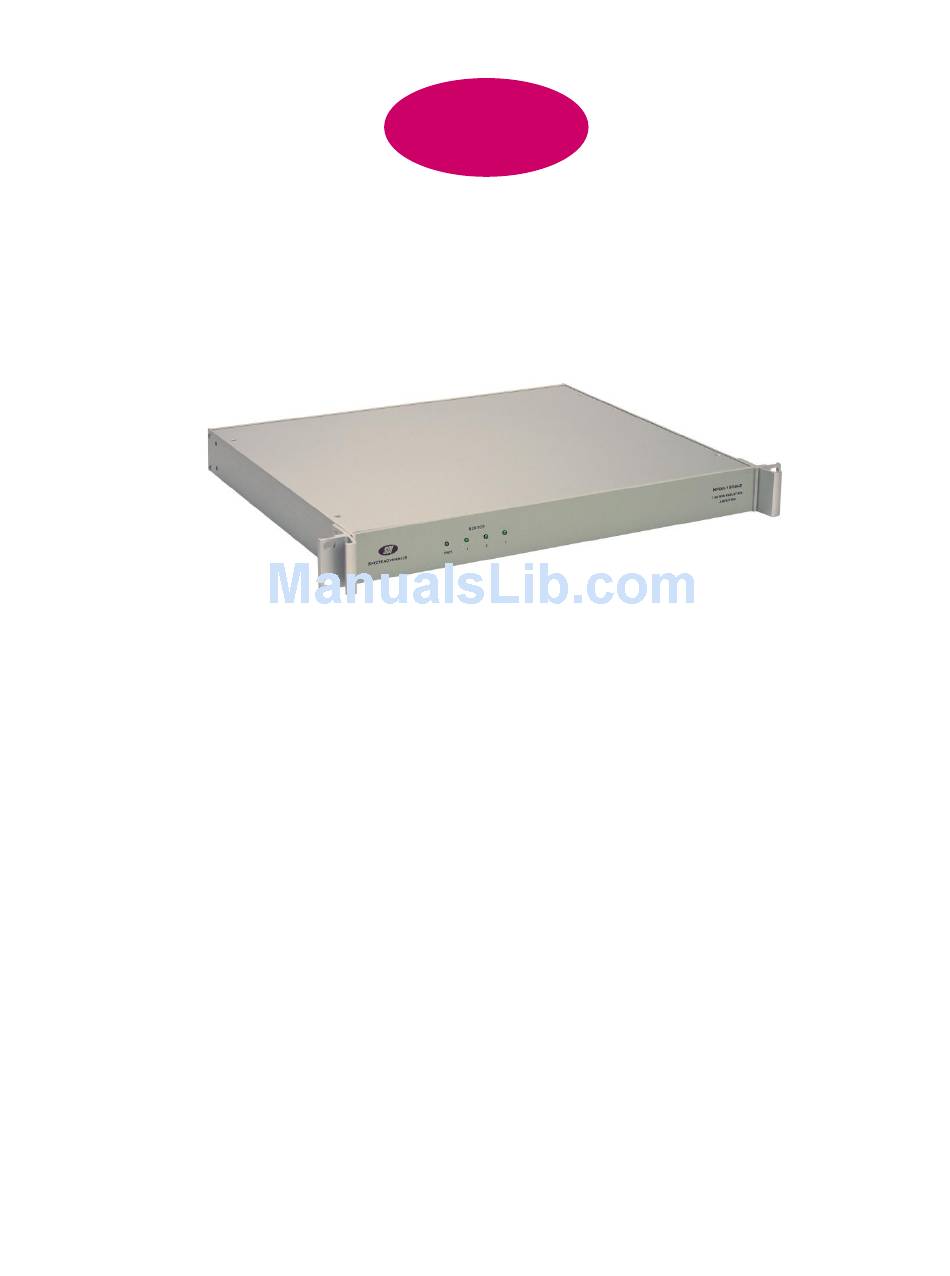

  • Page 1 PECTRA YNAMICS, ERFORMANCE ISTRIBUTION MPLIFIER HPDA-15RM-B PERATING ANUAL PECTRA YNAMICS, NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
