- Page 1 PECTRADYNAMICS ULSE ISTRIBUTION MPLIFIER PD-5 PERATING ANUAL PECTRADYNAMICS, NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...

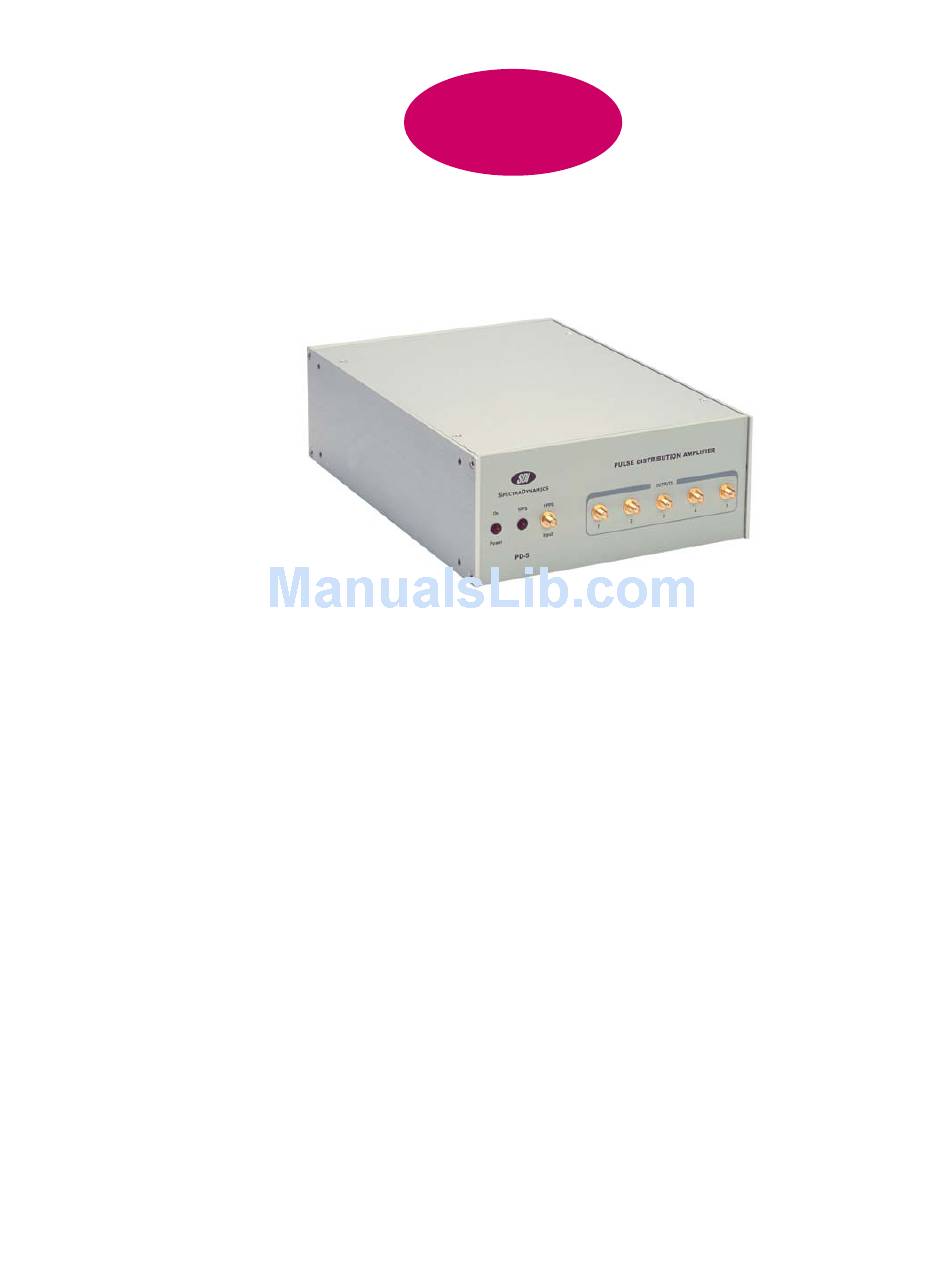

- Page 2 The instrument is available in a 3.5” X 8.4” X 12 “ enclosure. The PD-5 can be combined with either a second PD-5 or a one pulse per second generator model PPS-2 to form a standard 19” rack mountable instrument.
-
Page 3: Safety And Preparation For Use
To operate the unit, locate the AC power entry connector on the rear panel and connect the power cable. When power is applied to the unit, a red led located on the front panel, labeled “on”, should light up. Copyright © SpectraDynamics, Inc. 2006... -
Page 4: The Front Panel
Pulse input. The input signal should conform to TTL levels. Input Outputs Distribution amplifier output. The outputs are designed to drive 50 ohm cables. The outputs provide a 2 volt peak-to peak signal into a 50 ohm load. Copyright © SpectraDynamics, Inc. 2006... -
Page 5: The Back Panel
The Back Panel AC POWER ENTRY MODULE The PD-5 is configured to operate on: 100-120 VAC 220-240 VAC. Copyright © SpectraDynamics, Inc. 2006... - Page 6 Although the device was designed to distribute precision one pulse per second signals, it may be used to distribute pulses up to a frequency of 100 MHz. propagation delay is under 12 ns, and the channel to channel delay difference is less than 1 ns. Copyright © SpectraDynamics, Inc. 2006...
-
Page 7: Specifications
Input signal into 50 ohm load Input Low Level Input signal into 50 ohm load -0.7 Output High Level 50 ohm load Output Low Level 50 ohm load Temperature-delay 0 - 50 ºC ps/ºC Coefficient 25 - 35 ºC Copyright © SpectraDynamics, Inc. 2006... - Page 8 SDI’s option, any product not meeting the said specifications. This warranty shall be in effect for one (1) year from the date an PD-5 is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose.
- Page 9 PD-1I-5O/R01...
