Introduction

Introduction Introduction Introduction
Congratulations on the purchase of your Revolabs
Solo™ Single Channel wireless microphone system!
This wireless system provides high band-width audio
from a compact wireless microphone enabling
reliable, secure, and untethered personal
communication.
The Single Channel Wireless Microphone System is a
unique marriage of innovative technology and
ergonomic stylish design, featuring 1.9 GHz DECT
technology. This product enhances audio
communication in both personal and enterprise
applications, using Multi-Carrier, Time Division
Multiple Access and Time Division Duplex
(MC/TDMA/TDD) radio transmissions both to and
from the microphone.
This means that the system can co-exist with other
wireless products such as wireless LANs (802.11 b&g)
and cellular phones.
Note: It is recommended that no more than 3 Single
Channel Systems, nor a Single Channel and
Multichannel System, be used in the same room to
avoid interference.
4

System Components

System Components System Components System Components
Your Revolabs Solo™ Single Channel System package
contains:
Compact Charger Base
•
Solo Wireless Microphone (varies)
•
Power Module
•
External Audio Cable
•
USB cable
•
Installation and Operation Guide
•
Solo Single Channel Quick Start Guide
•
Revolabs Solo Revolabs Solo Single Channel Charger Base Single Channel
Revolabs Revolabs Solo Solo Single Channel Single Channel
™ ™ ™ ™
Use the Charger Base to store and charge the
Microphone when not in use. The Microphone must
be properly inserted into the base and seated flush for
charging to occur.

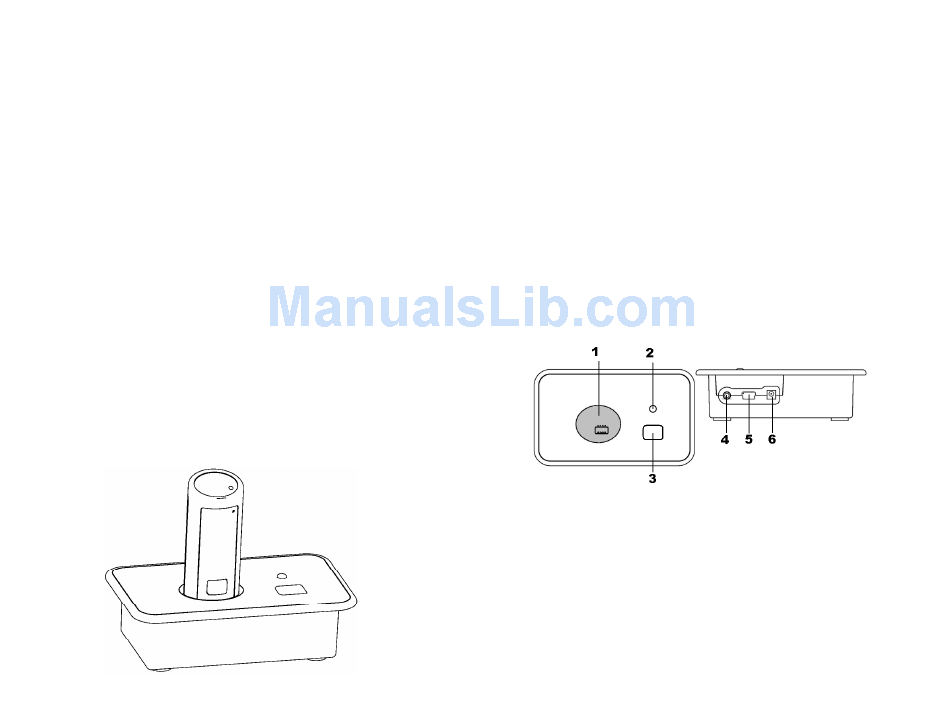

1. Charger Bay — charges Microphone
2. LED indicator — mute and pairing status indicator
3. MUTE button — duplicates the Microphone mute function
4. AUDIO port — 2.5mm analog in/out external audio
connection
5. Mini USB connector — computer audio connection
6. POWER connector — power supply input
Charger Base
Charger Base Charger Base
5
