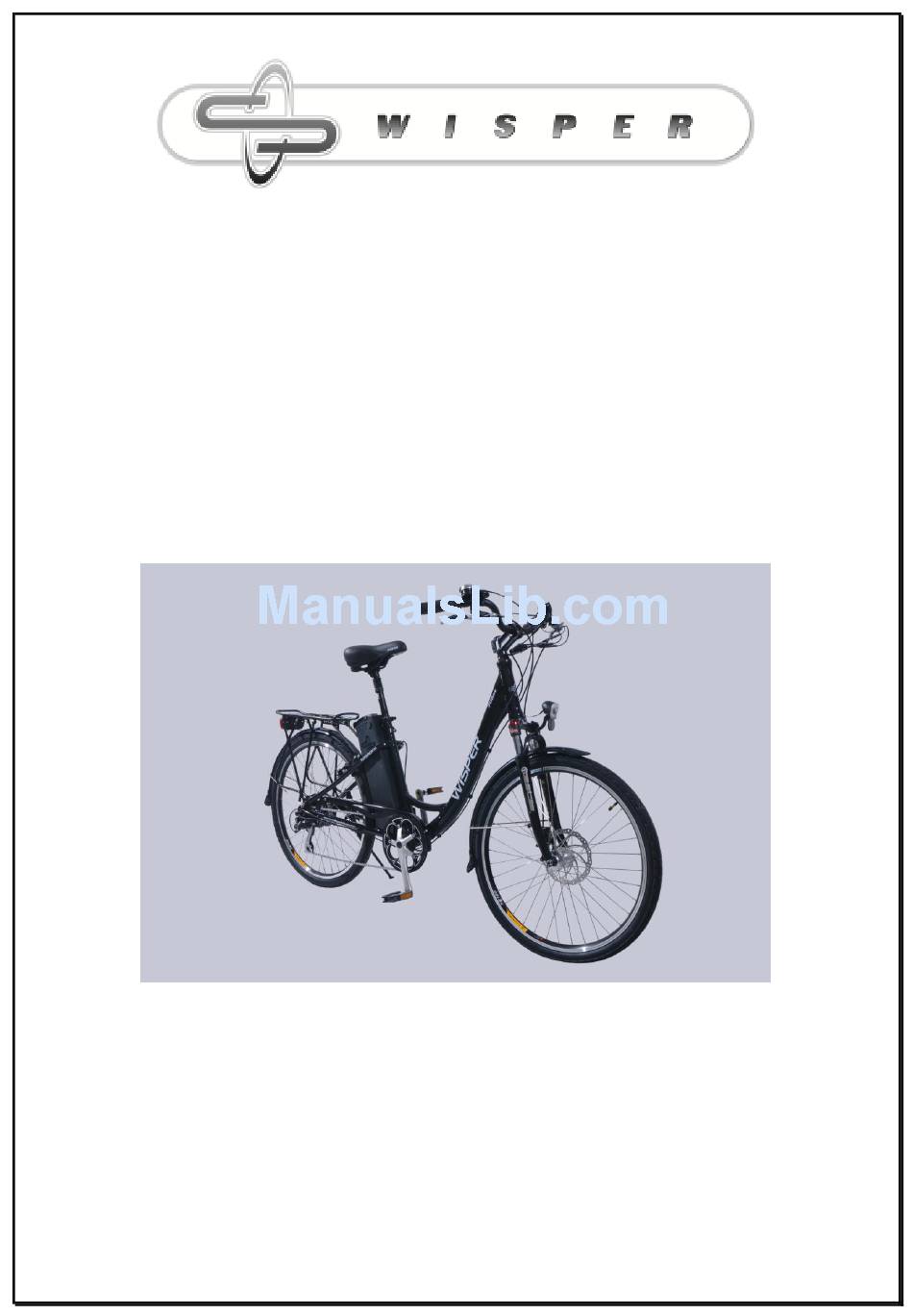

- Page 1 Owner’s Manual Operation and Maintenance Instructions Wisper 705se June 2011 1 edition We strongly recommend that you read this entire manual before using your Wisper bike Wisper Limited - 1 -...
-
Page 2: Table Of Contents
User Guide Introduction Page 3 Part 1 Caring for your Wisper bike and pre use checks Before you set off for the first time Page 4 Before each use Page 5 Battery care Page 5 Recharging your battery Page 6... -
Page 3: Introduction
By making the decision to use an electric bike you are helping to safeguard our environment by saving our planet’s precious resources and reducing carbon pollution. Before you use your Wisper bike it is important that you read this manual carefully. If there is anything you do not understand completely please contact us. -
Page 4: Before You Set Off For The First Time
Part 1 Caring for your Wisper bike and checks Although your Wisper bike has been thoroughly tested prior to delivery, it is very important that you check the bike thoroughly before its first use. Equally important are frequent and regular spot checks they will protect you and your Wisper bike. -
Page 5: Before Each Use
electrical system is turned off and the power indicator lamps are not illuminated when mounting, dismounting or leaving the bike unattended. For your safety, please turn off the power key on the battery when stopped or walking the bike 1.10 Remember to validate your warranty by visiting www.wisperbikes.com/mywarranty and filling in your details. -
Page 6: Recharging Your Battery
3.10 Further information on user responsibilities and battery maintenance are included in the warranty section of this manual Recharging your battery The charger supplied with your 2011 model bike has two settings. The standard setting charges the battery to 42 volts for normal battery use and should be used if charging the battery ready for use on the bike. -
Page 7: Maintenance And Adjustments
Your bike has a rear derailleur that will automatically tension your chain. However if the chain becomes loose or frequently comes off the front chainwheel, please seek advice from your nearest Wisper dealer. The brake leavers should lock the wheels when compressed half way between their open position and touching the handle bars. -
Page 8: Technical Specifications And Performance
Socket wrench, 14, 15, and 19 mm socket T25 Torx wrench No. 1 Phillips head screwdriver Bicycle tube patch kit, tire pump Technical specifications & performance Type Wisper Works 705 se range Performance (with 75kg 165lb rider) Assisted range Between 50km and 85km depending on battery size... -
Page 9: Simple Trouble Shooting
Simple Trouble shooting Problem Possible reasons Trouble shooting Top speed too 1. Low battery voltage 1. Recharge battery fully slow 2. Handle bar control problem 2. Call service 3. Damage to motor driveline 3. Call service Power on but 1. Battery not connected 1. -
Page 10: Part 2 Controls And Equipment
Battery on off and battery lock Your Wisper bike has one key. The key turns the battery on/off and locks the battery in the bike. Please keep a careful note of the key numbers as we cannot replace them without these numbers should they become mislaid. -
Page 11: The On/Off Button
Pedelec mode and ASSIST mode 12.1 When you first ride your Wisper bike you will notice that after one turn of the pedals the motor will start working assisting you ride the bike by adding power to the back wheel. This is the standard or pedelec mode. To continue using the... -
Page 12: Throttle Mode
14.1 Front: Disc brake Rear: V brake 14.2 The brakes on your Wisper bike are fitted with cut outs which are required by law. This means that when you pull on either the back or front brake lever the motor immediately stops working. - Page 13 longer visible. Adjustment for rear V brake: 14.3.1. Use a 5mm Allen key to loosen bolt “A” to release the cable. Use a 5mm Allen key to loosen bolt “C” (right & left), then remove the spacers and washer 14.3.2. Install new brake pads, then with both pads pressed against the wheel rim, ensure that distance-B (in diagram) does not exceed 65mm.
- Page 14 As the left and right pads are the same they may be inserted on either the left or right of the caliper. Warning: If you are unsure about any part of the installation process you should seek advice from Wisper service center or qualified mechanic. - 14 -...
-
Page 15: Steering Stem And Handle Bar Clamp
Stem and handle bar clamp 15.1 Your bike has been fitted with an adjustable handlebar clamp that allows you to change the angle and height of the bars with a 5mm Allen key to find the most comfortable riding position. 15.2 The stem and handle bars can be adjusted before you use the bike by slackening the 5 bolts indicated by the arrows below along with the clamp bolt located underneath... -
Page 16: Adjustable Front Suspension Forks
Quick release saddle height adjustment 18.1 Your Wisper bike has been fitted with a quick release saddle post collar to facilitate the movement of the saddle to remove the battery or to change the riding position. -
Page 17: Saddle Post Suspension
Saddle post suspension 19.1 For your comfort your bike has been fitted with saddle post suspension it has been set for a person weighing 75kg. If you are lighter than this you may not feel any benefit and if you are heavier you may feel the suspension bottoming out. -
Page 18: Warranty, User Responsibilities And Battery Maintenance
Warranty, battery maintenance and user responsibilities Repair or replacement of components IMPORTANT To validate this Warranty the retail customer must register the bike at www.wisperbikes/mywarranty within 14 days of purchase. Only use this product in accordance with this user manual. We offer a limited warranty of on the following items. -
Page 19: Service Contacts
Battery maintenance and user responsibilities Your Wisper bike is equipped with a powerful, high quality lithium ion (polymer) battery. Lithium ion (polymer) is recognised as being the very best type of battery for electric bicycle use. All lithium ion batteries must be well cared for to optimise useful life and range. It is the responsibility of the bike owner/operator to ensure the battery is looked after properly. - Page 20 We reserve the right to check batteries claimed under warranty to ensure they have been maintained as per our instructions. Service through Your retailer Wisper Ltd 10 Oakenbrow Sway Hants SO41 6DY Tele: 01590 681553 Mobile: 07977 185830 douglas.lawson@wisperbikes.com www.wisperbikes.com Copyright January 2010 Wisper Ltd - 20 -...
