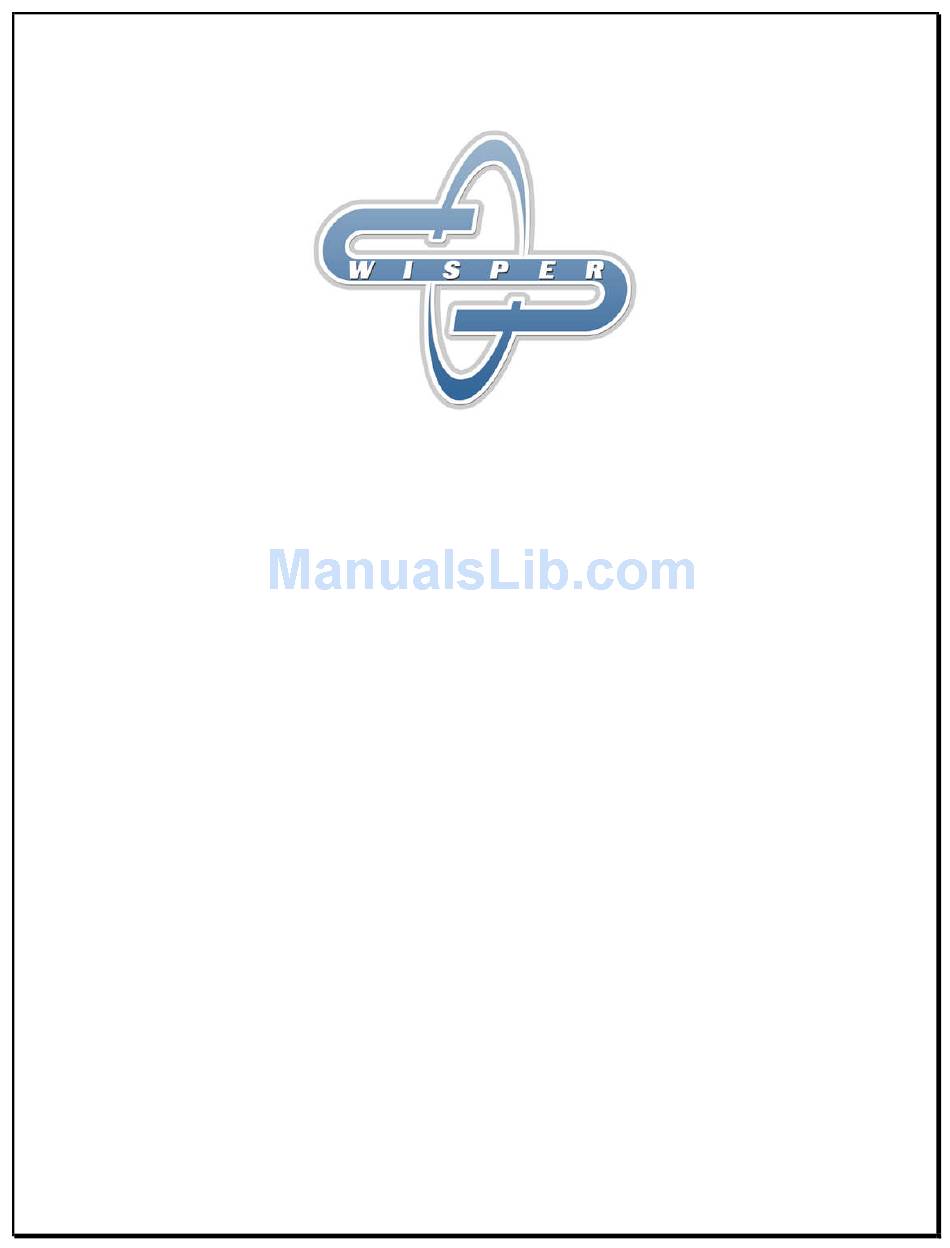

- Page 1 Owner’s Manual Operation and Maintenance Instructions Wisper 805FE January 2011 3 edition We strongly recommend that you read this entire manual before using your Wisper bike Wisper Limited - 1 -...
-
Page 2: Table Of Contents
User Guide Introduction Page 3 Part 1 Caring for your Wisper bike and pre use checks Before you set off for the first time Page 5 Before each use Page 6 Battery care Page 6 Recharging your battery Page 7... -
Page 3: Introduction
It is the rider’s responsibility to ensure they are in proper physical condition to ride a Wisper electric bicycle. - Page 4 The service must include spoke tensioning for both front and rear wheels. Wisper bikes are not mountain bikes and should not be ridden as such. The bikes should not be jumped, ridden on terrain which causes significant jarring, or in areas where the motor or other electrical components are likely to become submerged.
-
Page 5: Before You Set Off For The First Time
Part 1 Caring for your Wisper bike and checks Although your Wisper bike has been thoroughly tested prior to delivery, it is very important that you check the bike again before its first use. Equally important are frequent and regular spot checks, they will protect you and your Wisper bike. -
Page 6: Before Each Use
A lithium ion battery will slowly discharge over time as it sits in storage. If a battery is allowed to fully discharge, this will stress the cells in the battery and reduce the capacity and life of the battery. During normal riding, the Wisper batteries have a battery management system (BMS) which switches off the electrical system when the voltage drops to a certain point i.e. -
Page 7: Recharging Your Battery
switched on) … aim for two-three lights (four lights is fully charged); Depending on how fully charged the battery was initially, it will normally take about 1-2 hours to give the recommended partial charge; If you end up charging your battery to 100% (the green light on the charging unit comes on), go for a ride to discharge it partially before storing the battery;... -
Page 8: Water
from the battery. It is possible that the battery will take up to 12 hours to charge on the first three charges. Always charge the battery always in a well ventilated area. Do not leave the charger connected to the mains when not in use. Water Your electric bicycle is rain and splash proof. -
Page 9: Technical Specifications And Performance
T25 Torx wrench; No. 1 Phillips head screwdriver; Bicycle tube patch kit; and tire pump Technical specifications & performance Type Wisper Works 805fe Performance Assisted range Up to 40km Maximum speed 25kph (15.5mph) Weight with battery 22.1kg max... -
Page 10: Simple Trouble Shooting
Main Controller specifications Low voltage safeguard 31.5V Overload current safeguard Main hub motor specifications Motor type Hi speed brushless Rated power Aus Singapore 200W / NZ Europe North America 250W Rated voltage Charger Lithium 115 to 230V 24V fan cooled Simple Trouble shooting Problem Possible reasons... -
Page 11: Part 2 Controls And Equipment
Battery on off and battery lock Your Wisper bike has one key. This key is for locking the battery into the bike. Please keep a careful note of the key number as we cannot replace it without this number should it become mislaid. -
Page 12: Gear Shifters
Gear shifters 11.1 805fe has 16 gears, 2 front chain drives (34 and 50 teeth) and 8 rear sprockets (11 to 30 teeth). The front shifter will move the chain between the high gear chain drive H and the low L. (Please refer to the picture). The rear shifter will move the chain from the highest gear to the lowest by simply moving the lever from left to right. -
Page 13: Throttle
Front and Rear: V brake 14.2 The brakes on your Wisper bike are fitted with cut outs which are required by law. This means that when you pull on either the back or front brake lever the motor immediately stops working. -
Page 14: The Front Connection Box
Quick release saddle height adjustment 16.1 Your Wisper bike has been fitted with a quick release saddle post collar to facilitate the movement of the saddle to remove the battery or to change the riding position. 16.2 It is important that the nut on the collar is tightened so the post will not move in the bike tube. -
Page 15: Chain And Drive Wheel
Chain and drive wheel 18.1 Lightly oil the chain with bicycle chain oil at least once a month. 18.2 Because your bike has a rear derailleur the chain will be automatically adjusted. Derailleur Full details on how to adjust and maintain your derailleur can be found on our website www.wisperbikes.com Electric bikes, Manuals. -
Page 16: Warranty
Warranty Repair or replacement of components IMPORTANT To validate this Warranty the retail customer must register the bike at www.wisperbikes.com within 14 days of purchase. Only use this product in accordance with this user manual. We offer a limited warranty on the following items. -
Page 17: Service Contacts
Service through Your retailer Wisper Ltd 10 Oakenbrow Sway Hants SO41 6DY Tele: 01590 681553 Mobile: 07977 185830 douglas.lawson@wisperbikes.com www.wisperbikes.com Copyright January 2010 Wisper Ltd - 17 -...
