Wisper 806 Alpino Owner's Manual

Operation and maintenance instructions
Hide thumbs Also See for 806 Alpino:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

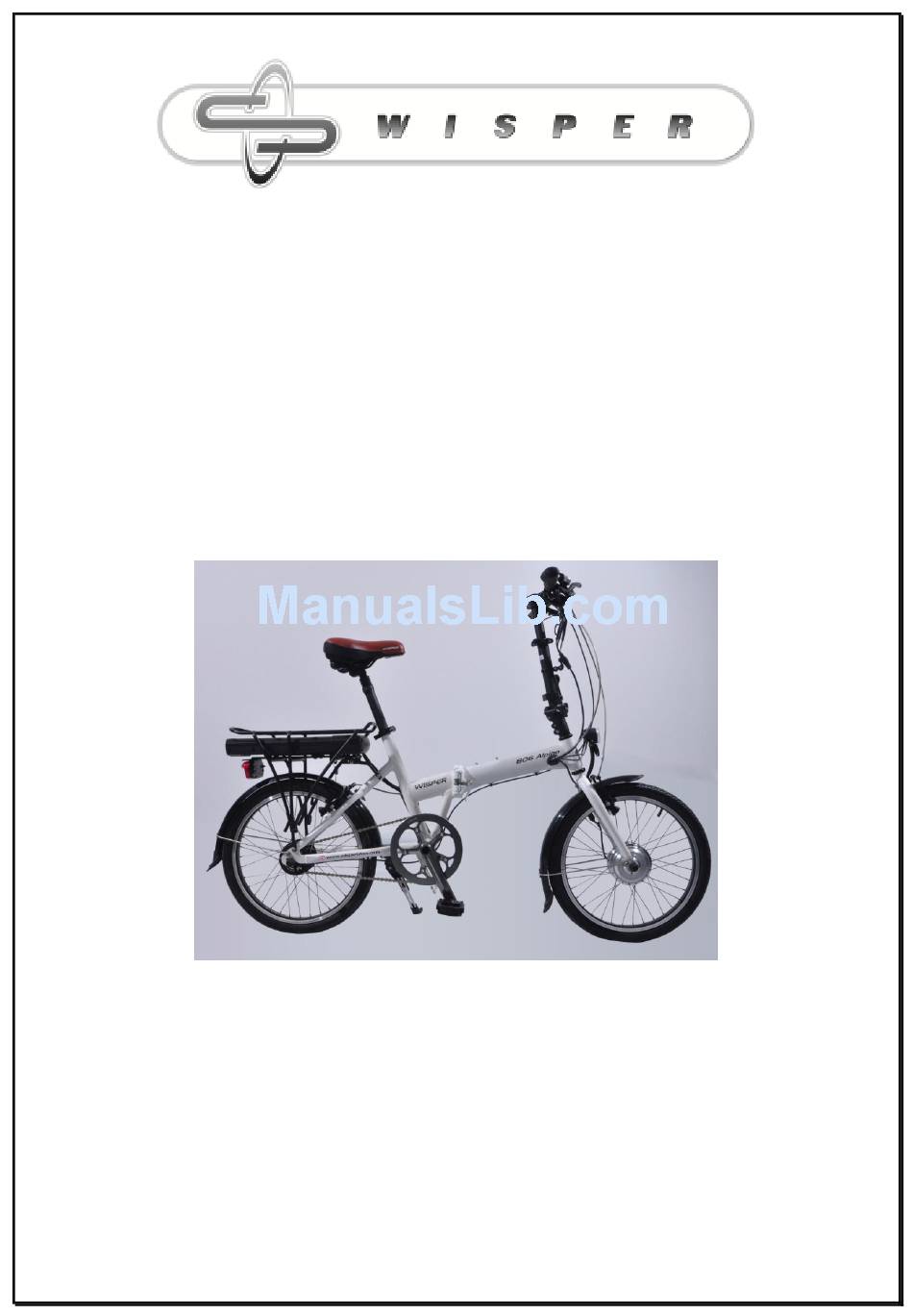

Owner's Manual
Operation and Maintenance Instructions
Wisper 806 Alpino
st
June 2011 1
edition
We strongly recommend that you read this entire manual before
using your Wisper bike
Wisper Limited
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 806 Alpino and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisper 806 Alpino

Summary of Contents for Wisper 806 Alpino

  • Page 1 Owner’s Manual Operation and Maintenance Instructions Wisper 806 Alpino June 2011 1 edition We strongly recommend that you read this entire manual before using your Wisper bike Wisper Limited - 1 -...

  • Page 2: Table Of Contents

    User Guide Introduction Page 3 Part 1 Caring for your Wisper bike and pre use checks Before you set off for the first time Page 4 Before each use Page 5 Battery care Page 5 Recharging your battery Page 6...

  • Page 3: Introduction

    We strongly advise you to always wear a cycle helmet when using your bicycle and if you are unfamiliar with cycling to attend a cycle proficiency course prior to using it. Your Wisper Works 806 Alpino is not a toy and should be considered a serious mode of transport.

  • Page 4: Before You Set Off For The First Time

    Part 1 Caring for your Wisper bike and checks Although your Wisper bike has been thoroughly tested prior to delivery, it is very important that you check the bike again before its first use. Equally important are frequent and regular spot checks, they will protect you and your Wisper bike.

  • Page 5: Before Each Use

    electrical system is turned off and the power indicator lamps are not illuminated when mounting, dismounting or leaving the bike unattended. For your safety, please turn off the power switch on the battery when stopped or walking the bike 1.10 Remember to validate your warranty by visiting www.wisperbikes.com/mywarranty and filling in your details.

  • Page 6: Recharging Your Battery

    If your battery is damaged or appears to be overheating for any reason immediately return it to your retailer for advice and a safety check Further information on user responsibilities and battery maintenance are included in the warranty section of this manual Recharging your battery Make sure the charger is turned off and connect the charger to your battery then turn on the...

  • Page 7: Technical Specifications And Performance

    Socket wrench, 14, 15, and 19 mm socket T25 Torque wrench No. 1 Phillips head screwdriver Bicycle inner tube repair kit, tyre pump Technical specifications & performance Type Wisper Works 805fe Performance (with 75kg 165lb rider) Assisted range Up to 50km Maximum speed 25kph (15.5mph)

  • Page 8: Simple Trouble Shooting

    Capacity Rated voltage Main Controller specifications Low voltage safeguard 31.5V Overload current safeguard Main hub motor specifications Motor type Hi speed brushless Rated power Aus Singapore 200W / NZ Europe 250W Rated voltage Charger Lithium 115 to 230V 24V fan cooled Simple Trouble shooting Problem Possible reasons...

  • Page 9: Part 2 Controls And Equipment

    Battery on off and battery lock Your Wisper bike has one key. This key is for locking the battery into the bike. Please keep a careful note of the key number as we cannot replace it without this number should it become mislaid.

  • Page 10: Lcd Function

    on charging at the beginning of this manual. The battery can be charged either on or off the bike. To remove the battery first turn off the power by switching the on/off button to off. Unlock the battery and pull out from the rear carrier housing. On the handle bars LCD function description 10.1...
  • Page 11 10.3.7 If a problem is suspected with the bike press the set button and down arrow simultaneously to display any error code. Refer to section 8 for the error code descriptions. Contact your wisper dealer for advice should this occur.

  • Page 12: The Lights

    The LIGHTS 11.1 The front light is powered by the main battery and is switched on following the procedure above. Always ensure you observe the correct polarity of the connecting wires if they are removed for any reason. 11.2 The rear light is also powered as above. Due to the low power consumption use of the lights will not reduce the range of the bike.

  • Page 13: Gear Shifter

    Gear shifter 14.1 The 806 Alpino is fitted with an 8 speed Alfine gear unit contained within the rear hub. The gear shifter is locate don the right hand side of the handlebars. Pushing the upper large lever away from you will change into a higher gear.

  • Page 14: The Front Connection Box (Manifold)

    front and rear V brake adjustment 14.3.1. Use a 5mm Allen key to loosen bolt A, then take the cable out. Use a 5mm Allen key to loosen bolts C (right & left), then take the spacers and washers out 14.3.2.
  • Page 15 Quick release saddle height, handlebar adjustment and folding mechanism 17.1 Your Wisper bike has been fitted with a quick release seat post clamp to facilitate the movement of the saddle to change the riding position. 17.2 It is important that the nut on the collar is tightened so the post will move in the seat post tube.
  • Page 16 Saddle post suspension 16.6 For your comfort your bike has been fitted with saddle post suspension it has been set for a person weighing 75kg. If you are lighter than this you may not feel any benefit and if you are heavier you may feel the suspension bottoming out.

  • Page 17: Rims And Spokes

    Rims and spokes It is essential to have your spokes checked and tightened after 300 miles or 500km. This is a free service provided by your supplier. If this service has not been undertaken at the correct time this may cause damage to the wheels and spokes that will not covered under our guarantee.
  • Page 18 Battery maintenance, and user responsibilities Your Wisper bike is equipped with a powerful, high quality lithium ion (polymer) battery. Lithium ion (polymer) is recognised as being the very best type of battery for electric bicycle use.

  • Page 19: Service Contacts

    We reserve the right to check batteries claimed under warranty to ensure they have been maintained as per our instructions. Service through Your retailer Wisper Ltd 10 Oakenbrow Sway Hants SO41 6DY Tele: 01590 681553 Mobile: 07977 185830 douglas.lawson@wisperbikes.com www.wisperbikes.com Copyright January 2010 Wisper Ltd - 19 -...
