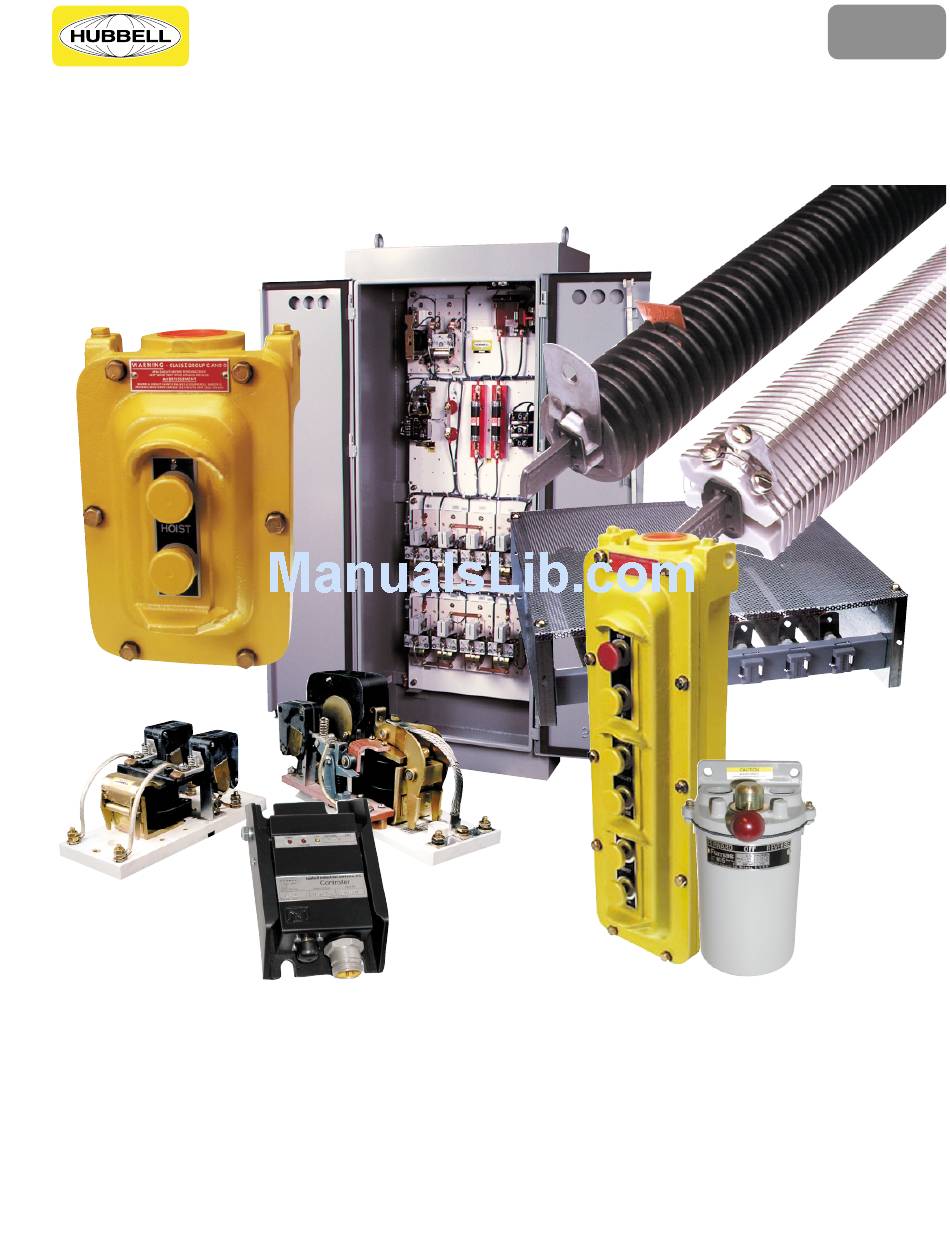

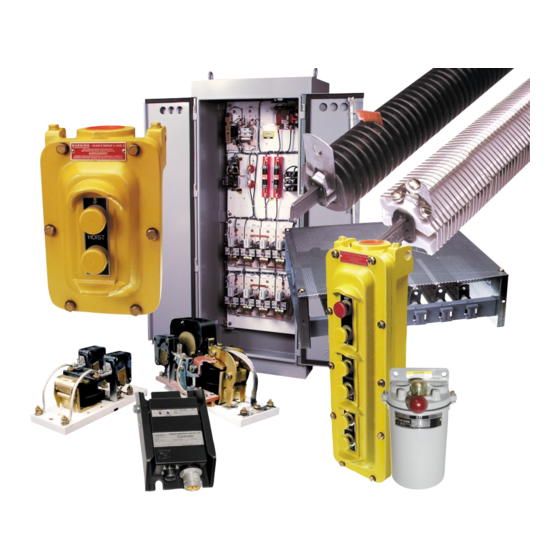

- Page 1 ® 100E hubbell industrial controls, inc. EUCLID EUCLID • AC & DC Motor Controllers and Accessories • Power & Neutral Grounding Resistors • Pushbuttons • Magnet Controllers • Speed Switches • Sensing Devices • Drum Switches...
- Page 2 • Tachometer/Overspeed EUCLID Hubbell offers several different controls for swing, bascule or vertical lift bridges. Type of control is determined by the mechanical and structural features of the bridge and the number and location of drive motors. AC Motor Controllers: •...
- Page 3 EUCLID Type 5330 Frequency Relay Solid state, in-line timing unit for AC or DC contactor and relay control circuits where a timed “ON” delay is required. Typical application is on crane and mill drives. The tim- ing range is field adjustable by integral potentiometer and ranges from 0.08 seconds to 16.0 seconds, depending on model.
- Page 4 Versatile PBM Pendant Station • Basic modular construction. • Light weight, rugged, “Safety Yellow” molded enclosures. • NEMA 3, 3R, 4, 4X when equipped with Hubbell PBM 4X inserts and Hubbell Cord Connector Kits. • Readily available 22mm NEMA 4X pushbutton elements.
- Page 5 EUCLID Type HHC Power Resistor Used for resistance grounding of industrial power Systems. They limit the maxi- mum fault current to a value which will not damage generating, distribution, or other associated equipment in the power system, yet allow sufficient fault current to flow to operate protective relays to clear the fault.
- Page 6 Model 4292 Yardmaster Lifting Magnet Control Fused safety disconnect switch designed to safely allow the operator to disconnect a highly inductive lifting magnet while the magnet is still energized. Standard safety switches are not designed to disconnect an energized magnet.
- Page 7 EUCLID greater accuracy and durability); Light chopping disk with an LED light source and light sensitive cell; Proximity sensing (a non-contact technology which requires no physical connection such as input shaft extension). Cast iron, cast aluminum, brass or fiberglass reinforced poly- ester enclosures meet NEMA ratings (specific rating varies with model).
- Page 8 • Available as AC or DC. • Automatic reset. • Easy maintenance and access to fingers, contact tips, drum segments and tension springs. Hubbell Industrial Controls, Inc. a subsidiary of Hubbell Incorporated 4301 Cheyenne Drive., Archdale, NC 27263 Telephone (336)434-2800 • FAX (336)434-2803 http://www.hubbell-icd.com sales@hubbell-icd.com...
