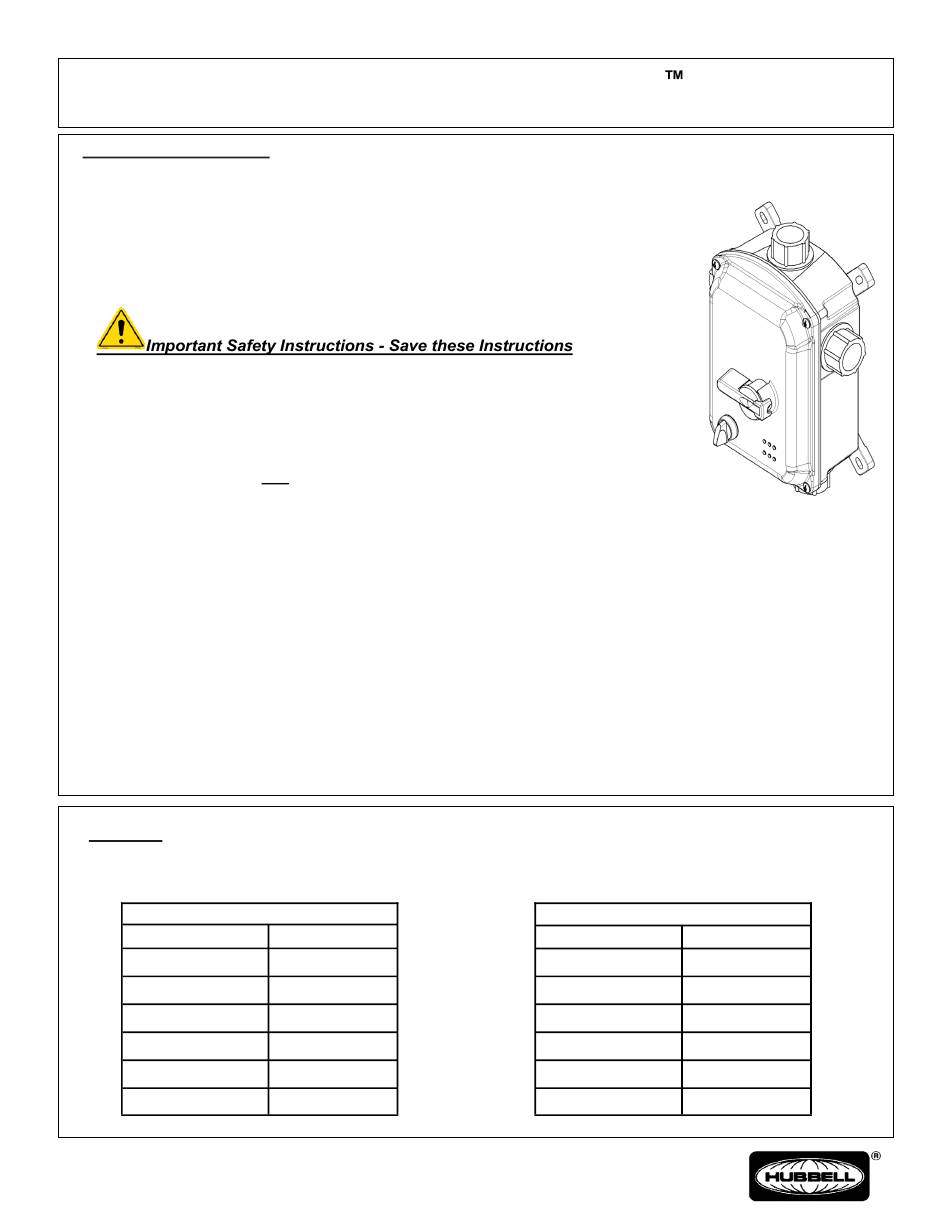

Hubbell CIRCUIT-LOCK HBLDS60 Series Manual

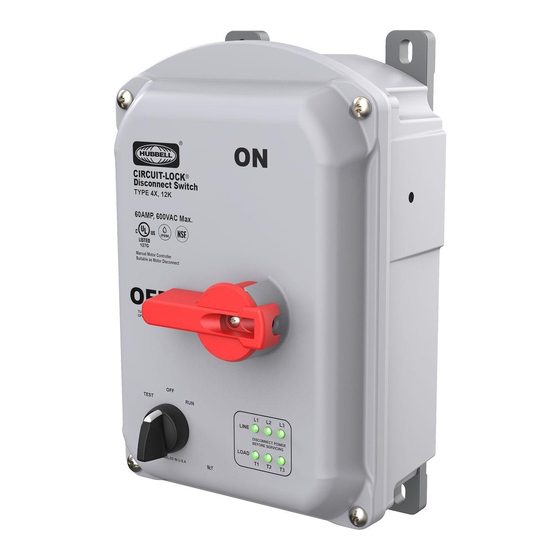

DISCONNECT SWITCH (HBLDS60 Series and HBLDS100 Series)
GENERAL INFORMATION
• This Disconnect Switch provides ON-OFF control of a directly connected load.
• These devices are suitable for indoor and outdoor locations where watertight, corro-
sion resistant, or dust tight protection are required.
• This MANUAL MOTOR CONTROLLER is additionally listed within its horsepower and
voltage ratings as SUITABLE FOR MOTOR DISCONNECT, and provides ON-OFF
switched CONTROL and ISOLATION of connected loads from its power supply.
• NOTICE: For installation only by a qualified electrician in accordance with the National
Electrical Code® or the Canadian Electrical Code, local codes, and the instructions on
the following pages.
• CAUTION: RISK OF ELECTRIC SHOCK. MORE THAN ONE SUPPLY DISCON-
NECT MAY BE REQUIRED TO DE-ENERGIZE THIS EQUIPMENT BEFORE SER-
VICING. DISCONNECT ALL POWER SUPPLIES TO ENCLOSURE BEFORE EX-
POSING INTERIOR.
• NOTICE: Separate overcurrent protection must be provided in accordance with National Electrical Code® Article
240 or Canadian Electrical Code, Section 14, as appropriate.
• FOR USE WITH COPPER CONDUCTORS ONLY
• DO NOT tin conductors.
• Conductors shall be sized in accordance with the 60 °C (for 60A) or 75 °C (for 100A) column of Table 310.16 of
the National Electrical Code or Table 2 of the Canadian Electrical Code. Conductor insulation shall be rated 90 °C
or higher.
• Suitable for use on a circuit capable of delivering not more than 10,000 rms symmetrical amperes, 600 VAC maxi-
mum. Suitable for use on a circuit capable of delivering not more than 65,000 rms symmetrical amperes, 600 VAC
maximum when protected by Class J fuses rated 100 amperes maximum.
• This enclosure includes a lockout provision: ON-OFF control knob (in the OFF position) accepts up to 5/16 inch
(8mm) diameter shackle of a suitable padlock. Lockout device to isolate energy from the connected equipment as
a method of compliance to OSHA Lockout/Tagout Regulation 29 CFR Part 1910.147. This feature, however, does
NOT isolate the power supplied to the enclosure during internal servicing of the enclosure.
RATINGS: HBDLS60 Series and HBDLS100 Series
1. Electrical: See Tables 1 and 2
TABLE 1
60 Amp
7.5 HP (5.6 kW)
15 HP (11.19 kW)
30 HP (22.37 kW)
30 HP (22.37 kW)
50 HP (37.28 kW)
50 HP (37.28 kW)
Wiring Device-Kellems
Hubbell Incorporated (Delaware)
1-800-288-6000
Shelton, CT 06484
www.hubbell-wiring.com
PD3053 (Page 1) 04/24
HUBBELL 60A, & 100A
600 VAC
120 VAC 1Ø
200-240 VAC 1Ø
480 VAC 1Ø
200-240 VAC 3Ø
480 VAC 3Ø
600 VAC 3Ø
CIRCUIT-LOCK
TABLE 2
100 Amp
7.5 HP (5.6 kW)
15 HP (11.19 kW)
30 HP (22.37 kW)
30 HP (22.37 kW)
50 HP (37.28 kW)
50 HP (37.28 kW)
Assembled in U.S.A.
Patent Pending
600 VAC
120 VAC 1Ø
200-240 VAC 1Ø
480 VAC 1Ø
200-240 VAC 3Ø
480 VAC 3Ø
600 VAC 3Ø
