14A
14A-1
POWER SYSTEMS, INC.
OVERHEAD SWITCHES
Gang-Operated
Type AR, Type D7 and Type D6
Warranty - Material
The Chance Company warrants all products sold by it to be merchantable (as such term is defined in the Uniform Commercial Code) and to be free from defects in material and workmanship. Buyer
must notify the Company promptly of any claim under this warranty. The Buyer's exclusive remedy for breach of this warranty shall be the repair or replacement, F.O.B. factory, at the Company's
option, of any product defective under the warranty which is returned to the Company within one year from the date of shipment. NO OTHER WARRANTY, WHETHER EXPRESS OR ARISING BY
OPERATION OF LAW, COURSE OF DEALING, USAGE OF TRADE OR OTHERWISE IMPLIED, SHALL EXIST IN CONNECTION WITH THE COMPANY'S PRODUCTS OR ANY SALE OR USE
THEREOF. The Company shall in no event be liable for any loss of profits or any consequential or special damages incurred by Buyer. The Company's warranty shall run only to the first Buyer of a
product from the Company, from the Company's distributor, or from an original equipment manufacturer reselling the Company's product, and is non-assignable and non-transferable and shall be of
no force and effect if asserted by any person other than such first Buyer. This warranty applies only to the use of the product as intended by Seller and does not cover any misapplication or misuse of
said product.
Warranty - Application
The Chance Company does not warrant the accuracy of and results from product or system performance recommendations resulting from any engineering analysis or study. This applies regardless
of whether a charge is made for the recommendation, or if it is provided free of charge.
Responsibility for selection of the proper product or application rests solely with the purchaser. In the event of errors or inaccuracies determined to be caused by The Chance Company, its liability will
be limited to the re-performance of any such analysis or study.
NOTE: Because Hubbell has a policy of continuous product improvement, we reserve the right to change design and specifications without notice.
Copyright 2007 Hubbell Incorporated • 210 North Allen Street • Centralia, MO 65240 USA
©
Printed in USA
HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
SEPTEMBER 2007
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hubbell Type AR
Summary of Contents for Hubbell Type AR
- Page 1 NOTE: Because Hubbell has a policy of continuous product improvement, we reserve the right to change design and specifications without notice. Copyright 2007 Hubbell Incorporated • 210 North Allen Street • Centralia, MO 65240 USA ©...

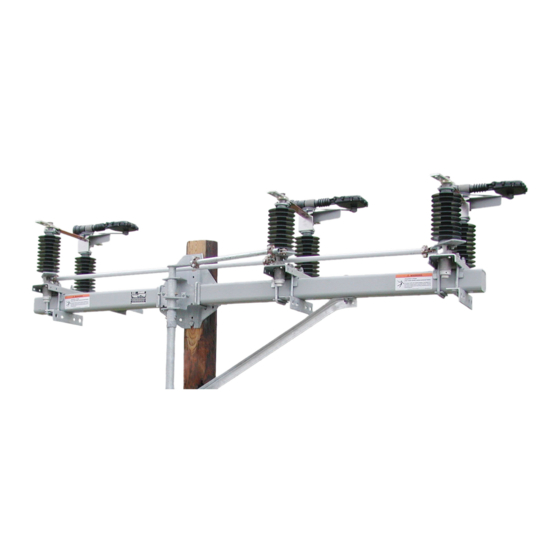

- Page 2 To minimize field installation time, the Type AR switch is pre-assembled, adjusted and mounted on a crossarm. Instal- lation time is even faster for a Type AR switch with the hook stick-operation option. Horizontal Mounting (Torsional...
-
Page 3: Available Options
• Four mounting arrangements Interrupter Available Options Hook stick Operation The Type AR switch can be operated by a hook stick operation. This option eliminates control pipe sections down the pole and their attendant adjustment during installation and maintenance. -
Page 4: Horizontal Mounting
® ® 14A-4 POWER SYSTEMS, INC. Type AR (Automation-Ready) Switch 14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt Horizontal Mounting SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI... -
Page 5: Vertical Mounting
® ® 14A-5 POWER SYSTEMS, INC. Type AR (Automation-Ready) Switch 14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt Vertical Mounting HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI SEPTEMBER 2007... - Page 6 (TYPICAL) "B" GROUND STRAP 6" 152 MM OPEN AND CLOSED LOCKING PROVISIONS STANDARD CONTROL TYPE "S" AND "F" HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI "A" ALL MOUNTING HARDWARE 5/8"(16 MM)DIA 6" 152 MM 2-1/2" 32" 64 MM 813 MM VIEW "A"-"A"...
- Page 7 ® ® 14A-7 POWER SYSTEMS, INC. Type AR (Automation-Ready) Switch 14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt Delta Mounting HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI SEPTEMBER 2007...
- Page 8 ® ® 14A-8 POWER SYSTEMS, INC. Type AR (Automation-Ready) Switch 14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt Inverted Mounting SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI...
-
Page 9: Replacement Parts
* RR = Two Extra Pipes T = Terminal Connectors (ATC 1343) † X = Extension Links Replacement Parts C8180001 E8181000P HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI POWER SYSTEMS, INC. X X X Position 3: Crossarm/Inter- Phase Shaft S = Steel... - Page 10 27 kV (150 kV LIW*), 34.5kV (150kV LIW*) or 38 kV (200 kV LIW*). The D7 is a 600-ampere loadbreak switch with the Duogap of switching load currents up to 600 amperes, with full recovery voltage across the switch, and interrupting transformer magnetizing and line-charging currents. This switch may be used for disconnecting, line sectionalizing, circuit breaker bypassing, and isolating.
- Page 11 NEMA terminal pads. The blade is a round tubular copper with flattened ends to allow for a silver/copper contact. A four-point silver plated contact is supplied on the jaw end to make the switch easier to open and close. An all-copper current path is provided.
- Page 12 14A-12 POWER SYSTEMS, INC. Unitized and Pre-Assembled Type D7 Switches — Riser Pole Mounting Dimensions (inches) *34.5 *150 kV LIW (Lightning Impulse Withstand) SEPTEMBER 2007 ® Unitized 15 to 38 kV 600 Amperes HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI...
- Page 13 Unitized and Pre-Assembled Type D7 Switches — Horizontal Mounting *34.5 *150 kV LIW (Lightning Impulse Withstand) HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI POWER SYSTEMS, INC. 15 to 38 kV 600 Amperes Dimensions (inches) ® Unitized Horizontal Mounting 38 kV — 200 BIL SEPTEMBER 2007 ®...
- Page 14 Type D7 Switches — Phase-over-Phase Mounting SEPTEMBER 2007 ® 15 to 38 kV 600 Amperes 38 kV — 200 kV LIW (Lightning Impulse Withstand) Dimensions (inches) *34.5 *150 kV LIW (Lightning Impulse Withstand) HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI Unitized Phase-over-Phase Mounting...
- Page 15 Type D7 Switches — 15kV (110kV LIW*) Switch Phase Outline 27kV (150kV LIW*) Switch Phase Outline 34.5 kV (150kV LIW*) Switch Phase Outline *Lightning Impulse Withstand HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI POWER SYSTEMS, INC. Unitized 15 to 38 kV 600 Amperes ®...
-
Page 16: Ordering Information
38 kV 600 Amperes Type D7 Unitized Switches Catalog Numbering System D7 X X X X X X HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI Unitized Options A- Additional 10 ft. operating pipe, coupling, and guide bracket. Horizontal mounting only. Cat. No. E8012729P. - Page 17 The standard D6 switch design allows for a multitude of mounting and control configurations. The switch can be mounted horizontally or vertically. Controls can be installed on any side of the pole or off the switch ends for structure mount.
- Page 18 N - No interrupter 3. Consult factory for motor operators. 4. If non-standard phase spacing is required, please pro- vide length of interphase control desired. HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI Non-Unitized 600 Amperes 38 kV — 200 kV LIW* Options guide bracket.
- Page 19 ® ® 14A-19 POWER SYSTEMS, INC. HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI SEPTEMBER 2007...
- Page 20 Centralia, Mo 65240-1395 Phone: 573-682-5521 Fax: 573-682-8714 e-mail: hpsliterature@hps.hubbell.com ™ SEPTEMBER 2007 ® ® HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI MEXICO HUBBELL DE MEXICO, S.A. DE. CV Av. Coyoacan No. 1051 Col. Del Valle 03100 Mexico, D.F. Phone: 52-55-9151-9999 Fax: 52-55-9151-9988 e-mail: vtasdf@hubbell.com.mx...
