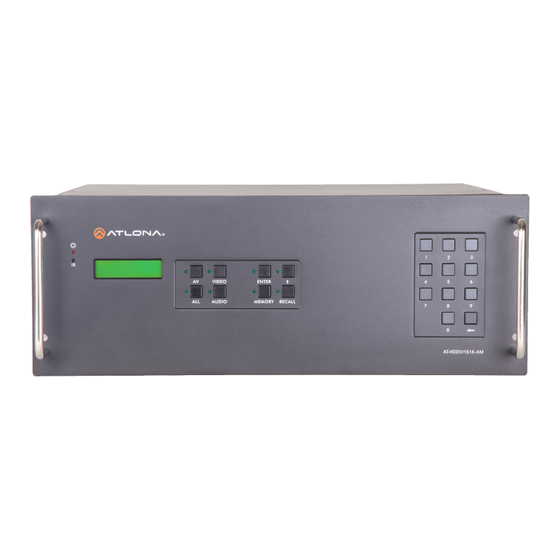

Page 1: Matrix Switcher
Atlona 16 by 16 DVI and Audio Matrix Switcher AT-HDDVI1616-AM User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
................... 6-8 8. RS-232 ................... 9-10 9. EDID ................... 10-11 10. Audio ................... 11-12 11. Connection and Installation ................... 12 12. Safety Information ................... 13 13. Warranty ................... 14 14. Atlona Product Registration ................... 15 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona 16 by 16 DVI and Audio Matrix Switcher is HDCP compliant, has 3 control options, 9 programmable memory presets, fast switching, and EDID learning. With switching as fast as .5 seconds and resolutions of up to 1920x1200 or 2k by 1k get the crisp video needed for presentations of all types. -
Page 4: Specifications
2. IR Receiver. Point your included IR remote control for the matrix switcher to receive commands 3. LCD Display. Displays commands and status messages 4. Menu for switching inputs, outputs, and functions 5. Menu for selecting inputs and outputs for your menu selections Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
Recall: Uses saved presets that you’ve created. Press Recall3 to pull up what you saved with Memory3 Enter: Used to end each selection. Example: 3AV5, press enter after to confirm your choice <--: Used for EDID selection or as a backspace. Hold for 10 seconds for EDID commands Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Remote Control
They are available through the front panel, TCP/IP and RS-232 controls. TCP/IP TCP/IP is another way to control your AT-HDDVI1616-AM. Connect with an ethernet cable to your network or computer. After connecting the cable you’ll need to configure the IP on your computer. P address: 192.168.0.80... - Page 7 To change the IP of the Matrix (normally 192.168.0.178) type the matrix IP address into Internet Explorer’s address bar. A log in screen should appear. The password is 88888. You must press the Login button. Pressing enter will cause it to return with a failed password page. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 8 Using the TCP/IP software Download the newest software for control off the web page for the AT-HDDVI1616-AM. Unzip the file. An Atlona icon (like pictured to the left) should appear. Double click the file to open up the control software.
-
Page 9: Rs-232
Erases the save for the number you selected EDIDMx1AVx2 EDIDMx1AVx2 Copies the EDID from output (x1) to Input (x2) (output 3 to input 7 = EDIDMx3AVx2) EDIDMInit EDIDMInit Resets EDID to factory settings Undo Undo Cancels the previous command Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 10: Edid
The AT-HDDVI1616-AM has two EDID settings: default and learning. Default saves the settings of 1920x1200 resolution and 2 channel audio to all outputs. The learning setting will allow for the copying of an output’s EDID to specific inputs. -
Page 11: Audio
8 is incapable of producing that resolution without a scaler. Audio (Balanced and Unbalanced) The AT-HDDVI1616-AM uses captive screw connectors for audio. Captive screw uses two types of audio: balanced and unbalanced. To be sure which to use refer to the manual for the connected device. -
Page 12: Connection And Installation
Connections Laptops Cameras PC w/RS-232 and TCP/IP AT-HD610 AT-PA100 Projectors Laptops HDTV Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 13: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HDDVI1616-AM. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 14: Warranty
Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 15: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
