Summary of Contents for Atlona AT-HD-V1616M
-

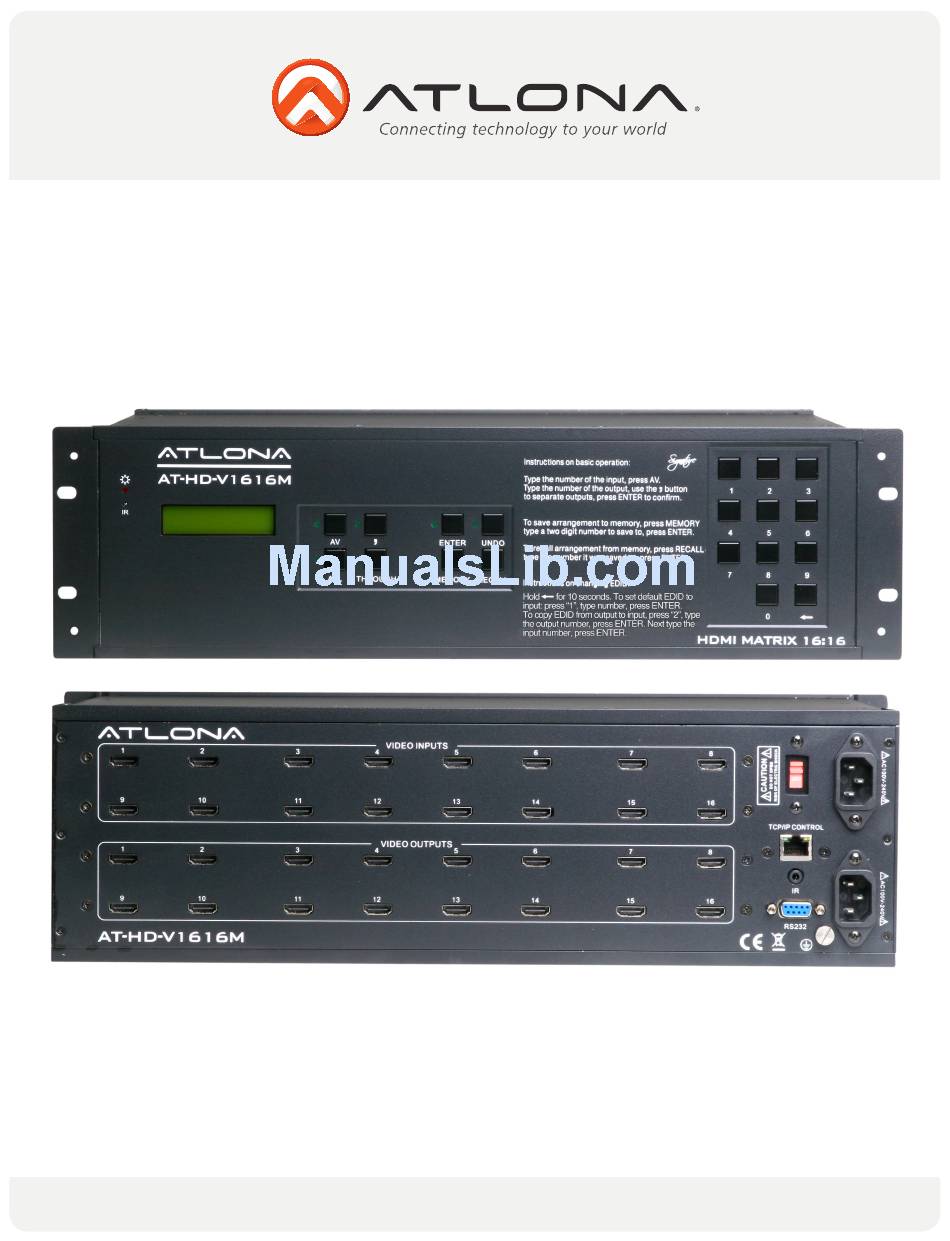

Page 1: User Manual
HDMI 16 by 16 Matrix Switcher AT-HD-V1616M User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
AT-HD-V1616M Atlona HDMI 16 by 16 Matrix Switcher Table of Contents 1. Introduction ................3 2. Package Contents ................3 3. Features ................3 4. Specifications ................4 5. Control and Functions a. Front Panel ................4 b. Back Panel ................ -
Page 3: Introduction
The Atlona HDMI 16 by 16 Matrix Switcher has something for most of your professional needs. The Atlona AT-HD-V1616M is compatible with all current HDMI to DVI sources and will support resolutions up to 1920x1200 or 1080p. -
Page 4: Specifications
AT-HD-V1616M Atlona HDMI 16 by 16 Matrix Switcher Specifications Bandwidth frequency 10.2 Gbps (340 MHz) Input Ports 16 HDMI (Female Type) Output Ports 16 HDMI (Female Type) 1 RS-232 port 1 IR 3.5mm port 1 Ethernet port Resolution outputs Video: 480i, 576i, 1080i... -
Page 5: Back Panel
AT-HD-V1616M Atlona HDMI 16 by 16 Matrix Switcher Back 1. Video Inputs. Sources such as DVD players and computers should be connected here. 2. Video Outputs. Video displays should be connected here. 3. Power Regulator. Switch between 110V (US standard) and 220V (EU base standard). -
Page 6: Ir Remote Control
They are available through the front panel and RS-232 controls. TCP/IP TCP/IP is another way to control your AT-HD-V1616M. Connect with an ethernet cable to your network or computer. After connecting the cable you’ll need to configure the IP on your computer. -
Page 7: Set Up
AT-HD-V1616M Atlona HDMI 16 by 16 Matrix Switcher TCP/IP Set Up Go to the Network Connections folder and right click on the connection you would like to edit. Select Properties. Find Internet Protocol in your list. There will be either Version 4 or 6, if there are both protocols choose Version 4. -
Page 8: Rs-232
AT-HD-V1616M Atlona HDMI 16 by 16 Matrix Switcher RS-232 Connection RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used... -
Page 9: Edid
The AT-HD-V1616M has two EDID settings: default and learning. Default saves the settings of 1080p resolution and 2 channel audio to all outputs. The learning setting will allow for the copying of an output’s EDID to specific inputs. -
Page 10: Connections
AT-HD-V1616M Atlona HDMI 16 by 16 Matrix Switcher Connections Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 11: Safety
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD-V1616M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 12: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 13: Registration
Atlona HDMI 16 by 16 Matrix Switcher Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
