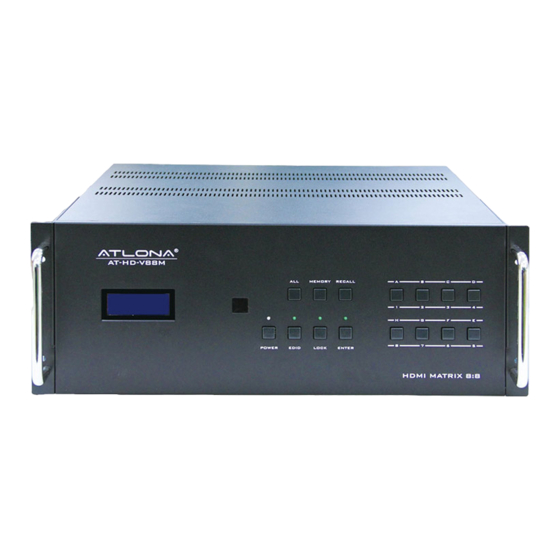

Atlona AT-HD-V88M Service Manual

8-input to 8-output hdmi 1.3 matrix switcher
Hide thumbs Also See for AT-HD-V88M:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Service
Manual for
ATLONA
8-input to 8-output
HDMI 1.3
Matrix Switcher
AT-HD-V88M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HD-V88M and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-HD-V88M

Summary of Contents for Atlona AT-HD-V88M

  • Page 1 Service Manual for ATLONA 8-input to 8-output HDMI 1.3 Matrix Switcher AT-HD-V88M...

  • Page 2: Table Of Contents

    1. RACK EAR GUIDELINES…………………………….3 2. NO POWER ON THE SWITCH……………….…….4 3. IMAGE IS BAD/FLICKERS………………….………4 4. NO IMAGE/NO AUDIO…………………....4 5. IR ISSUES…………………………………....5 6. EDID LEARNING PROCESS……………………..6 7. HDCP KEYS………………………………....7 8. UPC/APS……………………………………………………8 9. CONTROLLING VIA RS232………………………….8 10. FIRMWARE UPDATE…………………………………9 11. ADDING MORE OUTPUTS TO THE MATRIX SWITCHER (8x16, 8x24, 8x32, 8x40)………………9 12.

  • Page 3: Rack Ear Guidelines

    1.RACK EAR GUIDELINES First, screw “Assembly Screw” to the L-Shape holder to rack frame. Second, please take the other “Assembly Screw” and screw it to the L-Shape holder. One on the Right side and one on the left side of the rack. Please do this for both sides with the L-Shape holder.

  • Page 4: No Power On The Switch

    Please switch your DVD Player or another source to the lowest displays optimal resolution. If you don’t want to sacrifice the quality on all the TV’s, Atlona offers HDMI down Converter to convert the signal from (example: 1080p 720P) There is no audio on the TV or receiver.

  • Page 5: Ir Issues

    5. IR ISSUES When installing IR’s, the IR TX (Transmitter) is used on Sources. The eye should be placed over the Source IR eye on most applications. If their signal issues for example, device is not switching, there is lag, the IR is being over flooded. Place the IR TX to the side of the IR eye or up or down to fix the issue.

  • Page 6: Edid Learning Process

    IR Pin Assignment 6. EDID LEARNING PROCESS EDID Settings (PLEASE READ, IT IS VERY IMPORTANT): Please read the instructions. EDID: Press this button to select the EDID function from the Display. There will be two selections available shown on the display: 1. Standard Mode and 2. TV Mode Press the number key to select the desired input first, and then press 1 or 2 to select the EDID mode.

  • Page 7: Hdcp Keys

    380 displays at the same time. The way Atlona does it requires a lot of software writing and it is a very hard way of doing it; however we think that it is very important that user is capable of viewing as many displays as needed and not limited to capabilities of the sources.

  • Page 8: Controlling Via Rs232

    The UPC/ APC back ups are meant to be ran with computers and servers. They have been used in the AV environment, but we advise against using them. They are not meant to be ran with A/V equipment. The solution would be to get dedicated surge protectors or power filters.

  • Page 9: Firmware Update

    Commands 10. FIRMWARE UPDATE The firmware can be updated though service USB port on the back of the switch. (PICTURE) 11. ADDING MORE OUTPUTS TO THE MATRIX SWITCHER (8x16, 8x24, 8x32, 8x40) The matrix is only able to have a total of 8 inputs. We have came up with a feasible solution to be able to expand those 9 inputs to more than 8 out puts.
  • Page 10 AT-HDV12: Atlona 1x2 HDMI Distribution Amplifier (HDMI 1.3) with 3D Support The Atlona 1x2 HDMI (Ver. 1.3) distribution amplifier is a unique device that allows users to connect any digital video source, such as: DVD, Satellite, Cable Box, PC, Xbox, PS3 and more with up to 2 digital HDMI displays.

  • Page 11: Using Other Sources Without Hdmi

    8 digital HDMI displays. 12. USING OTHER SOURCES WITHOUT HDMI. The solution to it is to contact Atlona for a conversion box to convert any signal you might have to HDMI. Atlona offers a wide variety of conversion boxes specifically designed for ap- plication such as this.
  • Page 12 AT-HD560: Atlona Pal HDMI to NTSC HDMI Converter 1080p Atlona AT-HD560 is an advanced HDMI to HDMI Scaler Box. It accepts HDMI input with a separate Toslink or analog audio and scale it to HDMI output (at a number of selectable...
  • Page 13 The Atlona AT-HD520 is designed to upscale analog video signal from Composite or S-Video input sources to digital HDMI output with wide-range of HDTV and PC resolutions; up to 1080p. The Atlona Scaler is also capable of converting Pal to NTSC or NTSC to Pal. AT-HD530: Atlona HDMI/DVI to Composite and S-Video Down-Converter...
  • Page 14 AT-HD500: Atlona PC / Laptop to HDMI Converter with built-in Scaler up to 1080p The Atlona AT-HD500 is designed to take video signal from PC or Laptop and upscale it to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p or WUXGA (1920x1200).
  • Page 15 AT-COMP-HDMI: Atlona Component Video with Optical to HDMI Converter Atlona component with digital audio to HDMI converter, converts analog YPrPb or YCrCb and audio to digital HDMI format. It allows you to connect the component output from DVD or Set-Top-Box to digital HDMI input of HD ready plasmas, LCD's or DLP TV's. Supports high resolution up to 1080p.
