Summary of Contents for Gefen GTB-USB2.0-4LR

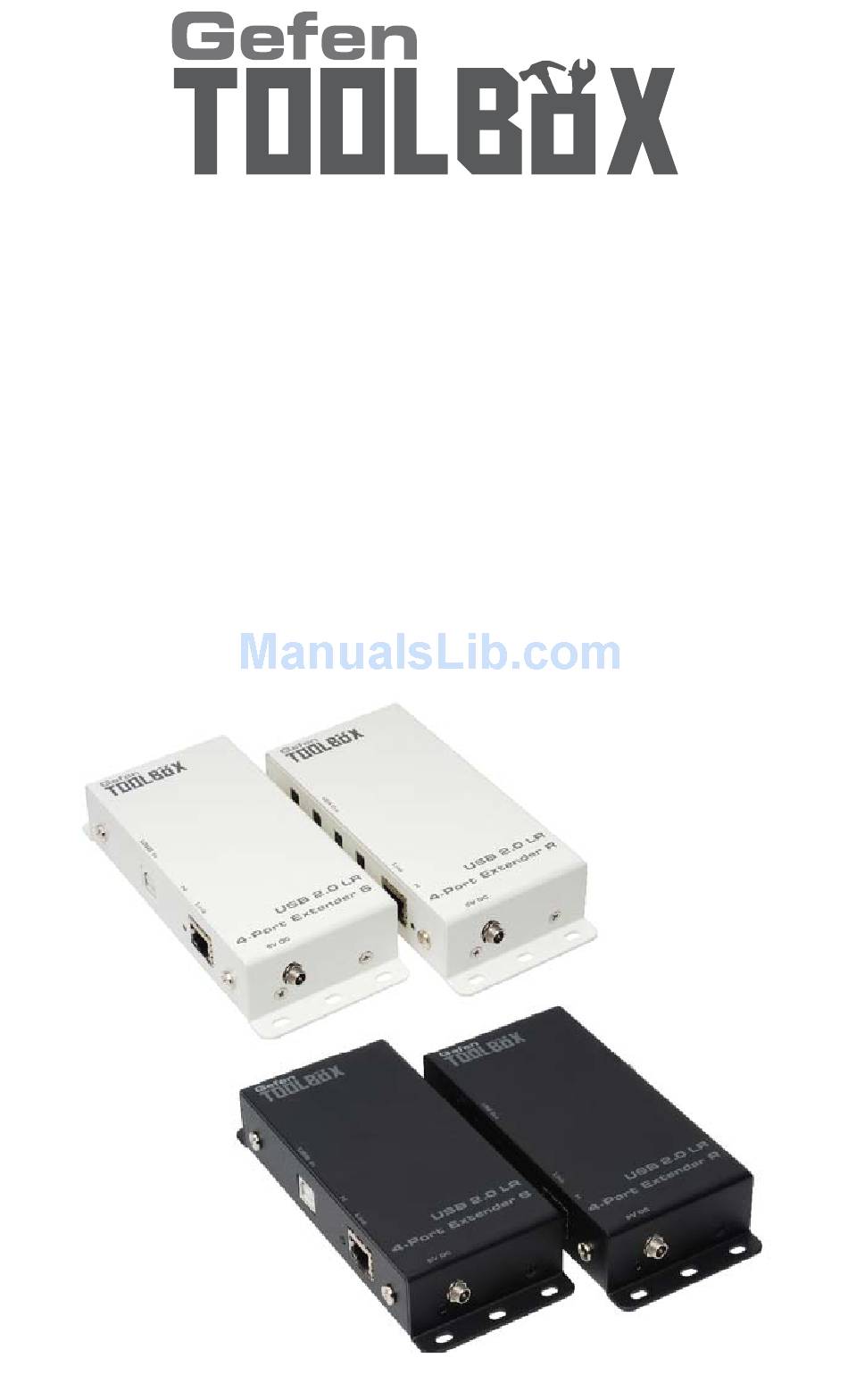

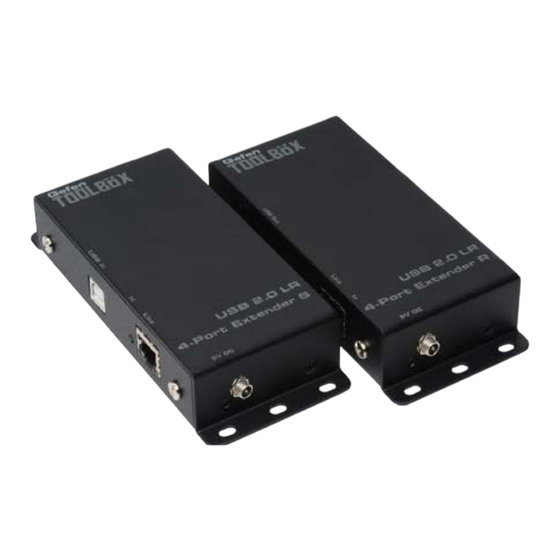

- Page 1 USB 2.0 LR 4-Port Extender GTB-USB2.0-4LR GTB-USB2.0-4LR-BLK User Manual...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. USB 2.0 LR 4-Port Extender is a trademark of Gefen, LLC © 2011 Gefen, LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Unit Panel Layout Sender Unit Panel Descriptions Receiver Unit Panel Layout Receiver Unit Panel Descriptions Connecting And Operating The USB 2.0 LR 4-Port Extender Troubleshooting 10 Network Cable Wiring Diagram 11 Specifi cations 12 Warranty... -
Page 4: Introduction
Congratulations on your purchase of the USB 2.0 LR 4-Port Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE USB 2.0 LR 4-PORT EXTENDER • Use industry standard CAT-5e or CAT-6. Gefen recommends using solid core cabling for maximum performance. • The USB 2.0 LR 4-Port Extender is USB 2.0/1.1 compliant •... -
Page 6: Features
Receiver supports up to 4 powered USB 2.0 connections at 500 mA each Package Includes (1) Gefen USB 2.0 4-Port Extender Sender Unit (1) Gefen USB 2.0 4-Port Extender Receiver Unit (1) 5V DC Power Supply with Locking Power Connector (1) 6 ft. -
Page 7: Sender Unit Panel Layout
SENDER UNIT PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Unit Panel Descriptions
SENDER UNIT PANEL DESCRIPTIONS USB Input Port Connect the USB host device to this port. Power Indicator This LED will become active once a valid connection is made between the included 5V DC power supply and an open wall power socket. CAT-5 Output Jack Connects the Sender Unit to the Receiver Unit using CAT-5e/CAT-6 cabling. -
Page 9: Receiver Unit Panel Layout
RECEIVER UNIT PANEL LAYOUT Front Panel Back Panel... -
Page 10: Receiver Unit Panel Descriptions
RECEIVER UNIT PANEL DESCRIPTIONS USB Output Port (1 - 4) Connect the USB devices to these ports. Host Connection Indicator (1 - 4) These LEDs will turn bright green once a connection is made from the host device to a USB accessory device via the USB 2.0 LR 4-Port Extender. CAT-5 Input Jack Connects the Receiver Unit to the Sender Unit using CAT-5e/CAT-6 cabling. -
Page 11: Connecting And Operating The Usb 2.0 Lr 4-Port Extender
AC power cords. Wiring Diagram for the USB 2.0 LR 4-Port Extender Gefen CAT5 LINK CABLE (Up to 330 ft) USB 2.0 CABLE USB 2.0 Source USB 2.0 HDD Sender USB 2.0 Mouse Receiver Receiver USB 2.0 Keyboard USB 2.0 Printer GTB-USB2.0-4LR... -
Page 12: Troubleshooting
TROUBLESHOOTING Using the LED Indicators to Troubleshoot Issues Power LED The power LED indicators should be active once the included 5V DC power supply has been properly connected between the receiving unit and an open wall power socket. A non-active LED can indicate a power problem. Check that the power cable is properly connected and locked to the Receiver unit. -
Page 13: Network Cable Wiring Diagram
NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green Brown / White... -
Page 14: Specifications
SPECIFICATIONS USB 2.0 Speed ..................480 Mbps Link Connectors ................RJ-45 Shielded USB Connector (in) Transmitter ..........(1) USB type B USB Connectors (out) Receiver ..........(4) USB type A Power Supply ....................5V DC Power Consumption (Sender)……..…….......….. 2.5W (max.) Power Consumption (Receiver) ............20W (max.) Operating Temperature ................ - Page 17 Rev A4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentoolbox.com support@gefentoolbox.com...
