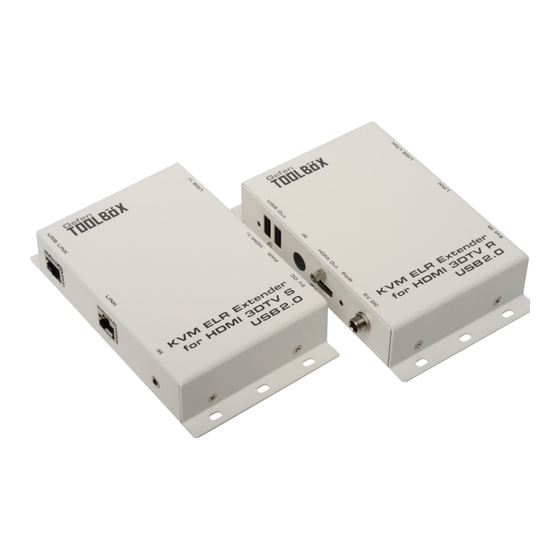

Kvm elr extender for hdmi 3dtv

Advertisement

Quick Links

KVM ELR Extender
for
HDMI 3DTV
GTB-3DTV-KVM
GTB-3DTV-KVM-BLK
User Manual
www.gefentoolbox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTB-3DTV-KVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen GTB-3DTV-KVM

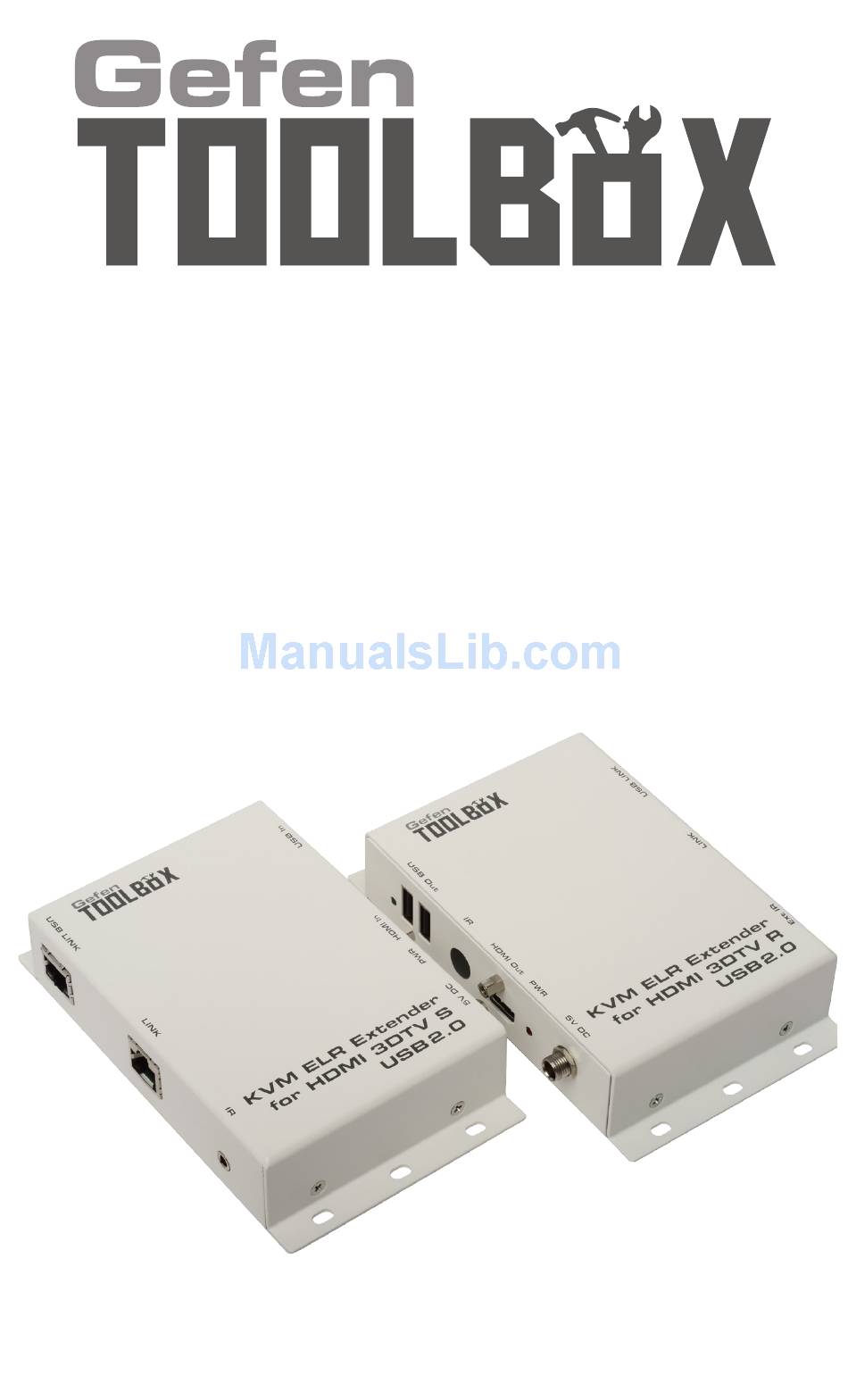

  • Page 1 KVM ELR Extender HDMI 3DTV GTB-3DTV-KVM GTB-3DTV-KVM-BLK User Manual www.gefentoolbox.com...
  • Page 3 Chatsworth, CA 91311 www.gefentoolbox.com support@gefentoolbox.com Notice Gefen, LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. KVM ELR Extender for HDMI 3DTV is a trademark of Gefen, LLC HDMI, the...
  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Unit Descriptions Receiver Unit Layout Receiver Unit Descriptions Connecting the KVM ELR Extender for HDMI 3DTV DIP Switch Configuration 11 Network Cable Wiring Diagram 12 Wall Mounting Instructions 13 Specifications 14 Warranty...
  • Page 5: Introduction

    We invite you to explore our distinct product line. Please visit http://www.gefen.com for the latest offerings in High-Definition signal solutions or call us between the hours of 8:00 am and 5:00 pm Monday-Friday, Pacific Time for assistance with your A/V needs.
  • Page 6: Operation Notes

    OPERATION NOTES PLEASE READ THESE NOTES BEFORE INSTALLING OR OPERATING THE KVM ELR EXTENDER FOR HDMI 3DTV • CAT-5 or CAT-6 cables should not exceed 330 feet (100 meters). • Shielded (STP) CAT-5 or CAT-6 is recommended. However, un-shielded (UTP) CAT-5 or CAT-6 is acceptable. NOTE: The shielded cable has an advantage by providing immunity to Electromagnetic Interference (EMI), cell phones and A/C motors.
  • Page 7: Features

    FEATURES HDMI Features Supported • HDCP-compliant • 12-bit Deep Color • LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through • 3DTV pass-through • CEC pass-through • Lip Sync pass-through Features • Extends HDMI and IR up to 330 feet (100 meters)\ •...
  • Page 8: Sender Unit Layout

    SENDER UNIT LAYOUT Left Side Right Side...
  • Page 9: Sender Unit Descriptions

    Transmits the HDMI and IR signals from the Sender Unit to the Receiver Unit using CAT-5e / CAT-6 cable. Connect an IR Blaster cable (Gefen part no. EXT-2IREMIT) from this port to the Hi-Def source to control the source from the viewing location.
  • Page 10: Receiver Unit Layout

    RECEIVER UNIT LAYOUT Left Side Right Side...
  • Page 11: Receiver Unit Descriptions

    RECEIVER UNIT DESCRIPTIONS IR Ext Connect an IR Extender (Gefen part no. EXT-RMT-EXTIR) cable from this port to the Hi-Def source to extend the IR control. LINK Transmits the HDMI and IR signals from the Sender Unit to the Receiver Unit using CAT-5e / CAT-6 cable.
  • Page 12: Connecting The Kvm Elr Extender For Hdmi 3Dtv

    Wiring Diagram for the KVM ELR Extender for HDMI 3DTV CAT-5 LINK CABLE (Up to 330 ft) HDMI CABLE USB CABLE IR Emitter Receiver Home Theater Multimedia IR Extender Sender HD Display USB Printer GTB-3DTV-KVM Attention: This product should always be connected to a grounded electrical socket.
  • Page 13: Dip Switch Configuration

    DIP SWITCH CONFIGURATION Receiver Unit The Gefen KVM ELR Extender for HDMI 3DTV contains four (4) DIP switches on the bottom of the Receiver Unit (the Sender Unit does not contain DIP switches). Each of these DIP switches performs a different function.
  • Page 14 DIP SWITCH CONFIGURATION DIP Switch 2 - Hot Plug Detect (Default = OFF)* • ON - HPD Pass-Through HPD follows upstream HPD towards the source. The HPD signal will reflect the connection status between the display device and the source device. If the source or monitor is temporarily disconnected then reconnected, there will be a delay of 20 - 30 seconds before the content is restored to the monitor.
  • Page 15: Network Cable Wiring Diagram

    NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when field terminating cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green Brown / White...
  • Page 16: Wall Mounting Instructions

    WALL MOUNTING INSTRUCTIONS The GefenToolBox KVM ELR Extender for HDMI 3DTV Sender Unit and Receiver Unit may be mounted vertically on a wall or in a cabinet with wood/ drywall screws as shown in the diagram above. There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for insertion and retraction of all input and output cables.
  • Page 17: Specifications

    SPECIFICATIONS Maximum Pixel Clock................300 MHz Maximum TMDS Clock................300 MHz Input Video Signal..................1.2 V p-p Input DDC Signal.................5V p-p (TTL) HDMI Connector (Sender / Receiver)........Type A, 19-pin, female USB Connector (Sender).................(1) Type B USB Connectors (Receiver)................(2) Type IR Extender (Receiver Unit)..........3.5 mm mini-stereo jack IR Blaster (Sender Unit)...........
  • Page 18: Warranty

    If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 20 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentoolbox.com support@gefentoolbox.com This product uses UL listed or CE compliant power supplies.
