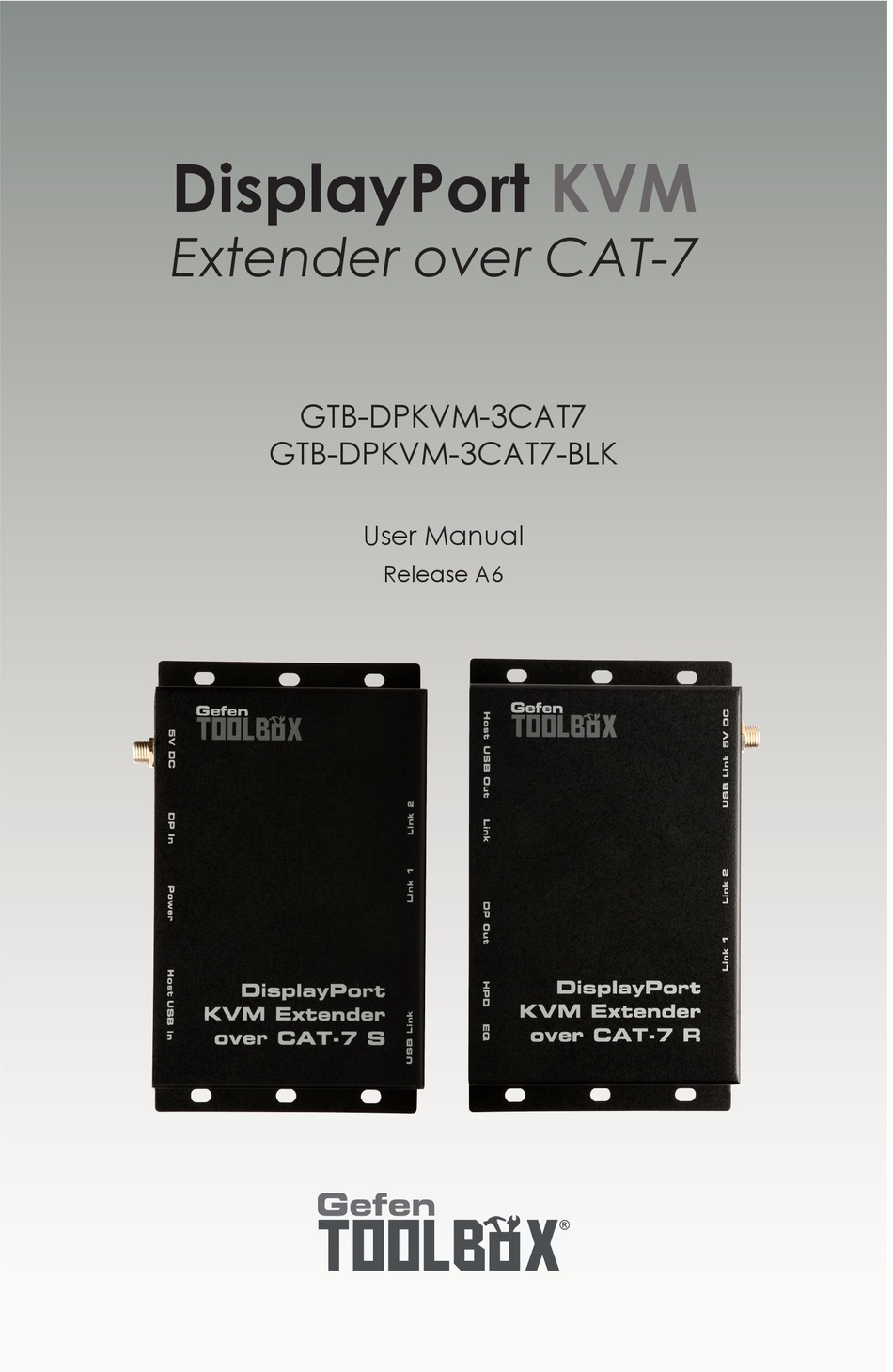

- Page 1 DisplayPort 3GSDI Audio Embedder Extender over CAT-7 GTB-DPKVM-3CAT7 GTB-DPKVM-3CAT7-BLK User Manual Release A6...
-
Page 2: Important Safety Instructions
DisplayPort KVM Extender over CAT-7 Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 4 DisplayPort KVM Extender over CAT-7 is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. © 2013 Gefen, LLC. All Rights Reserved.
- Page 5 DisplayPort KVM Extender over CAT-7 Operating Notes • CAT-7 cables should not exceed 100 feet (30 meters). • Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD plus USB are supported when using two CAT-7 cables. Three CAT-7 cables must be used to support 2560 x 1600 (WQXGA) plus USB.
-
Page 6: Packing List
The DisplayPort KVM Extender over CAT-7 ships with the items listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen. • 1 x DisplayPort KVM Extender over CAT-7 (Sender unit) •... -
Page 7: Table Of Contents
3GSDI Audio Embedder DisplayPort KVM Extender over CAT-7 Table of Contents Getting Started Panel Layout ......................2 Sender Unit (Front) ..................2 Sender Unit (Back) ..................3 Receiver Unit (Front) ..................4 Receiver Unit (Back) ..................5 Installation ......................6 Connecting the DisplayPort KVM Extender over CAT-7 ....... -
Page 9: 01 Getting Started
DisplayPort Extender over CAT-7 01 Getting Started Panel Layout ......................2 Sender Unit (Front) ..................2 Sender Unit (Back) ..................3 Receiver Unit (Front) ..................4 Receiver Unit (Back) ..................5 Installation ......................6 Connecting the DisplayPort KVM Extender over CAT-7 ....... 6 Sample Wiring Diagram ................ -
Page 10: Panel Layout
Getting Started Panel Layout Sender Unit (Front) Name Description USB Link Connect a CAT-7 cable between this jack and the USB Link jack on the Receiver unit. This RJ-45 jack must be used when extending USB. Link 1 Connect a CAT-7 cable between this RJ-45 jack and the Link 1 jack on the Receiver unit. -
Page 11: Sender Unit (Back)
Getting Started Panel Layout Sender Unit (Back) Name Description 5V DC Connect the included 5V DC locking power supply to this connector and plug the AC power cord into an available electrical outlet. Only use the power supply shipped with this unit. -
Page 12: Receiver Unit (Front)
Getting Started Panel Layout Receiver Unit (Front) Name Description Link 1 Connect a CAT-7 cable between this RJ-45 jack and the Link 1 jack on the Sender unit. Link 2 Connect a CAT-7 cable between this RJ-45 jack and the Link 2 jack on the Sender unit. Both Link 1 and Link 2 jacks (two CAT-7 cables) must be used when extending video resolutions up to 2560 x 1600. -
Page 13: Receiver Unit (Back)
Getting Started Panel Layout Receiver Unit (Back) Name Description Host This LED will glow bright green when the host USB device is connected to the USB In port. USB Out Connect up to two USB devices (mouse, keyboard, camera, etc.) to these ports. Link This LED indicator will glow bright green when a CAT-7 cable is connected between... -
Page 14: Installation
Getting Started Installation Page Title Connecting the DisplayPort KVM Extender over CAT-7 Use the included DisplayPort cable to connect the DisplayPort source to the DP In port on the Sender unit. Connect the Receiver unit to the display using a DisplayPort cable. Use the included USB cable to connect the USB host device to the USB In port on the Sender unit. -
Page 15: Sample Wiring Diagram
Getting Started Installation Sample Wiring Diagram CAT-7 LINK CABLE (Up to 100 ft) DISPLAYPORT CABLE USB CABLE Sender Receiver Computer USB Mouse DisplayPort Display USB Keyboard GTB-DPKVM-3CAT7 page | 7... - Page 17 DisplayPort Extender over CAT-7 02 Operating the DisplayPort KVM Extender over CAT-7 LED Indicators ..................... 10 Sender Unit ....................10 Receiver Unit ....................11 DIP Switch Configuration ..................12 Hot-Plug Detect (HPD) ..................13 Adjusting the Signal Quality ................14...
-
Page 18: Operating The Displayport Kvm Extender Over Cat-7
Operating the DisplayPort KVM Extender over CAT-7 LED Indicators Sender Unit The LED indicators on the Sender and Receiver unit provide basic information on the current status of the DisplayPort KVM Extender over CAT-7. Status Description Power Solid blue • Power connected to Sender unit. -
Page 19: Receiver Unit
Operating the DisplayPort KVM Extender over CAT-7 LED Indicators Receiver Unit Status Description USB Link Solid green • Power connected to the Receiver unit. • USB devices connected properly. • USB link integrity between Sender and Receiver unit is good. •... -
Page 20: Dip Switch Configuration
Operating the DisplayPort KVM Extender over CAT-7 DIP Switch Configuration The DisplayPort KVM xtender over CAT-7 contains four DIP switches on the bottom of the Sender unit. Adjust the DIP switch settings based on the type and cable length that is being used. -
Page 21: Hot-Plug Detect (Hpd)
Operating the DisplayPort KVM Extender over CAT-7 Hot-Plug Detect (HPD) The DisplayPort KVM Extender over CAT-7 has an HPD button on the front of the Receiver unit. Pressing this button will cycle the HPD (Hot-Plug Detect) line on the display (sink) device. -
Page 22: Adjusting The Signal Quality
Operating the DisplayPort KVM Extender over CAT-7 Adjusting the Signal Quality The DisplayPort KVM Extender over CAT-7 has an equalization device on the front of the Receiver unit. This 16-position rotary switch is used to adjust the boost level depending upon the length of the CAT-7 cable. -
Page 25: 03 Appendix
DisplayPort Extender over CAT-7 03 Appendix Cable Termination ....................18 Surface-Mounting Instructions................19 Specifications ...................... 20... -
Page 26: Cable Termination
Appendix Cable Termination Front of RJ-45 Connector 1 2 3 4 5 6 7 8 Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when field-terminating cable for use with Gefen products. Color Description Orange / White TD+ (Transmit Data, positive differential signal) -
Page 27: Surface-Mounting Instructions
Appendix Surface-Mounting Instructions The Gefen DisplayPort KVM Extender over CAT-7 can be mounted on any horizontal or vertical flat surface (e.g. wall or inside / outside a cabinet with wood / drywall screws) as shown in the diagram above. There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for connection and disconnection of the DisplayPort cable. -
Page 28: Specifications
Appendix Specifications Supported Formats Resolutions (max.) • 2560 x 1600 • 1920 x 1200 (WUXGA) • 1080p Full HD Electrical Video Data Rate • Up to 2.7 Gb/s EQ Switch (Receiver) • 1 x 16-position rotary type HPD Auto Calibration button (Receiver) •... - Page 30 Stretch it, Switch it, Split it, Control it. Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentoolbox.com support@gefentoolbox.com This product uses UL or CE listed power supplies.
