4K Ultra HD 600 MHz
HDBaseT™ Extenders
GTB-UHD600-HBT
GTB-UHD600-HBTL
User Manual
Version A2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTB-UHD600-HBT and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen GTB-UHD600-HBT

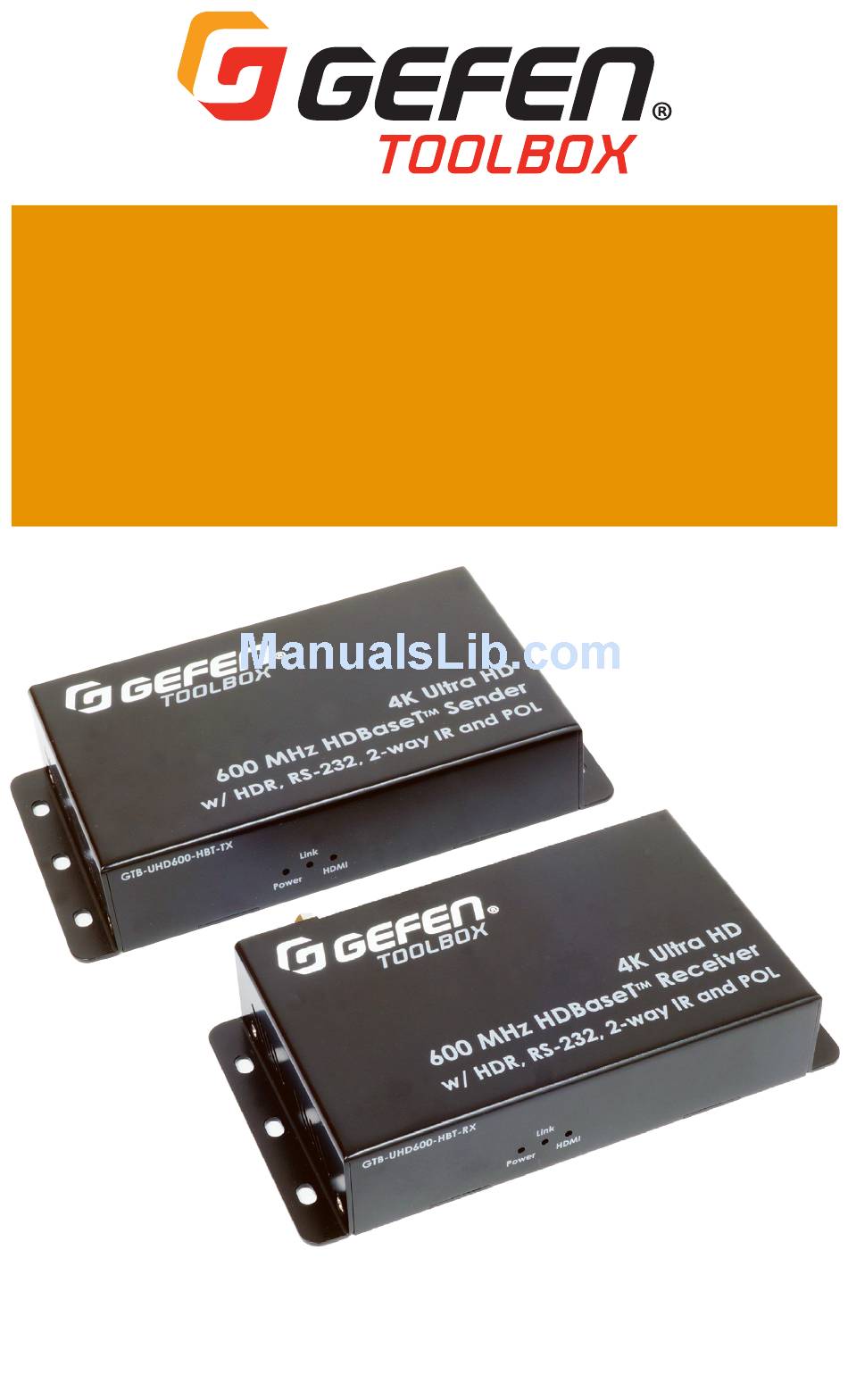

  • Page 1 4K Ultra HD 600 MHz HDBaseT™ Extenders GTB-UHD600-HBT GTB-UHD600-HBTL User Manual Version A2...
  • Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 Warranty Information For the latest warranty coverage information, refer to the Warranty and Return Policy under the Connect section of the Gefen website at http://www.gefen.com/connect/warranty-and- return-policy...
  • Page 4: Technical Support

    Petaluma, CA 94954 USA © 2017 Core Brands, LLC. All Rights Reserved. All trademarks are the property of their respective owners. Gefen and Core Brands, LLC reserve the right to make changes in the hardware, packaging, and any accompanying documentation without prior notice.
  • Page 5 However, Gefen and Core Brands, LLC assume no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen and Core Brands, LLC be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual.
  • Page 6 • IR extension from Sender to Receiver and from Receiver to Sender • Gefen’s Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable - only one side will need external power • Uses Gefen’s implementation of HDBaseT™ technology with proprietary algorithms and enhanced features •...
  • Page 7 • IR extension from Sender to Receiver and from Receiver to Sender • Gefen’s Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable - only one side will need external power • Uses Gefen’s implementation of HDBaseT™ technology with proprietary algorithms and enhanced features •...
  • Page 8 Packing List* (GTB-UHD600-HBT) The following items are included in the GTB-UHD600-HBT package. If any of these items are not present in the box when you first open it, please contact Gefen Technical Support as soon as possible. Sender Unit (GTB-UHD600-HBT-TX)
  • Page 9: Table Of Contents

    Controlling the Source from the Viewing Location .............23 Controlling the Display from the Source Location ..............24 Controlling the Source / Display from the Head-End and Viewing Locations ....25 DIP Switch Configuration .....................26 EDID Management .......................26 RS-232* ........................... 27 Firmware Update ......................28 Specifications ........................29 * GTB-UHD600-HBT only...
  • Page 10: Introduction

    Introduction GTB-UHD600-HBT Sender Unit GTB-UHD600-HBT-TX Link Power HDMI Link Tx Rx 12V DC IR In/Ext IR Out RS-232 Prog HDMI In...
  • Page 11 Link port on the Receiver unit. IR In/Ext 3.5mm mini-stereo jack. Connect an IR Extender (Gefen part no. EXT-RMT-EXTIRN) to this port. Alternatively, connect a 3.5mm mini-stereo connector from this port to the output of an automation system with an electrical IR output.
  • Page 12 Ultra HD source to this HDMI port. DIP Switches These DIP switches provide EDID management. See DIP Switch Configuration (page 26) for more information. Receiver Unit GTB-UHD600-HBT-RX Link Power HDMI Link Tx Rx 12V DC IR In/Ext IR Out...
  • Page 13 Link port on the Sender unit. IR In/Ext 3.5mm mini-stereo jack. Connect an IR Extender (Gefen part no. EXT-RMT-EXTIRN) to this port. Alternatively, connect a 3.5mm mini-stereo connector from this port to the output of an automation system with an electrical IR output.
  • Page 14 HDMI Out Use a Gefen Locking HDMI cable, up to 10 feet long, to connect an Ultra HD display to this HDMI port.
  • Page 15: Gtb-Uhd600-Hbtl

    Introduction GTB-UHD600-HBTL Sender Unit GTB-UHD600-HBTL-TX Link Power HDMI Link Tx Rx 12V DC IR In/Ext IR Out Syner-G™ Prog HDMI In...
  • Page 16 Link port on the Receiver unit. IR In/Ext 3.5mm mini-stereo jack. Connect an IR Extender (Gefen part no. EXT-RMT-EXTIRN) to this port. Alternatively, connect a 3.5mm mini-stereo connector from this port to the output of an automation system with an electrical IR output.
  • Page 17 Introduction Name Description Syner-G™ This port is used for firmware update using Gefen Syner-G™ Prog For normal operation, this switch should be in the Off (down) position. Setting this switch to the On (up) position, places the unit in firmware update mode. If either the Sender or the Receiver switch is in On position, extenders will not work.
  • Page 18 Link port on the Sender unit. IR In/Ext 3.5mm mini-stereo jack. Connect an IR Extender (Gefen part no. EXT-RMT-EXTIRN) to this port. Alternatively, connect a 3.5mm mini-stereo connector from this port to the output of an automation system with an electrical IR output.
  • Page 19 HDMI Out Use a Gefen Locking HDMI cable, up to 10 feet long, to connect an Ultra HD display to this HDMI port.
  • Page 20: Installation

    Refer to IR Control (page 23) for details on connecting IR devices. ► RS-232 (GTB-UHD600-HBT only) Connect Tx, Rx, and Ground from the RS-232 port of an automation control unit or a device-to-be-controlled, using the removable 3-pin “Captive Screw” Phoenix connector that is attached to the RS-232 ports of the Sender and Receiver units.
  • Page 21: Sample Wiring Diagrams

    4K Ultra HD 600 MHz Display GTB-UHD600-HBTL Notes 1. The wiring diagrams above show an additional IR emitter (Gefen part no. EXT-IREMIT) and IR extender (Gefen part no. EXT-RMT-EXTIRN) that are not included with the product. These are available for purchase from your Gefen distributor.
  • Page 22: Led Status

    LED Status The Power, Link, and HDMI LED indicators on the Sender and Receiver unit provide basic information on the current status of each unit. The information, in the table below, applies to both the Sender and Receiver unit. Power Description Solid blue •...
  • Page 23: Ir Control

    IR Control Controlling the Source from the Viewing Location Connect an EXT-RMT-EXTIRN IR Extender (1 pc included) to the IR In/Ext port on the Receiver unit. If using an automation system, connect the 3.5mm mini-stereo connector from the IR In/Ext port on the Receiver unit to the IR Output port of the automation system. IR signals will be transmitted over the Link cable.
  • Page 24: Controlling The Display From The Source Location

    IR Control Controlling the Display from the Source Location Connect an EXT-RMT-EXTIRN IR Extender (1 pc included) to the IR In/Ext port on the Sender unit. If using an automation system, connect the 3.5mm mini-stereo connector from the IR In/Ext port on the Receiver unit to the IR Output of the automation system. IR signals will be transmitted over the Link cable.
  • Page 25: Controlling The Source / Display From The Head-End And Viewing Locations

    IR Control Controlling the Source & Display from the Head-End and Viewing Locations This set-up ewill require an additional EXT-RMT-EXTIRN and EXT-IREMIT, sold separately by your Gefen distributor. Follow instructions on page 23 and 24. from Automation IR extender System...
  • Page 26: Dip Switch Configuration

    DIP Switch Configuration The Sender unit has 2 EDID Management DIP Switches on its bottom panel, under a self- adhesive cover. This product is shipped with its DIP switches set to enable 4K with 2-Channel Audio mode (SW1: OFF, SW2: ON). Refer to the table below for DIP switch settings.
  • Page 27: Rs-232

    RS-232* Connecting RS-232 Devices* The GTB-UHD600-HBT supports RS-232 extension. The RS-232 interface is also used to upgrade the firmware using the Gefen Syner-G™ software. Connect RS-232 Tx, Rx, and Ground from an automation control device to the removable 3-pin “Captive Screw” Phoenix connector that is attached to the RS-232 port of the Sender unit.
  • Page 28: Firmware Update

    If your PC or USB-to-Serial adaptor has a male DB-9 port and you prefer to not do the wiring, you can purchase an ADA-PH-2-DB9-MF-AB adaptor cable from your Gefen distributor. This adaptor cable has a female DB-9 on one end and a 3-pin Phoenix connector on the other.
  • Page 29: Specifications

    Link Connector (Sender / Receiver) • 1 x RJ-45, shielded RS-232 Connector (Sender / Receiver) • 1 x 3-pin Phoenix (GTB-UHD600-HBT only) Syner-G™ Connector (Sender / Receiver) • 1 x 3-pin Phoenix (GTB-UHD600-HBTL only) IR In/Ext Connector (Sender / Receiver) •...
  • Page 30 1800 S McDowell Blvd. Petaluma CA 94954, USA 1-707-283-5900 1-800-472-5555 Copyright© 2017 Core Brands, LLC.
