MD-3025/MD-3025-IVS

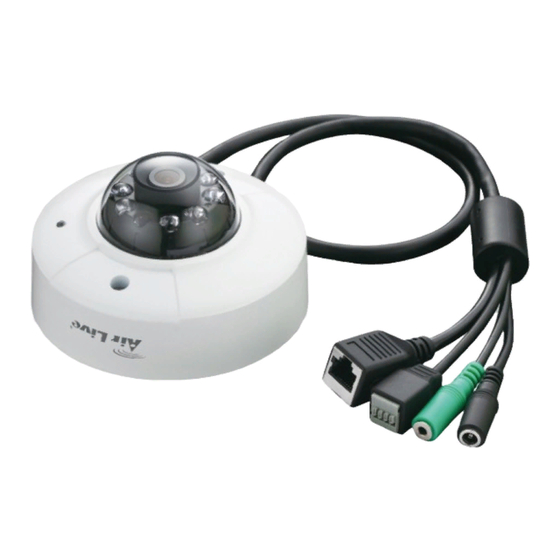

3-Megapixel IR Vandal Mini Dome
IPCAM /
3-Megapixel IR Vandal Mini Dome
IPCAM with Video Analytics
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-3025 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Air Live MD-3025

Summary of Contents for Air Live MD-3025

  • Page 1 MD-3025/MD-3025-IVS 3-Megapixel IR Vandal Mini Dome IPCAM / 3-Megapixel IR Vandal Mini Dome IPCAM with Video Analytics User’s Manual...
  • Page 2 This product contains some codes from GPL. In compliance with GPL agreement, AirLive will publish the GPL codes on our website. Please go to www.airlive.com and go to the "Support->GPL" menu to download source code. All Trademarks are properties of their respective holders. AirLive MD-3025 User’s Manual...
  • Page 3 The lists of entities entitled to receive used equipment can be found on the websites of municipalities. Some components of devices such as external wiring, circuit boards and liquid crystal displays have a negative impact on the environment. AirLive MD-3025 User’s Manual...

  • Page 4: Table Of Contents

    5. Operating the Network Camera ..............18 5.1 Live View....................18 5.2 Configuration ..................20 6. Configuration ...................21 6.1 Network....................22 6.2 Video....................29 6.3 Audio....................36 6.4 Event....................37 6.5 Storage ....................43 6.6 System....................45 6.7 Status ....................51 7. Appendix....................53 A. Video Analytics (Only for MD-3025-IVS) ..........53 AirLive MD-3025 User’s Manual...

  • Page 5: Overview

    Users are able to view live video streaming over the Internet, and it is not only one of benefits for using AirLive MD-3025/MD-3025-IVS IP cameras. It is also designed to offer high-performance surveillance by being equipped with PoE switch which allows power and data to be transmitted via a single Ethernet cable.

  • Page 6: Features

    MicroSD Card Slot for Local Storage Built-in MIC, Two-Way Audio, DI/DO Clear Motion Technology for Moving Objects WDR Enhanced Compatible with ONVIF Standard Built-in Video Analytics (Equipped only for MD-3025-IVS) Free 64-Channel Recording Software 1.3 Product Specification Model MD-3025/MD-3025-IVS Camera...
  • Page 7 Privacy Masks Text, time and date OSD Digital Zoom Audio Encoder G.711 / AMR (Only for 3GPP) Audio Audio Streaming Two-way Audio Input/Output Built-in microphone, 1 Line out Network Ethernet Ethernet (10/100 Base-T), RJ-45 IEEE802.3af Wireless None AirLive MD-3025 User’s Manual...
  • Page 8 Search & Installation-IP Wizard II MD-3025: Motion detection, External input via DI interface, Tamper detection. MD-3025-IVS: Event Triggers Motion Detection, External input via DI interface, Tamper detection, Face Detection, iMotion Detection, Trip Zone, Object Counting, Face recognition, e-Fence. AirLive MD-3025 User’s Manual...
  • Page 9 Internet Explorer 7 or later; Apple Browser Safari 2 or above; Firefox 2.00 or above; Google Chrome Viewing System With 3GPP player, CamPro Mobile for iOS/Android Device iOS/Android device VLC, Quick Time, Real Player, Core Video Player Player AirLive MD-3025 User’s Manual...

  • Page 10: System Requirement

    Internet Explorer 7 or later; Apple Safari 2 or above; Firefox Web Browser 2.00 or above; Google Chrome Note: Please keep updating the latest Windows software and service package. (Ex: Net Framework, Windows Media Player, Enhance ActiveX Security) AirLive MD-3025 User’s Manual...

  • Page 11: Package Contents And Installation

    Connector There are various connectors of AirLive MD-3025/MD-3025-IVS as shown in the figures below. Please refer to the diagrams and tables for using of each connector. AirLive MD-3025 User’s Manual...
  • Page 12 Please use Category 5 cable to connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub. 3. Alarm Digital I/O: AirLive MD-3025/MD-3025-IVS supports 2 digital alarm inputs and 1 digital alarm output. AirLive MD-3025 User’s Manual...
  • Page 13 6. MicroSD Card Slot: MicroSD Card Slot allows you to insert a memory card for expansion of storage. 7. Reset Button: This button is used to restore all the factory default settings. Sometimes, restarting the device will make the system back to a normal state. AirLive MD-3025 User’s Manual...

  • Page 14: Mounting The Camera

    - Insert the camera body into the hole so that it fits to the camera hole, and fix the body using the ASSY tapping screws. - Refer to “Adjusting the monitoring direction for the camera” to adjust the lens in a desired direction. - Close the top cover. AirLive MD-3025 User’s Manual...
  • Page 15 Rotation. After installing the camera, adjust the panning angle in consideration of the monitoring direction. When tilting the camera, you should adjust the horizontal angle lest that the image be displayed reversely. AirLive MD-3025 User’s Manual...

  • Page 16: Connect To Ip Camera

    Adjust the tilt angle and let the camera faces toward the monitoring object. 2.4 Connect to IP Camera 1. Insert the bundled CD into your PC/Laptop. 2. Auto Run screen shows up, click “Install Software AirLive IP Wizard II” to install the configuration tool. AirLive MD-3025 User’s Manual...
  • Page 17 2. Package Contents and Installation 3. After completed the installation, run the “Air Live IP Wizard II” to start to search the IP camera. 4. The entire detected IP camera will be listed out. 5. If the Camera’s IP address is in the same IP segment as your LAN, select the founded IP Camera and double click on the item.

  • Page 18: Using Ip Camera Via Web Browser

    You can change them in the Account Menu. (Please check “System → Account”) 3. The monitor image will be displayed in your browser. In the left side of main window, you can configure the settings you want. For more details, please refer to the following chapters. AirLive MD-3025 User’s Manual...

  • Page 19: Operating Ip Camera Via Ios/Android Device

    You can access into your IP camera via the iOS/Android device. Please follow the setup steps below. 1. Download AirLive CamPro Mobile 2. Execute the AirLive CamPro Mobile program from APP store/Android market. 3. Click Setup button. 4. Setup page appears AirLive MD-3025 User’s Manual...
  • Page 20 4. Operating IP Camera via iOS/Android Device 5. Click Add button 6. Click LAN button and select the camera.           AirLive MD-3025 User’s Manual...
  • Page 21 OK button. appear on the page. 9. Click Live View button. 10. The video appears on the main screen. Note: The image is continuous snapshots, not video. Thus, live image can’t be recorded here. AirLive MD-3025 User’s Manual...

  • Page 22: Operating The Network Camera

    3. View Options: The device supports multi-profile function for H.264, MPEG4 and JPEG simultaneously. User can choose the proper and/or preferred profile which is listed here. 4. Language: AirLive MD-3025/MD-3025-IVS provide multiple languages to meet customer’s requirement. 5. Digital Output: Switch digital output interface on or off.
  • Page 23 Original size / Preview Size: Switches live image view between original size and preview size (smaller size). Digital Zoom: From 1X to 10X. Click to full screen first. Click to enable this function. Click to disable it. AirLive MD-3025 User’s Manual...

  • Page 24: Configuration

    Record: Click it to start recording an AVI file in local storage. Press to stop the recording process. 5.2 Configuration Click “Configuration” for the camera detail settings. For more information, please refer to Chapter 6. AirLive MD-3025 User’s Manual...

  • Page 25: Configuration

    6. Configuration Configuration Click the “Configuration” to display sub-menus included Network / Video / Audio / Event / Storage / System / Status / Video Analytics. Note: Video Analytics function is only for MD-3025-IVS. AirLive MD-3025 User’s Manual...

  • Page 26: Network

    6. Configuration 6.1 Network General AirLive MD-3025 User’s Manual...
  • Page 27 Enable Multicast: Select this option to enable the multicast function of the camera. Complete the following settings so that you can deliver information from your camera to multi receivers. - Multicast Group Address: Assign a category of IP addresses to receive the information from the camera. AirLive MD-3025 User’s Manual...
  • Page 28 To set up the DDNS, select the Provider from the pull-down menu and then enter the required information in the Host Name, User Name and Password text boxes. Note: You have to sign up for DDNS service with the service provider before configuring this feature. AirLive MD-3025 User’s Manual...
  • Page 29 - Video DSCP: Assign the DSCP (DiffServ Code Point) of the stream video from the camera by setting the value from 0 to 63. - Audio DSCP: Assign the DSCP (DiffServ Code Point) of the stream audio from the camera by setting the value from 0 to 63. AirLive MD-3025 User’s Manual...
  • Page 30 Add, the user whose IP address located within the range will not be allowed to access into the camera. To remove the assigned range of IP addresses for IP Filter, select the setting in the Accept/Deny IP List and then click Delete. AirLive MD-3025 User’s Manual...
  • Page 31 URL: Type the server name or the IP address of the HTTP server. HTTP Port: Change it only when needed. HTTP Login name: Type the user name for the HTTP server. HTTP Login Password: Type the password for the HTTP server. AirLive MD-3025 User’s Manual...
  • Page 32 6. Configuration iSCSI Enable the iSCSI and key-in server IP address and Port number. The disk of the server will be the storage in IP camera setting. AirLive MD-3025 User’s Manual...

  • Page 33: Video

    Intelligent Analysis Mode: You can select Enable or Disable to switch the IVS function. Note: This item will appear on MD-3025-IVS Main Stream & Second Stream: It enables the encoder to deliver two totally independent streams of video, separately configured for different frame rates and video resolutions.
  • Page 34 If you use a mobile phone that supports 3GPP, you can also view the real-time streaming image captured by the camera on your phone (with the default player on the phone) by entering the RTSP link: AirLive MD-3025 User’s Manual...
  • Page 35 ‐ Mode: There are three modes (Indoor / Outdoor / Auto) to fit your environment ‐ Auto White Balance: You can enable or disable the function. ‐ IR-Cut: The camera can automatically or manually remove the IR-cut filter to let IR light into the sensor during low light conditions. AirLive MD-3025 User’s Manual...
  • Page 36 The camera switches off the IR cut filter at all times for the sensor to accept infrared light. Schedule: The camera switches between day mode and night mode based on a specified schedule. Enter the start and end time for day mode. ‐ ICR Delay Time: Select from 5s to 30s. AirLive MD-3025 User’s Manual...
  • Page 37 Brightness: Adjust the brightness level from 0~255. Contrast: Adjust the contrast level from 0~255. Saturation: Adjust the colors level from 0~255. Sharpness: Adjust the sharpness level from 0~255. Click Default to restore the default value. Others: AirLive MD-3025 User’s Manual...
  • Page 38 Advance: Digital Noise Reduction: A digital filter designed to reduce visible noise for improving visibility of images. Fog Compensation: Improve visibility of images in fog or smoke by using the Fog compensation function. AirLive MD-3025 User’s Manual...
  • Page 39 When you select User Define Image, you can click Browse to select the image file from your computer and then click Update to apply the setting. Note: JPG/JPEG file with maximum 65536 bytes. AirLive MD-3025 User’s Manual...

  • Page 40: Audio

    Enable Speaker: Select the option to enable the camera’s audio out function, so that the connected speaker can play the sound and voice through the camera. 3. Recording File: During an event action, you can upload one audio file in WAV (mono, 8KHZ, <100KB in size) for playback. AirLive MD-3025 User’s Manual...

  • Page 41: Event

    - User Name: Enter the user name to login into the FTP server. - Password: Enter the password to login into the FTP server - File Path Name: Enter the port number used for the FTP server. AirLive MD-3025 User’s Manual...
  • Page 42 TCP Server: Select “Enable” to enable the TCP Server function. - TCP Server Address: Enter the TCP server address. - TCP Port: 80. Revise it only needed. - Message: Enter the message here. - Test TCP: Click to test the TCP server function. AirLive MD-3025 User’s Manual...
  • Page 43 - Login Password: Enter the login password of the HTTP server. - Message: Enter the message here. - Test HTTP: Click to test the HTTP server function. 2. Event Schedule Click “Add” for more detail settings. AirLive MD-3025 User’s Manual...
  • Page 44 - Enable FTP: The camera will upload the attachment to FTP when triggered. - Enable EMAIL: The camera will send the attachment to the assigned receiver when triggered. - Enable Samba: The camera will transfer the attachment to the network storage when triggered. AirLive MD-3025 User’s Manual...
  • Page 45 The Motion Detection option contains the commands and settings that allow you to enable and set up the motion detection feature of the camera. The camera provides three detecting areas. Follow the steps below to set up the Motion Detection function for the camera: Select Enable Motion Detection. AirLive MD-3025 User’s Manual...
  • Page 46 The higher the sensitivity, detects the minutest tampering attempts. Select Reset Time. Once a tampering is detected, the camera will resume a normal operating after a certain stability time (Reset Time) during which no detection will be performed. AirLive MD-3025 User’s Manual...

  • Page 47: Storage

    - Maximum Size of Each File: This option allows you to limit the file size to be uploaded to the server. - Timestamp: Select this option to add the date & time information on the attachment. AirLive MD-3025 User’s Manual...
  • Page 48 When done, click Apply to save the settings. 2. Recording List This page shows the files list information. User may play or delete the selected file. Note: Please remember to insert a SD card before you start to use this function. AirLive MD-3025 User’s Manual...

  • Page 49: System

    6. Configuration 6.6 System The System menu contains sub-menus as below. When completed, click Apply to save the settings. AirLive MD-3025 User’s Manual...
  • Page 50 Update Interval. - Manual: Select this option to set the date and time manually. - Synchronize with PC: Select this option and the date & time settings of the camera will be synchronized with the connected computer. AirLive MD-3025 User’s Manual...
  • Page 51 - User Name/Password/Confirm Password: Enter the user’s name you want to add to use the camera. Then, enter the password twice for the new user. When done, click Add to add the new user for the camera. AirLive MD-3025 User’s Manual...
  • Page 52 HTTPS: Select the Enable HTTPS option to enable HTTPS which is a secure protocol to provide authenticated and encrypted communication within your network. - HTTPS Port: Assign a HTTPS port in the text box. The default HTTPS port is 443. AirLive MD-3025 User’s Manual...
  • Page 53 Be aware that you should not turn off the power during updating the firmware and wait for finish message. Furthermore, the firmware upgrade procedure always is risk and do not try to upgrade new firmware if it’s not necessary. AirLive MD-3025 User’s Manual...
  • Page 54 Backup: Click the button to save the current configuration of the camera. Backup to SD CARD Device: Click to save the configuration file to SD card. Configuration Restore: lick Browse to locate the backup file on your PC and then click Restore. AirLive MD-3025 User’s Manual...

  • Page 55: Status

    The Status menu shows the current status of the camera, including the basic information, audio/video settings, networking configuration, and system logs. 1. Basic It provides the basic information as above. 2. Audio/Video It provides the information including H.264/MJPEG/Mobile View/Audio as below. AirLive MD-3025 User’s Manual...
  • Page 56 6. Configuration 3. Network: It provides the information including IP/LAN as below. 4. System Log: It provides the log information as below. Enable remote log: Enter the IP address to enable the remote log function. AirLive MD-3025 User’s Manual...

  • Page 57: Appendix

    7. Appendix Appendix A. Video Analytics (Only for MD-3025-IVS) MD-3025-IVS provides multiple intelligent video analytics that helps you to save your human resources and reach the goal of automatic surveillance. Please go to Configuration Video Analytics to experience the entire IVS function.
  • Page 58 You can save up to 10 face images to the AirLive MD-3025-IVS for recognition, so when the camera catch the face which match the database, the camera will trigger related output devices by necessary reaction.
  • Page 59 Register function supports memorizing up to 10 results of face recognition into the database. Also you can select to edit the database, backup to or restore from the SD card device. Edit Users Database: You can edit the registered database here. (See below) AirLive MD-3025 User’s Manual...
  • Page 60 Objects must move and stay within the boundary for at least 100 ms. Select Sensitivity to set the detection sensitivity level. Higher sensitivity will make it easier to detect and less objects missing, but more misjudgments. Select People / Vehicles / Anything as the detected objects. AirLive MD-3025 User’s Manual...
  • Page 61 It can be set to detect one direction or both directions. It is very useful to some surveillance environments like walls, railroad platform, parking lot entrance or any intersection where needs to monitor the “Against Traffic”. AirLive MD-3025 User’s Manual...
  • Page 62 You may choose one way or two way directions for counting. The numbers can be displayed on screen and saved to the database. It is also useful to calculate the amount of traffic flow on the highway. AirLive MD-3025 User’s Manual...
  • Page 63 This function can be used in many applications, either as a standalone protection system or other protection systems such as airports, power plants, radio towers or even military camps. AirLive MD-3025 User’s Manual...
  • Page 64 15 points at most can be used in each zone. Select Delete Zone/All to delete the zones. Select Enable/Disable to allow the trigger or not. Statistics Chart Display: Here will show the result of e-Fence. AirLive MD-3025 User’s Manual...
