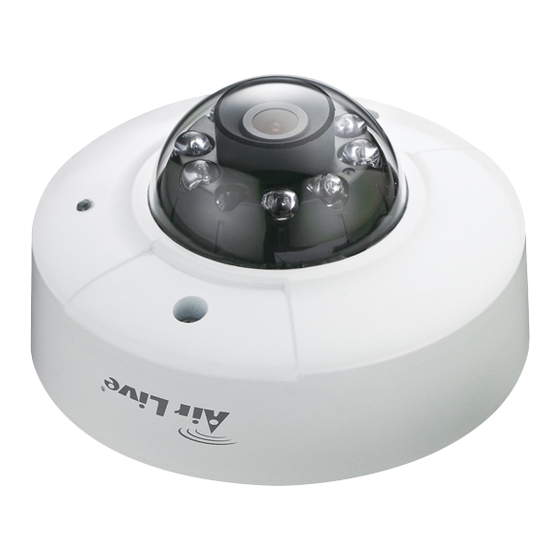

MD-3025-IVS
Trip Zone Guide
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD-3025-IVS and is the answer not in the manual?

Questions and answers

Related Manuals for Air Live MD-3025-IVS

Summary of Contents for Air Live MD-3025-IVS

  • Page 1 MD-3025-IVS Trip Zone Guide Version 1.0...
  • Page 2 Trip Zone Guide 1. Overview The MD-3025-IVS has built-in video analytic function for Trip Zone. It is a standalone function built into the camera’s firmware without the need for external software or device. The Trip Zone function can be used to detect people or vehicles crossing the restricted area or boundary.

  • Page 3: Hardware Installation Guidelines

    MD-3025-IVS Trip Zone Setup Guide 2. Hardware Installation Guidelines  The followings are basic installation guidelines for best Trip Zone function. However, if your environment cannot meet the recommended conditions, it can still work with reasonable accuracy. 1. Make sure the appropriate viewing angle.
  • Page 4 MD-3025-IVS Trip Zone Setup Guide ․For vehicles, camera can be installed from right above the area to 45 degrees oblique angle. ․For 45 degrees angle, you can choose a horizontal or vertical detection. 2. Make sure the appropriate camera height (distance).

  • Page 5: Camera Configuration

    MD-3025-IVS Trip Zone Setup Guide 3. Camera Configuration 3.1 Finding camera using AirLive IP Wizard The IPCAM default IP address is 192.168.1.100，but this address can change when there is DHCP server(router) in your network. Therefore, please install AirLive IP wizard to find your camera.
  • Page 6 MD-3025-IVS Trip Zone Setup Guide 1. Click on “Configurations” on left menu bar 2. Click on “Video” on the left menu bar and select “enable” Intelligent Video Analytics. 3.3 Setting Resolution and Frame Rate On the video page, it is important to set the resolution and frame rate correctly.
  • Page 7 MD-3025-IVS Trip Zone Setup Guide 3.4 Configure Trip Zone Function Please go to “Video Analytics” menu and select “Trip Zone”. Below is the main page of Trip Zone. Zone Settings Zone Area Please remember to press “Apply” after change settings, otherwise the settings won’t take effect.
  • Page 8 MD-3025-IVS Trip Zone Setup Guide Zone Settings  Rotate Mode: this is the default mode. When you click inside the “Zone Area”, you can rotate, move, and resize the zone by holding the “change points”. Click inside the zones to...
  • Page 9 MD-3025-IVS Trip Zone Setup Guide ※ Please enlarge the Zone 1 and Zone 2 as big as possible. The bigger zone is more accuracy. Zone size is big. Zone size is too small. ※ Please extend the length of the moving path as long as possible.
  • Page 10 MD-3025-IVS Trip Zone Setup Guide ※ If the wrong way direction is from Zone 1 to Zone 2, user can set bigger Zone 1 to increase the accuracy. Zone 1 size is bigger After you set the zone area correctly, the next step is to calibrate the object size according to your installation.
  • Page 11 MD-3025-IVS Trip Zone Setup Guide Other Important Settings  Detect: Please choose “People” or “Vehicles” based on your detection environment.  Statistic Chart Display: When enabled, it will show the result in a statistic graph. It is not recommended to turn on this function as it might use a lot of CPU resource which can influence the performance.
  • Page 12 MD-3025-IVS Trip Zone Setup Guide 3. Now, please click on “Set Event Action”. Click on “Add”. Then the following screen will appear. Please enter the data as shown below. Please remember to click on “Save” after finish settings. Note: The Event Name does not allow spaces in between words. Please enter the...
