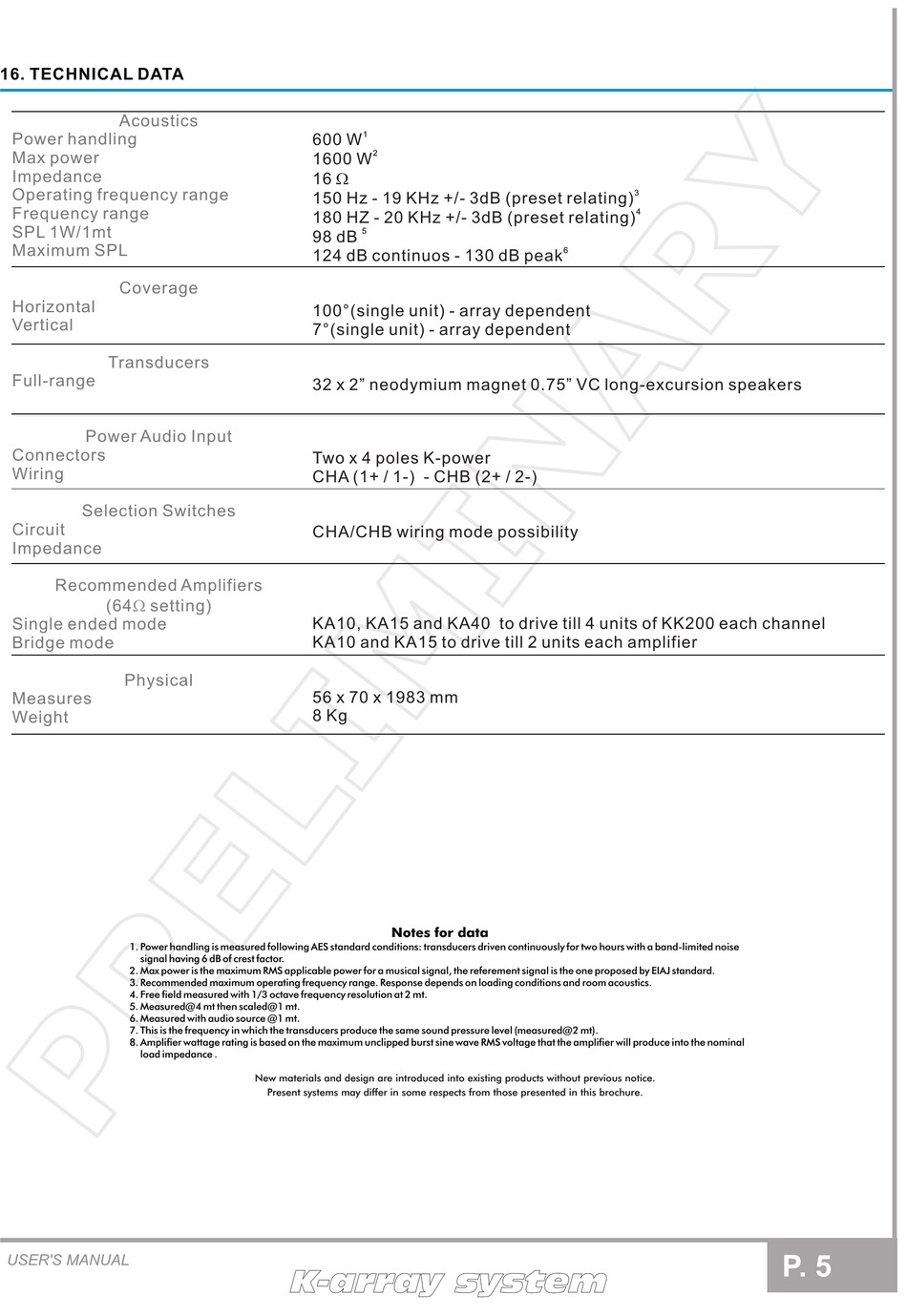

16. TECHNICAL DATA

Acoustics
Power handling
Max power
Impedance
Operating frequency range
Frequency range
SPL 1W/1mt
Maximum SPL
Coverage
Horizontal
Vertical
Transducers
Full-range
Power Audio Input
Connectors
Wiring
Selection Switches
Circuit
Impedance
Recommended Amplifiers
(64 setting)
W
Single ended mode
Bridge mode
Physical
Measures
Weight
1. Power handling is measured following AES standard conditions: transducers driven continuously for two hours with a band-limited noise
signal having 6 dB of crest factor.
2. Max power is the maximum RMS applicable power for a musical signal, the referement signal is the one proposed by EIAJ standard.
3. Recommended maximum operating frequency range. Response depends on loading conditions and room acoustics.
4. Free field measured with 1/3 octave frequency resolution at 2 mt.
5. Measured@4 mt then scaled@1 mt.
6. Measured with audio source @1 mt.
7. This is the frequency in which the transducers produce the same sound pressure level (measured@2 mt).
8. Amplifier wattage rating is based on the maximum unclipped burst sine wave RMS voltage that the amplifier will produce into the nominal
load impedance .
USER'S MANUAL
1
600 W
2
1600 W
16
W
150 Hz - 19 KHz +/- 3dB (preset relating)
180 HZ - 20 KHz +/- 3dB (preset relating)
5
98 dB
124 dB continuos - 130 dB peak
100°(single unit) - array dependent
7°(single unit) - array dependent
32 x 2" neodymium magnet 0.75" VC long-excursion speakers
Two x 4 poles K-power
CHA (1+ / 1-) - CHB (2+ / 2-)
CHA/CHB wiring mode possibility
KA10, KA15 and KA40 to drive till 4 units of KK200 each channel
KA10 and KA15 to drive till 2 units each amplifier
56 x 70 x 1983 mm
8 Kg
