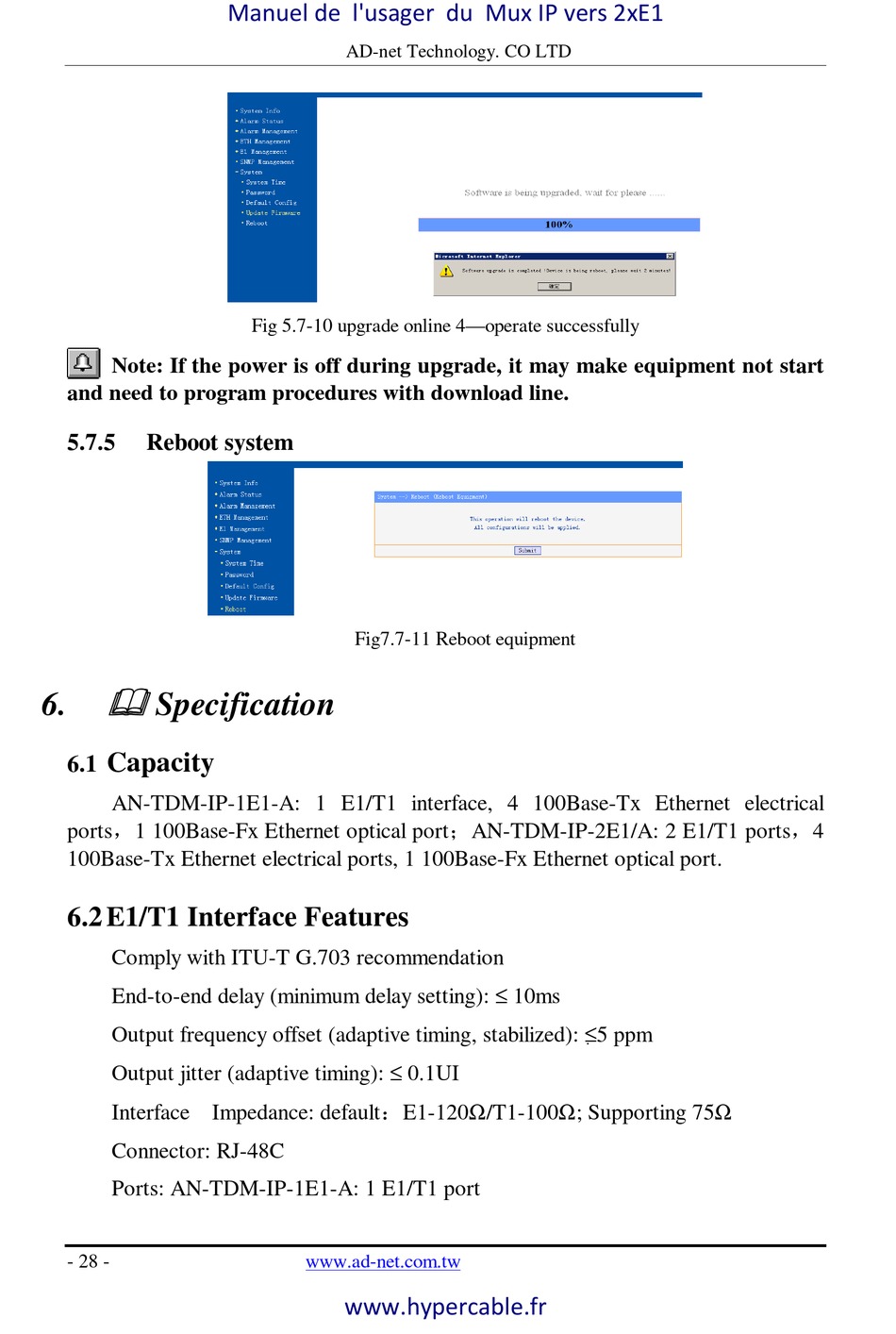

Note: If the power is off during upgrade, it may make equipment not start
and need to program procedures with download line.
5.7.5

Reboot system

6.

Specification

Capacity

6.1
AN-TDM-IP-1E1-A: 1 E1/T1 interface, 4 100Base-Tx Ethernet electrical
ports，1 100Base-Fx Ethernet optical port；AN-TDM-IP-2E1/A: 2 E1/T1 ports，4
100Base-Tx Ethernet electrical ports, 1 100Base-Fx Ethernet optical port.

6.2 E1/T1 Interface Features

Comply with ITU-T G.703 recommendation
End-to-end delay (minimum delay setting): ≤ 10ms
Output frequency offset (adaptive timing, stabilized): ≤ 5 ppm
Output jitter (adaptive timing): ≤ 0.1UI
Interface Impedance: default：E1-120Ω/T1-100Ω; Supporting 75Ω
Connector: RJ-48C
Ports: AN-TDM-IP-1E1-A: 1 E1/T1 port
- 28 -
Manuel de l'usager du Mux IP vers 2xE1
AD-net Technology. CO LTD
Fig 5.7-10 upgrade online 4—operate successfully
Fig7.7-11 Reboot equipment
