Management
5.4.3 VLAN
Two uplink Ethernet electrical interfaces support 1+1 protection. After enabling
1+1 protect, equipment configure Q in Q VLAN automatically and user only need to
configure VID of uplink Ethernet electrical interface and monitoring port. As shown
in Fig 5.4-5 and Fig 5.4.6.

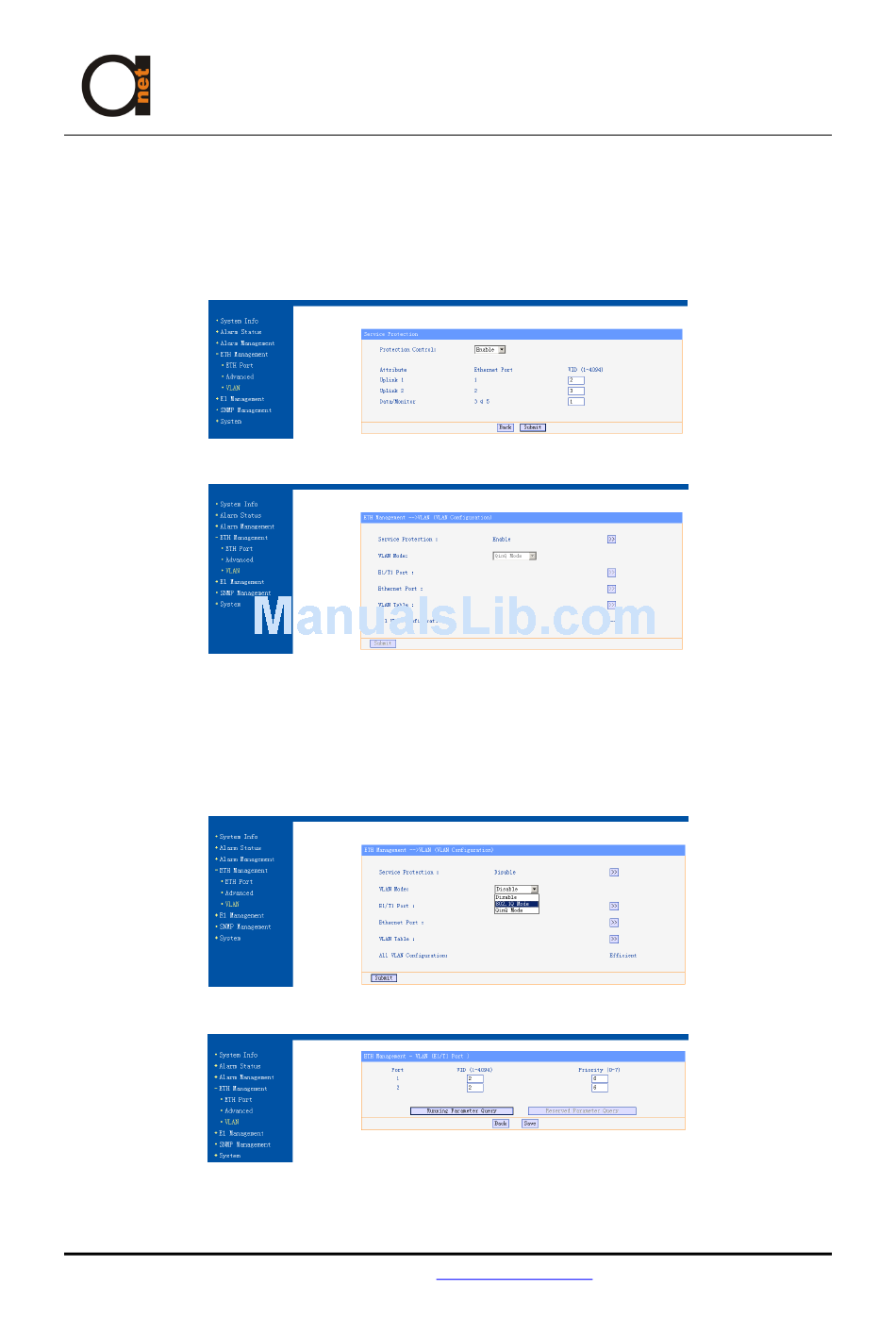

Fig 5.4-5 uplink 1+1 protect configuration
Fig 5.4-6 configure Q in Q VLAN automatically
AN-TDM-IP-1E1/2E1-A Ethernet supports 802.1 Q VLAN and Q in Q
VLAN. 802.1Q VLAN is that adding the VLAN tag in front of Ethernet frame type.
Q in Q VLAN is that nesting the VLAN (S-Tag) of operators in 802.1Q outer layer
to enable the VLAN stacking.
VLAN management parameters are shown in Table 5.4-3.
Fig 5.4-7 VLAN management 1—VALN configuration
Fig 5.4-8 VLAN management 2—E1 port configuration
- 19-
