Section 2 –
Installation Methods
Mounting the
Thermostat
Install the thermostat on an
interior wall of the desired zone,
approximately 5 feet (1.5 meters)
above the floor. Do not mount the
thermostat in a location that may
be affected by heat sources or cold
drafts. If necessary, install a draft
barrier behind the control to prevent
air from blowing through the wiring
hole and affecting the control's
built-in sensor.
Avoid mounting the thermostat
in the following locations:
• Near or around windows
• On outside walls
• Near fireplaces
• In the corner of a room
• Behind doors
• Near dimming switches
• On interior walls susceptible
to solar gains
• Near stoves, lamps, televisions,
computer monitors, etc.
• In damp or humid areas
Surface Mount
The following steps outline how to
mount the surface-mount thermostat.
1. Locate an area to mount the
thermostat.
2. Place case back on the wall and
mark areas for the screw and
connector holes with a pencil.
Uponor Climate Co ˘ ntrol™ Network System Thermostat Installation and Operation Guide

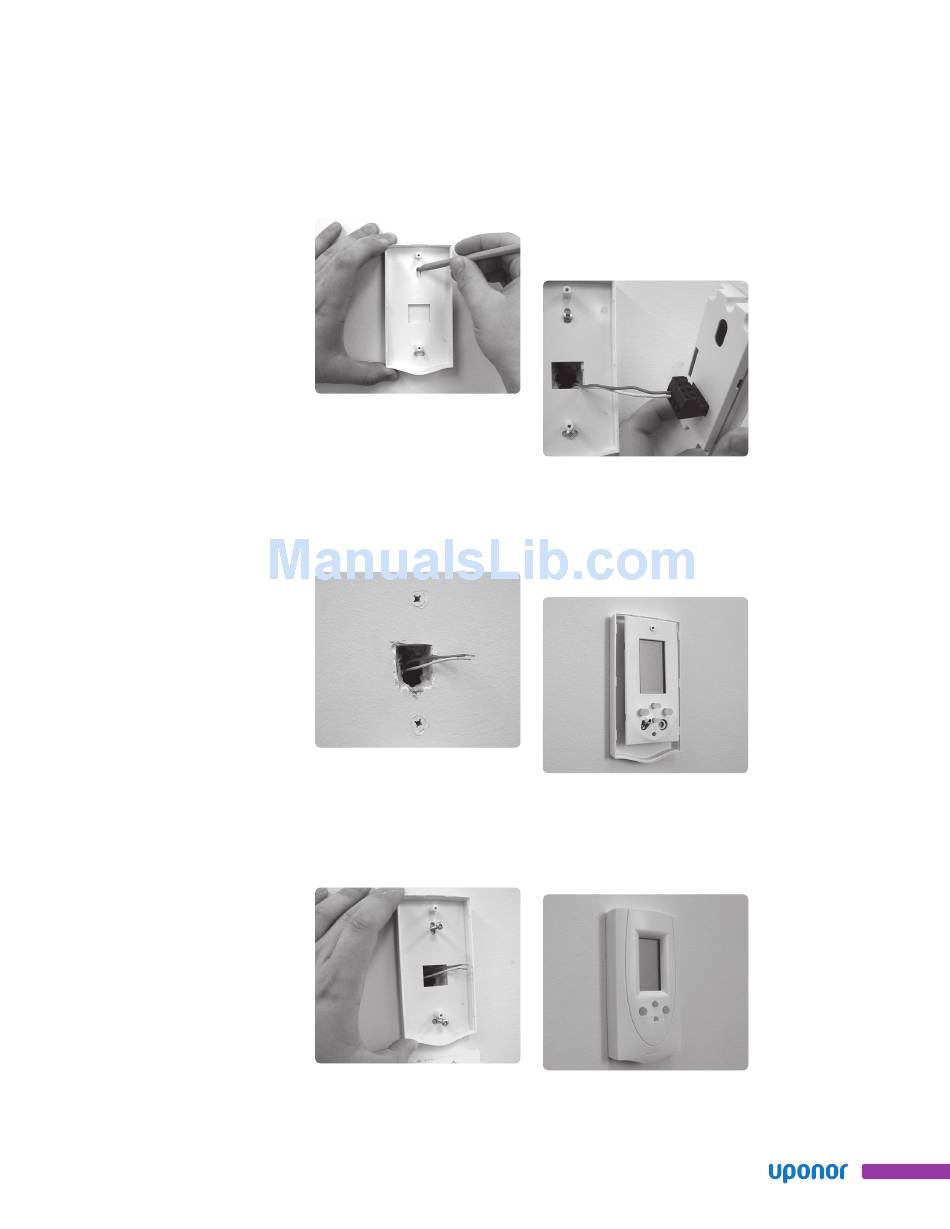

Figure 2-1: Case back of
thermostat being mounted
on wall
3. Insert drywall anchors into the
wall at the marked locations
and cut out a hole in the wall to
receive the main connector.
Figure 2-2: Inserting
drywall anchors
4. Using appropriate screws (not
included), attach the case back
to the drywall anchors.
Figure 2-3: Case back of
thermostat procedure
5. Wire the thermostat. Refer to
Section 2: Wiring the Thermostat
and Section 4: Wiring Diagram.
Figure 2-4: Wiring
thermostat procedure
6. Use the supplied #4 screws to
mount the thermostat into the
case back.
Figure 2-5: Mount
thermostat procedure
7. Snap the case front into place
on the case back.
Figure 2-6: Mount
thermostat procedure
7
