Figure 3-8
3. Use the + and − buttons to
toggle between the different
air water temperature channels
(0 to 5).
Setting the Air Water
Zone Pump
To set the air water zone pump
(e.g., a pump for a hydronic heating
system), use the following procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle eight times. The
display will look like this:

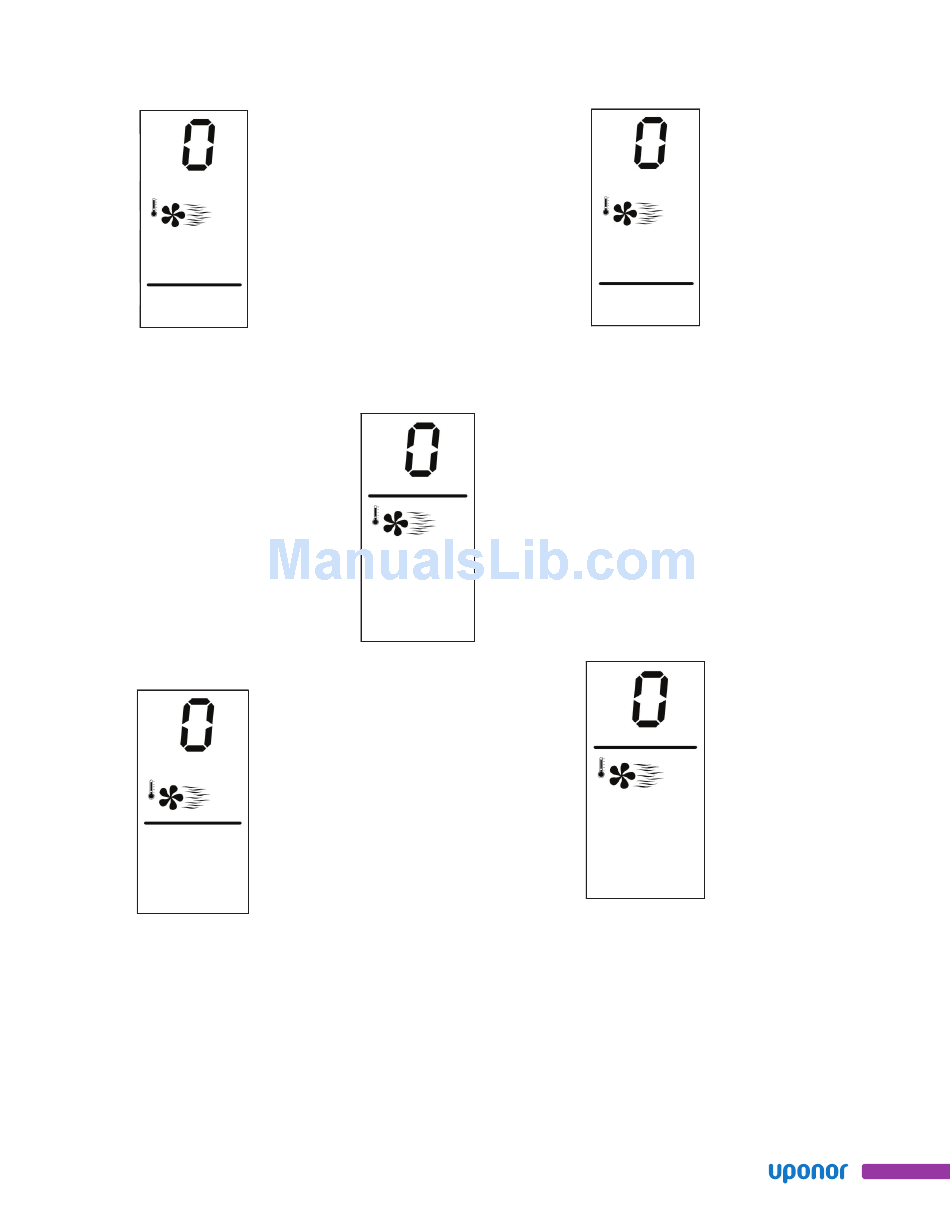

Figure 3-9
Uponor Climate Co ˘ ntrol™ Network System Thermostat Installation and Operation Guide
3. Use the + and – buttons to toggle
between the different air water
zone pumps (0 to 16, with 0
indicating no water pump used).
Setting the Air
Water Zone Valve
To set the air water zone valve (a
valve controlling flow to a hydronic
heating system), use the following
procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle nine times. The
display will look like this:
Figure 3-10
3. Use the + and − buttons to toggle
between the different air water
zone valves (0 to 16, with 0
indicating no air water valve used).
Setting the Air
Damper Number
To set the air damper number, use
the following procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle 10 times. The display
will look like this:
Figure 3-11
3. Use the + and − buttons to
toggle between the different
dampers (0 to 16, with 0
indicating no damper used).
Setting the Air
Handler Number
To set the air handler number, use
the following procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle 11 times. The display
will look like this:
Figure 3-12
3. Use the + and − buttons to
toggle between the different air
handler numbers (0 to 4, with 0
indicating no air handler used).
