Setting the Radiant
Heating Water
Temperature Channel
To set the Water Temperature Channel
for radiant floor heating, use the
following procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle three times, and the
radiant heating icon will appear.

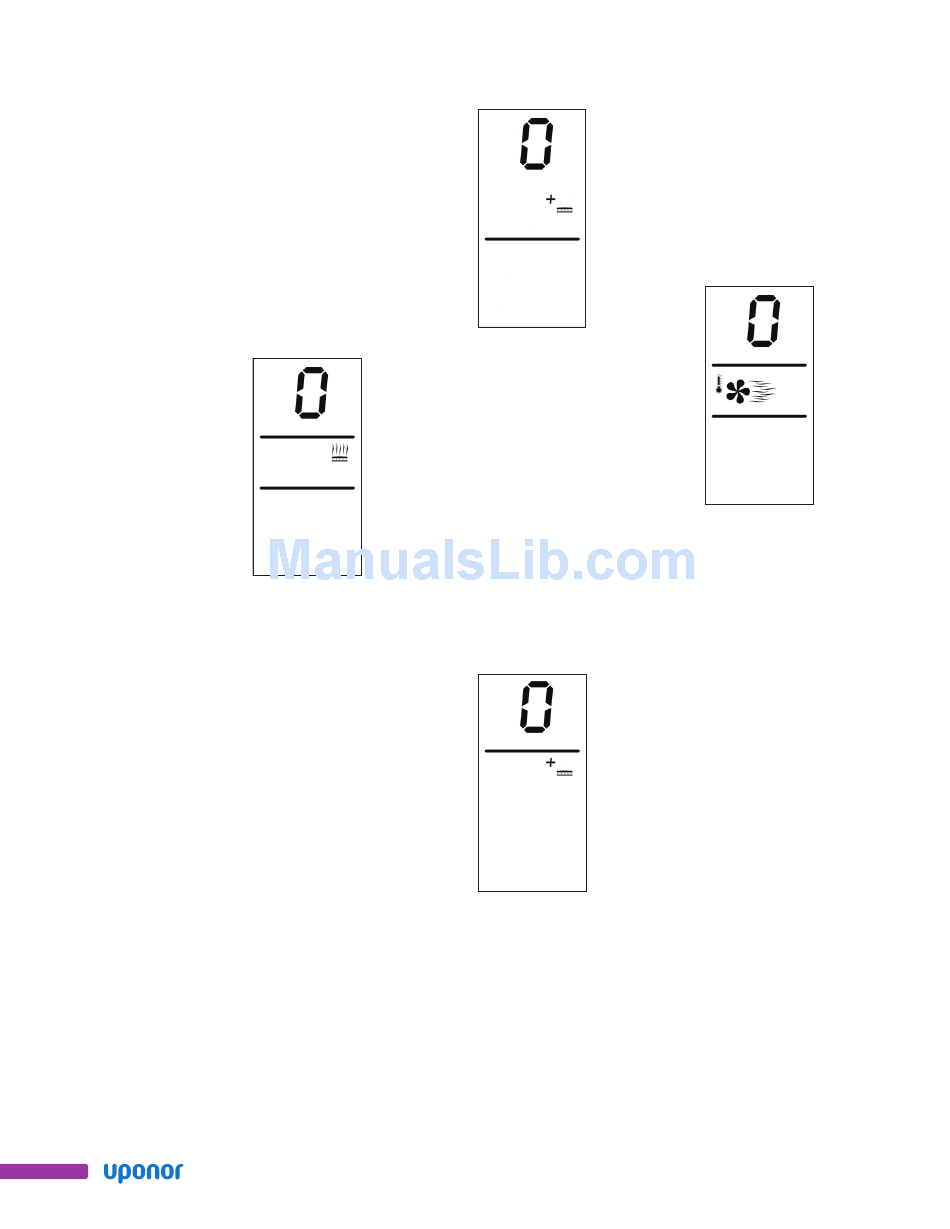

The display will look like this:
3. Use the + and − buttons to
choose the Water Temperature
Channel that the thermostat
controls (0 indicates no Water
Temperature Channel).
Setting the Zone Pump
for Thermostat Control
To set which zone pump the thermostat
controls, use the following procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle four times. The
display will look like this.
12
3. Use the + and − buttons to
Setting the Zone Valve
for Thermostat Control
To set which zone valve the thermostat
controls, use the following procedure.
1. Press both the mode and cycle
Figure 3-4
2. Press cycle five times. The
3. Use the + and − buttons to
Figure 3-5
toggle between the different
zone pumps (0 to 16, with 0
indicating no zone pump).
buttons at the same time.
display will look like this:
Figure 3-6
toggle between the different
valves (0 to 16, with 0
indicating no zone valve).

Setting the Air Zone

To set the thermostat's air zone, use
the following procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle six times. The
display will look like this:
Figure 3-7
3. Use the + and − buttons to
toggle between the different air
zones (0 to 5, with 0 indicating
no air zone).
Setting the Air Water
Temperature Channel
Air water temperatures are controlled
by selecting the desired air water
channel. There are six optional
channels (0 – 5), with 0 indicating
no air water temperature and 5
indicating the highest temperature.
To set the air water temperature
channel for use with hot-water coils,
use the following procedure.
1. Press both the mode and cycle
buttons at the same time.
2. Press cycle seven times. The
display will look like this:
